Home > All Products > Breakout Board Module > USB Breakout Board, USB Interface Module > CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
1/1
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
Share:

CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.

SKU: D-1010V
$5.99 $5.99
CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $5.99 = $5.99
save $0.00
Add to Favorites
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
1/1
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • CZH-LABS USB Type A Female Vertical Jack Breakout Board, Terminal Block Connector.
  • Description

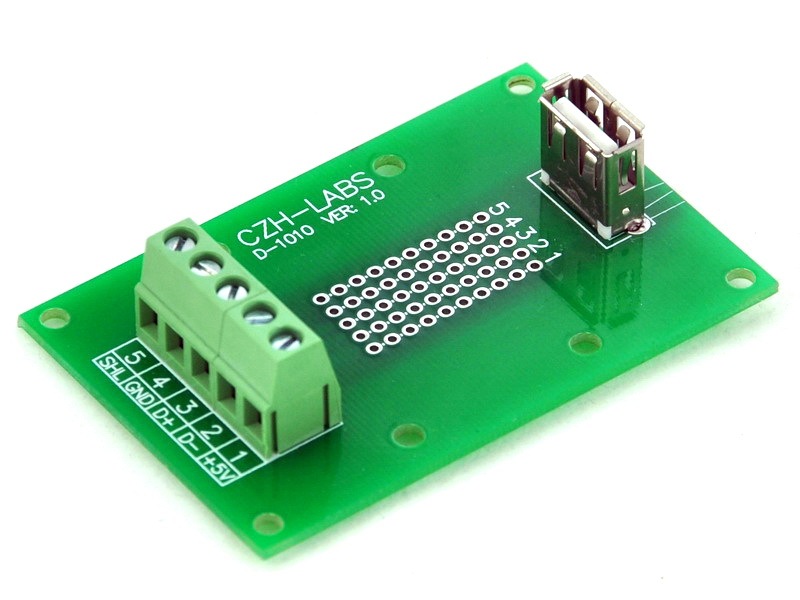

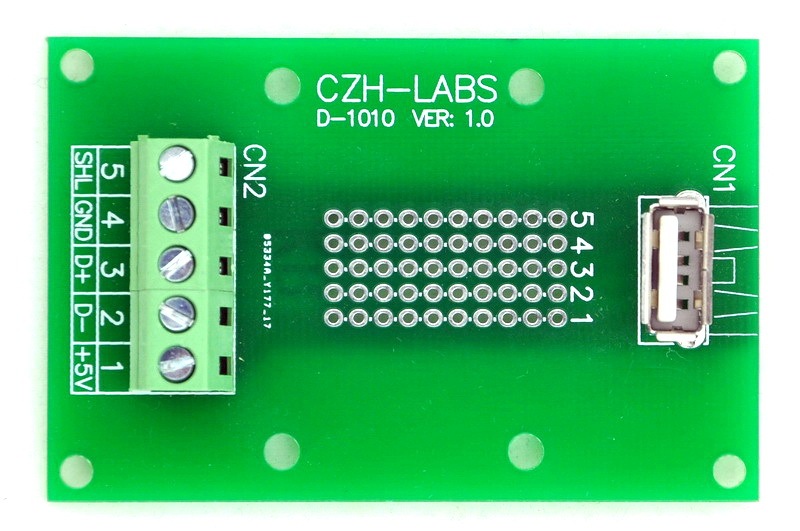

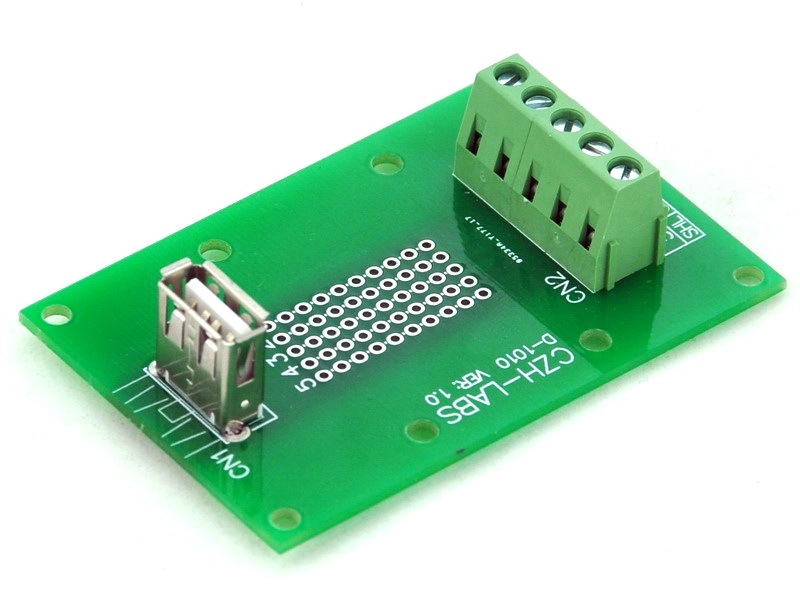

USB Type A Female Vertical Jack Breakout Board.

USB type A female vertical jack .
Pitch 5.0mm/0.197" screw terminal block.
Solder connection holes 10 per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB.

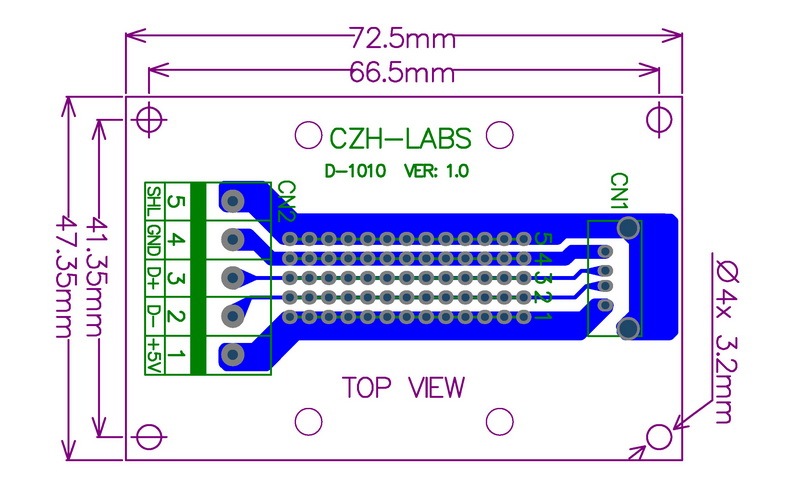

PCB dimensions: 72.5 x 47.35 x 18mm (W x L x H).
Operating Temperature: -20ºC to 70ºC
100% new, never used.

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass
