Home > Relay Module > Power Relay Module > CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
1/1
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
Share:

CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112

SKU: D-1050/12V
$72.00 $72.00
CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $72 = $72
save $0.00
Add to Favorites
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
1/1
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • CZH-LABS Slim Panel Mount DC12V Sink/NPN 16 SPST-NO 5A Power Relay Module, APAN3112
  • Description
Control mode: Common negative, for Source/PNP output controllers.
Relay: APAN3112
Relay/switch channel number: 16
Relay switch type: SPST-NO (when the relay no action switch off).
Each channel switching current upto 5A at 250VAC (or 30VDC)
Original Panasonic APAN31xx series relay and PA1a-PS relay terminal socket.

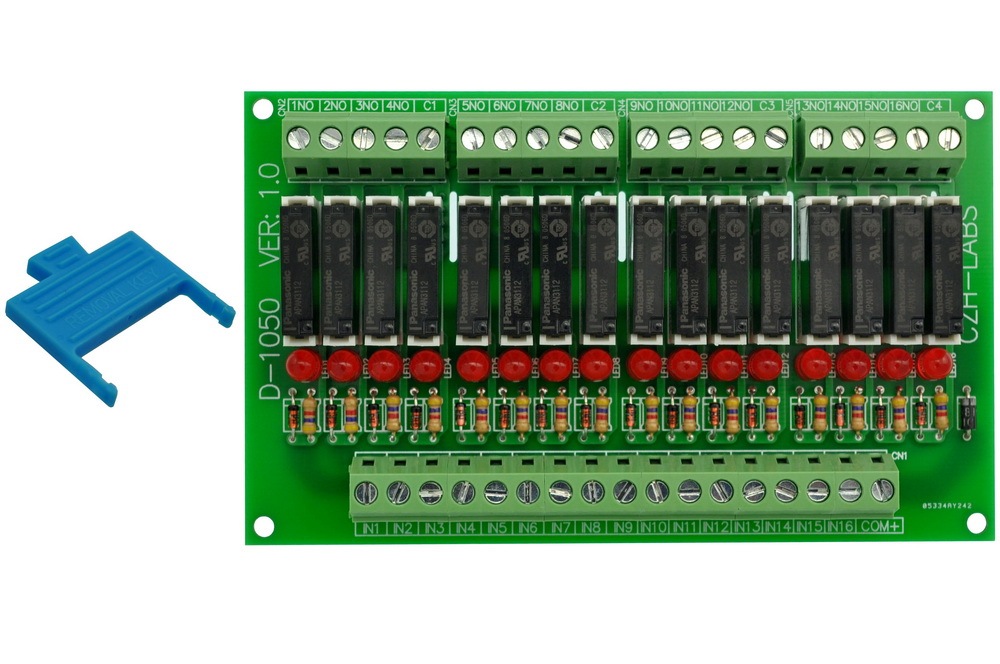

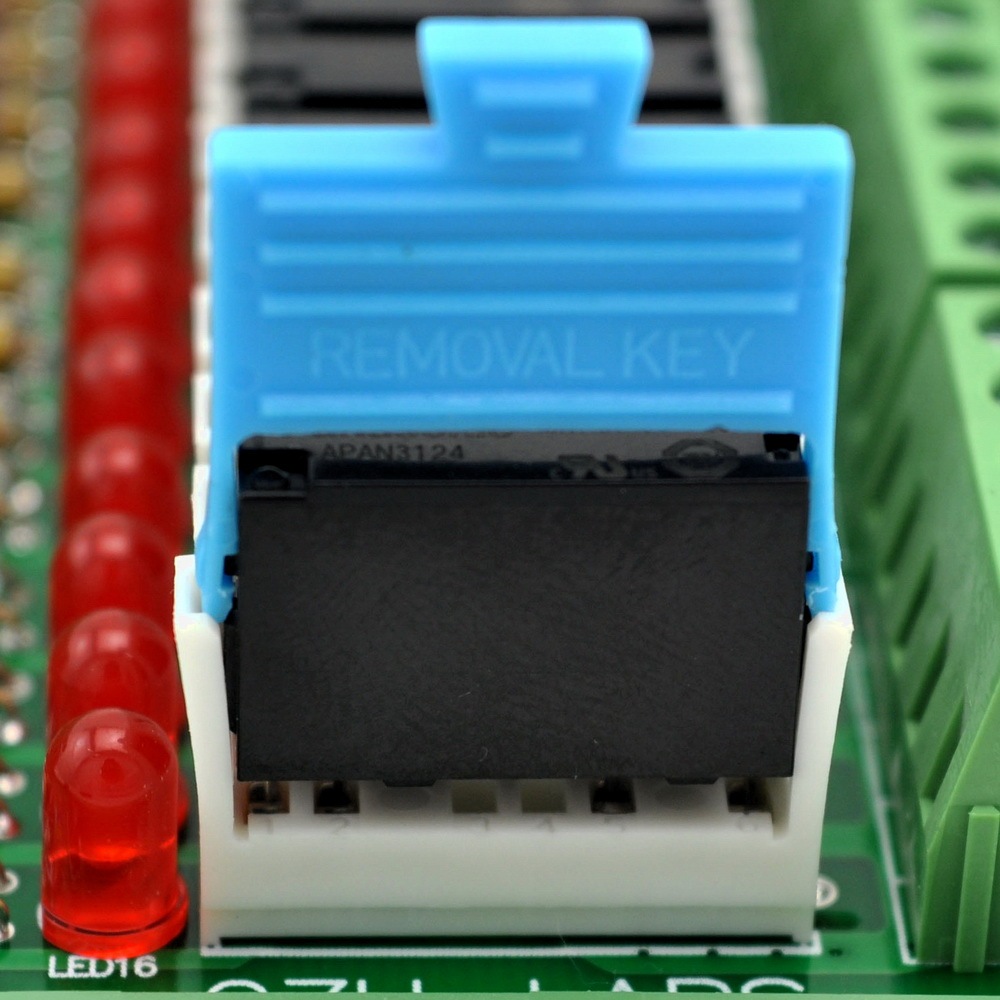

With removal key, easy to replace pluggable relays.
Relay Coil Protection by means of a Freewheeling diode
LED indication to denote relay actuation.
100% new, never used.
