Home > Relay Module > Power Relay Module > CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105

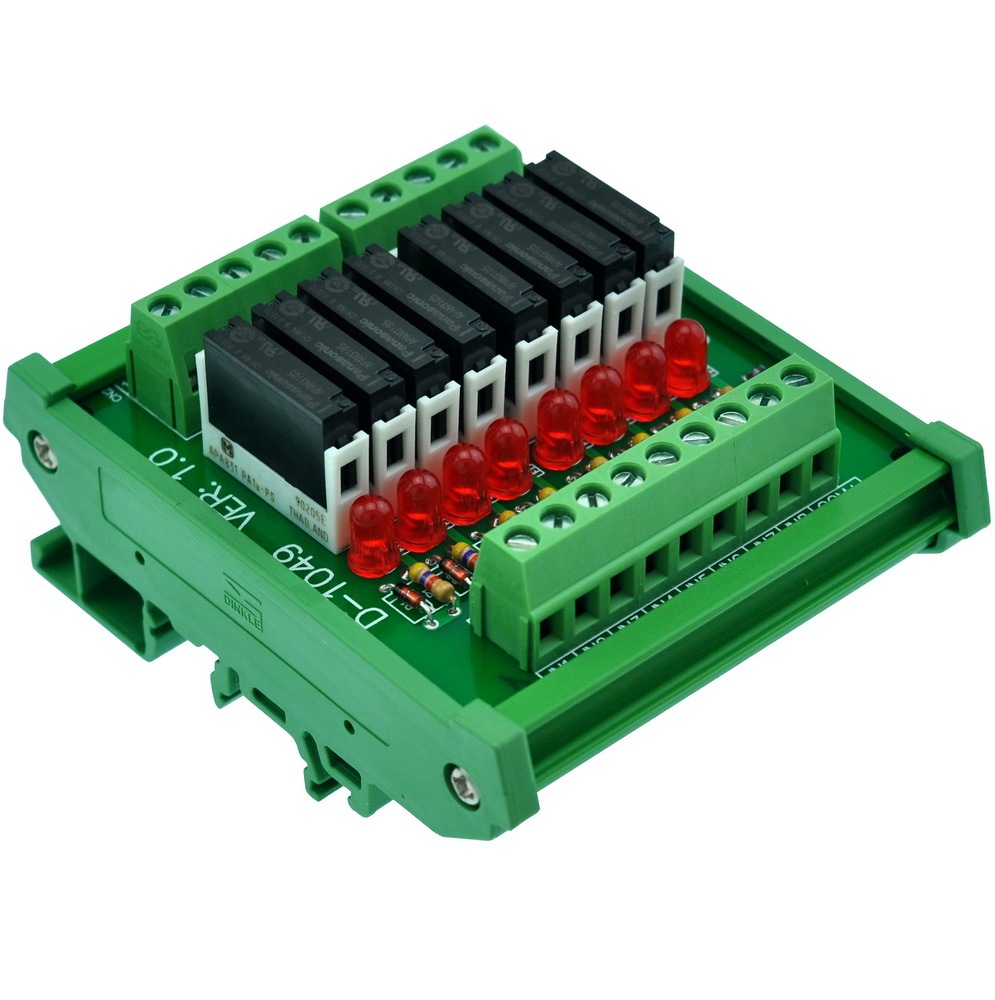

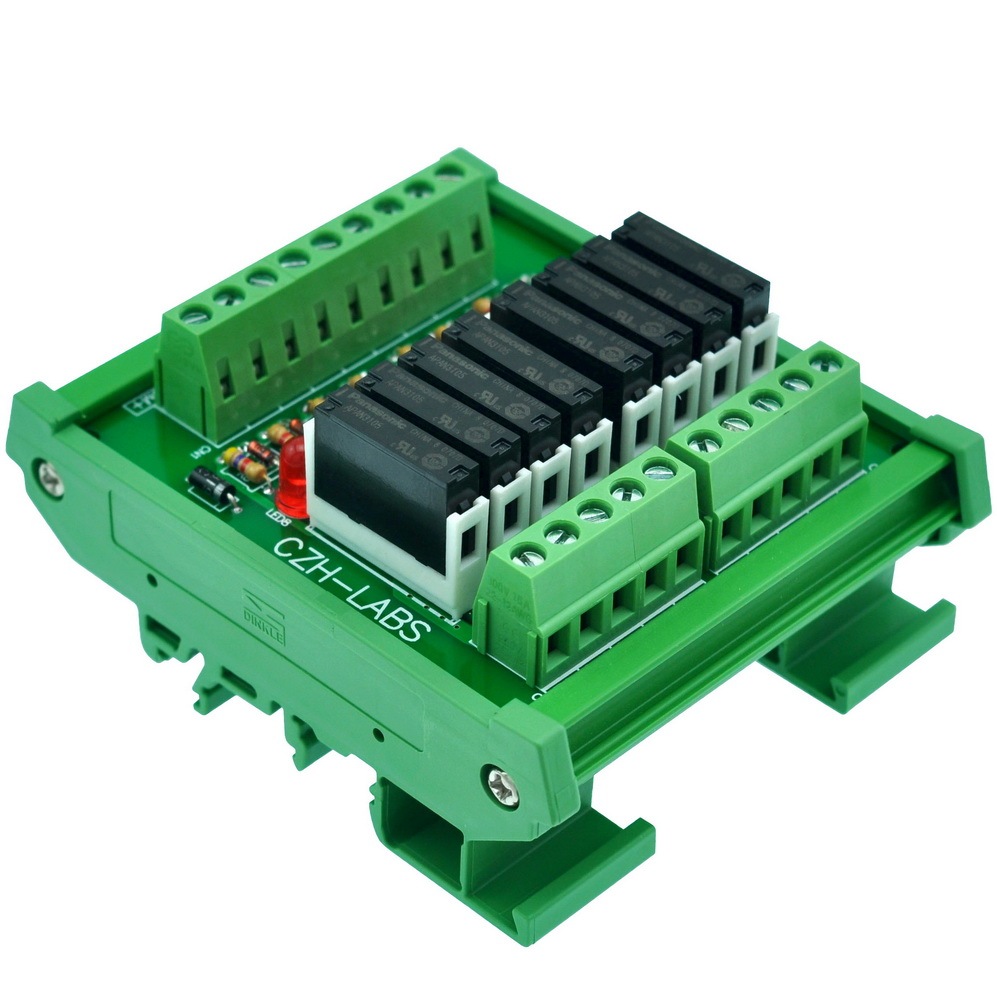

  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
1/1
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
Share:

CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105

SKU: D-1049T/5V
$47.00 $47.00
CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $47 = $47
save $0.00
Add to Favorites
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
1/1
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • CZH-LABS Slim DIN Rail Mount DC5V Sink/NPN 8 SPST-NO 5A Power Relay Module, APAN3105
  • Description

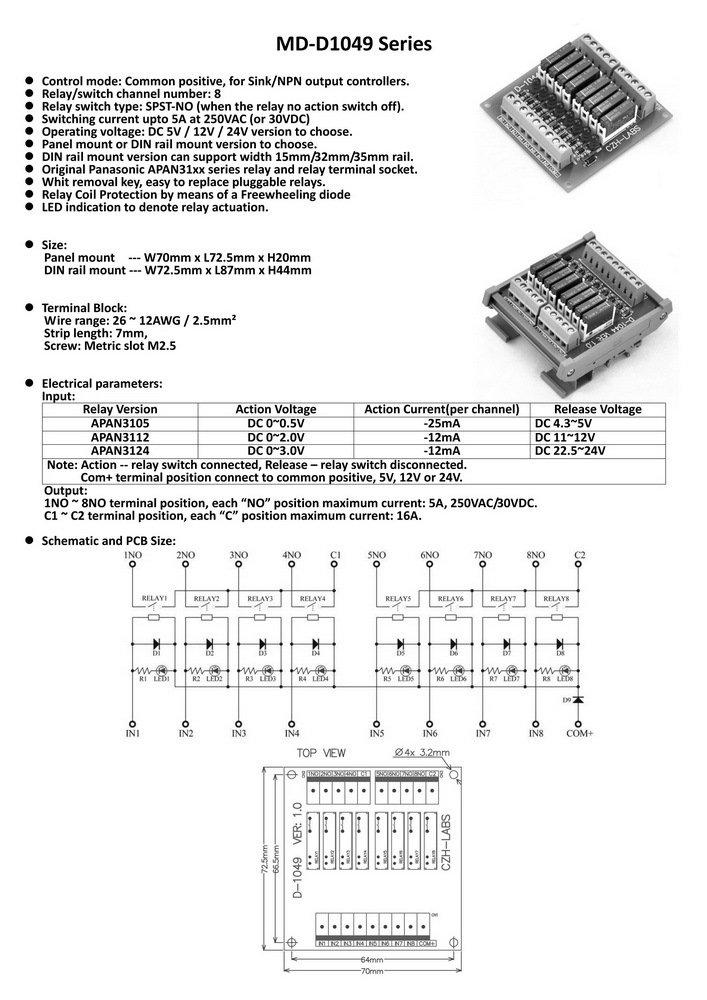

Control mode: Common positive, for Sink/NPN output controllers.
Relay: APAN3105
Relay/switch channel number: 8
Relay switch type: SPST-NO (when the relay no action switch off).
Each channel switching current upto 5A at 250VAC (or 30VDC)

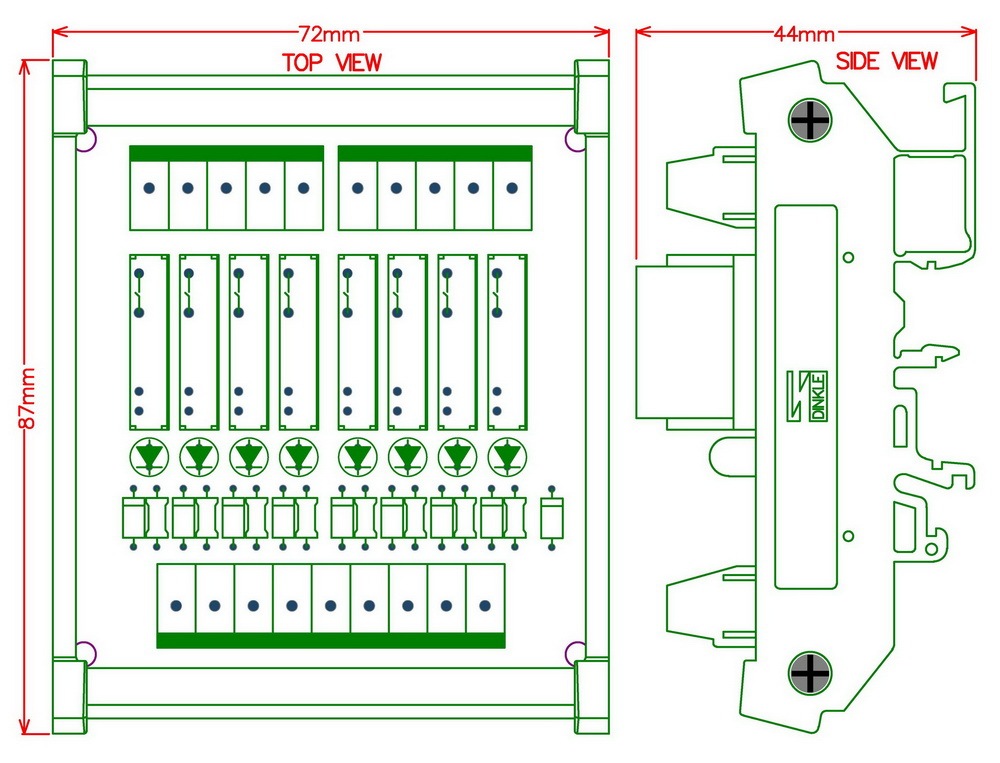

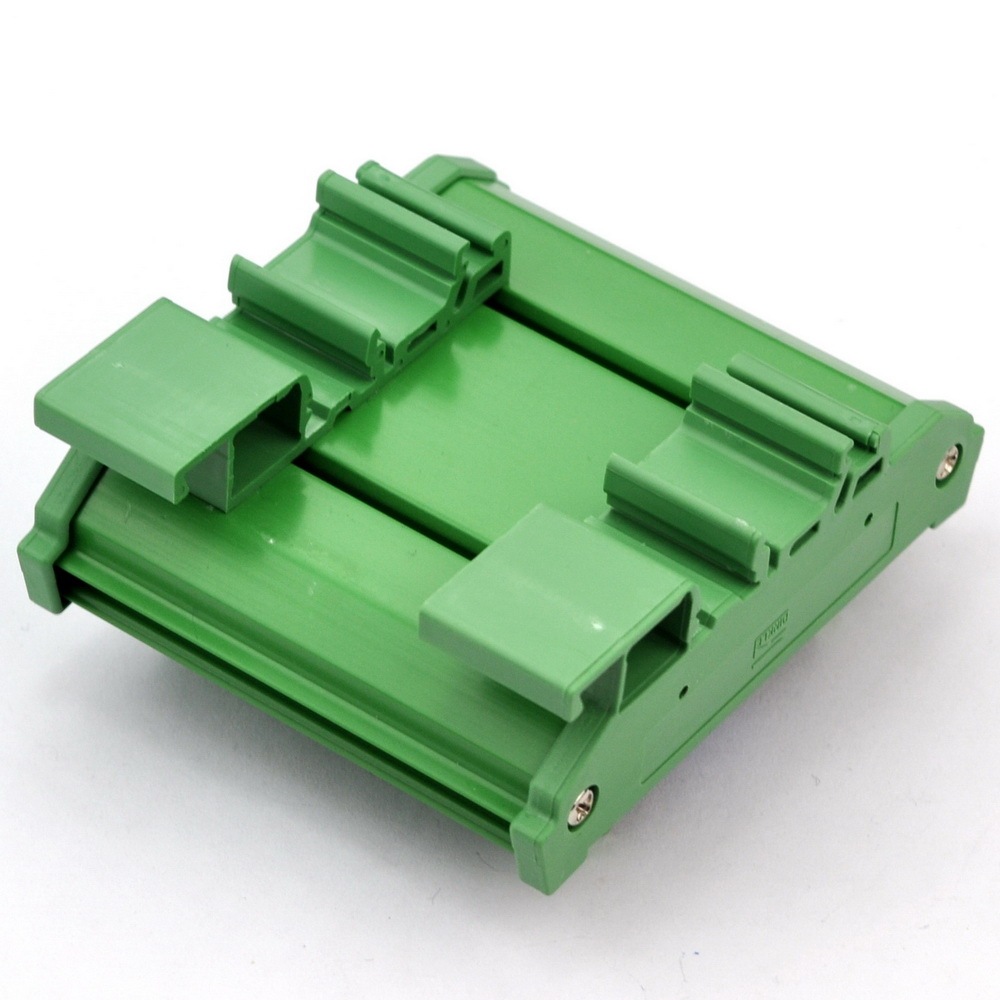

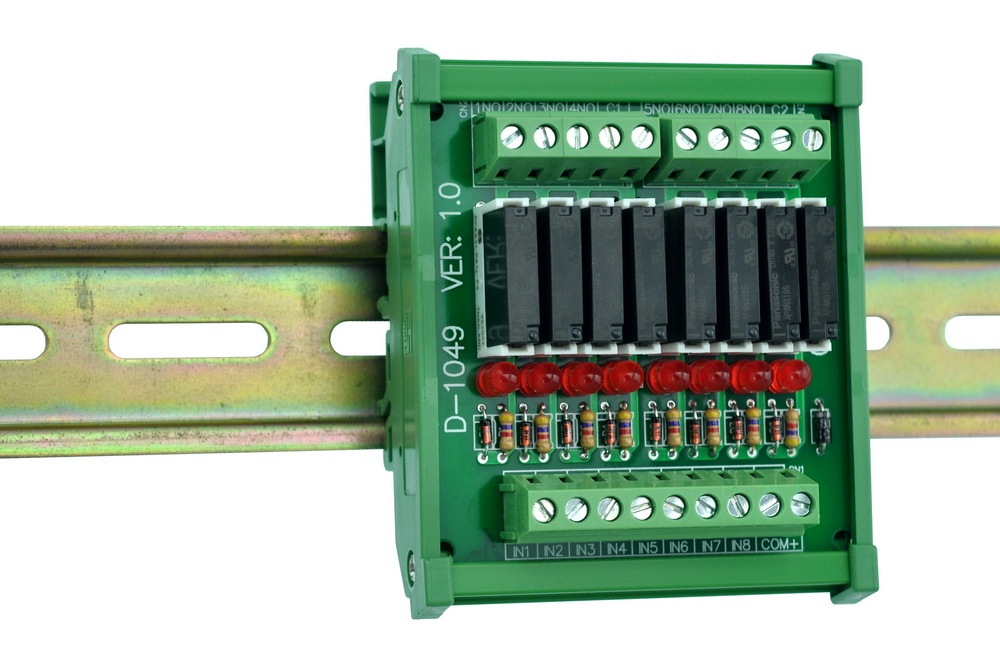

High quality fireproof materials DIN rail mount carrier, can support width 15mm/32mm/35mm rail.
Original Panasonic APAN31xx series relay and PA1a-PS relay terminal socket.

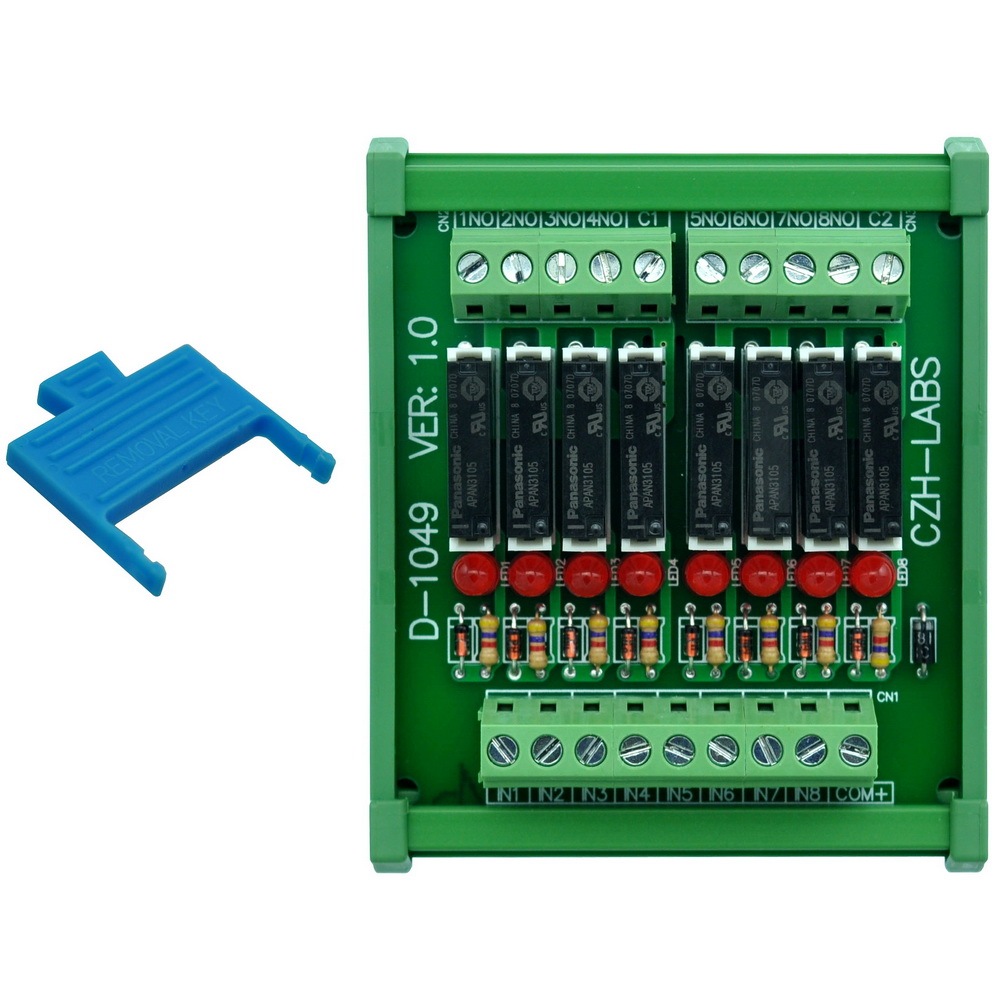

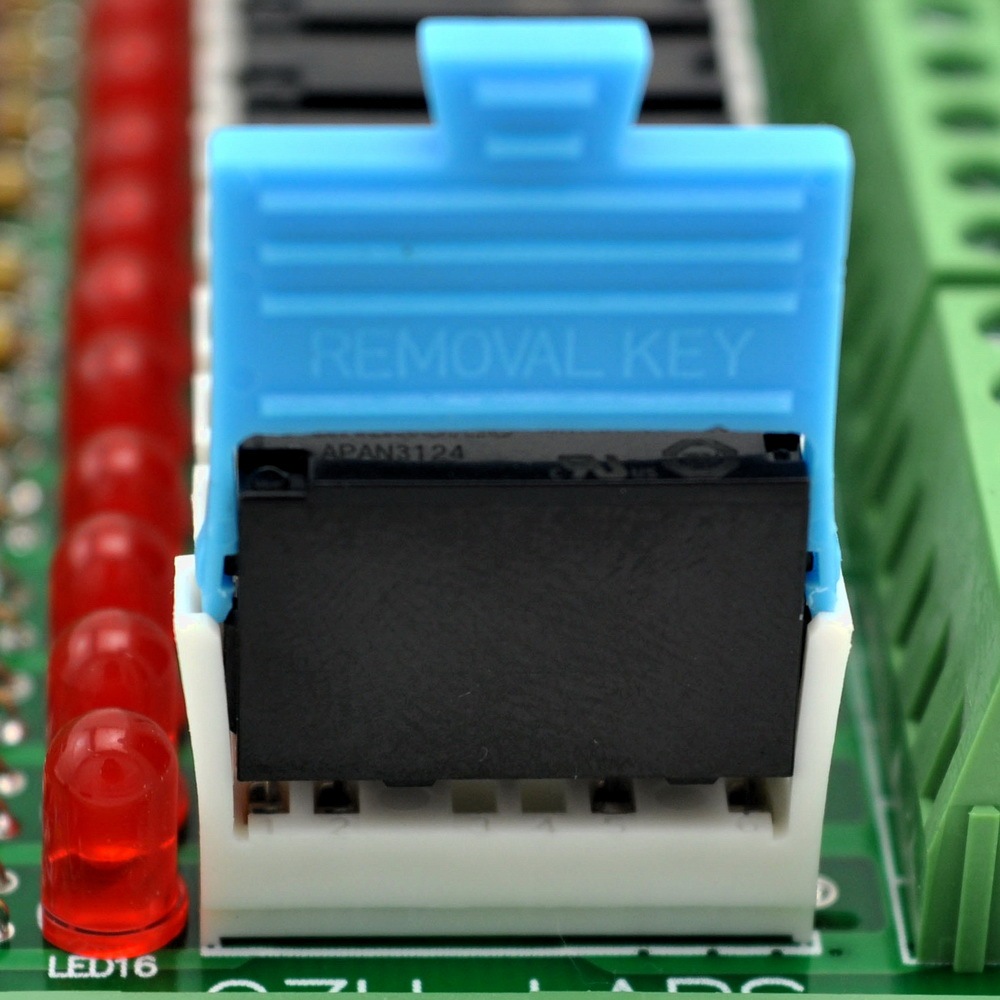

With removal key, easy to replace pluggable relays.
Relay Coil Protection by means of a Freewheeling diode
LED indication to denote relay actuation.
100% new, never used.
