CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket

SKU: D-1082S
$14.99 $14.99
CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $14.99 = $14.99
save $0.00
Add to Favorites
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
1/1
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • CZH-LABS RJ50 10P10C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket
  • Description

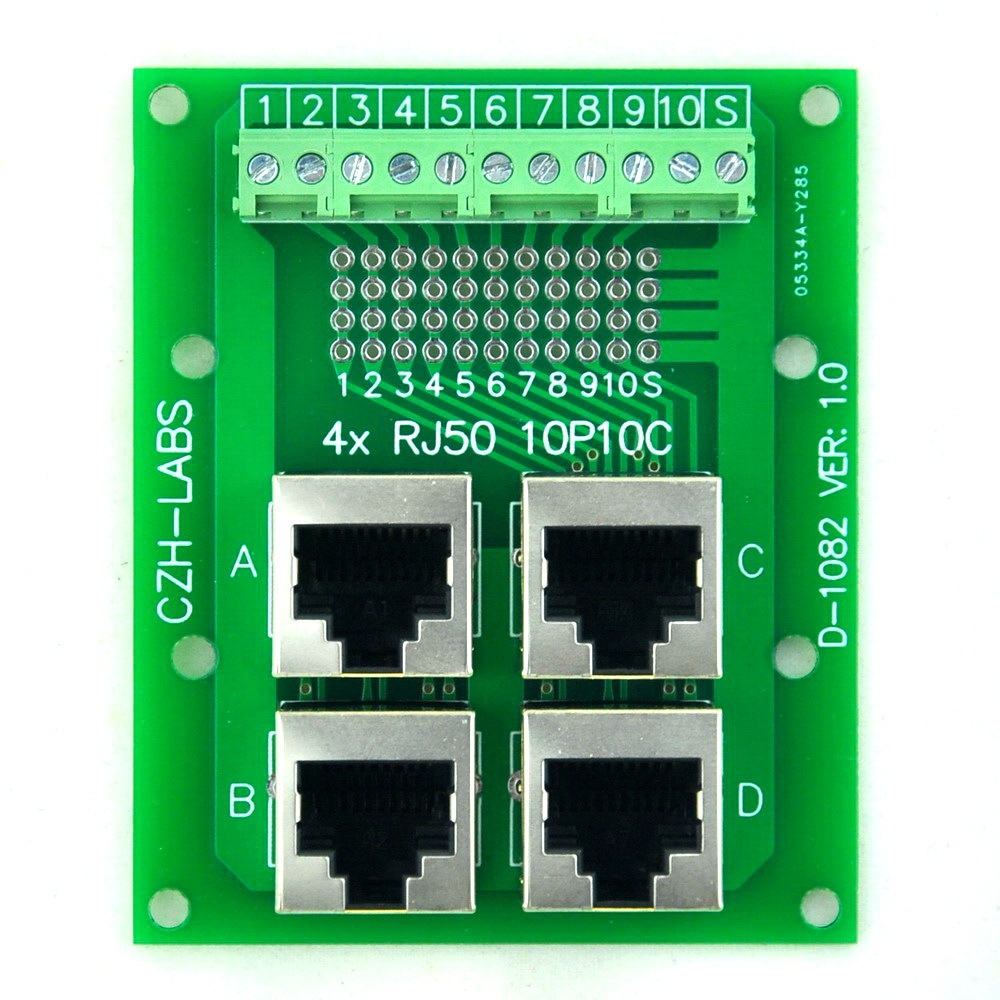

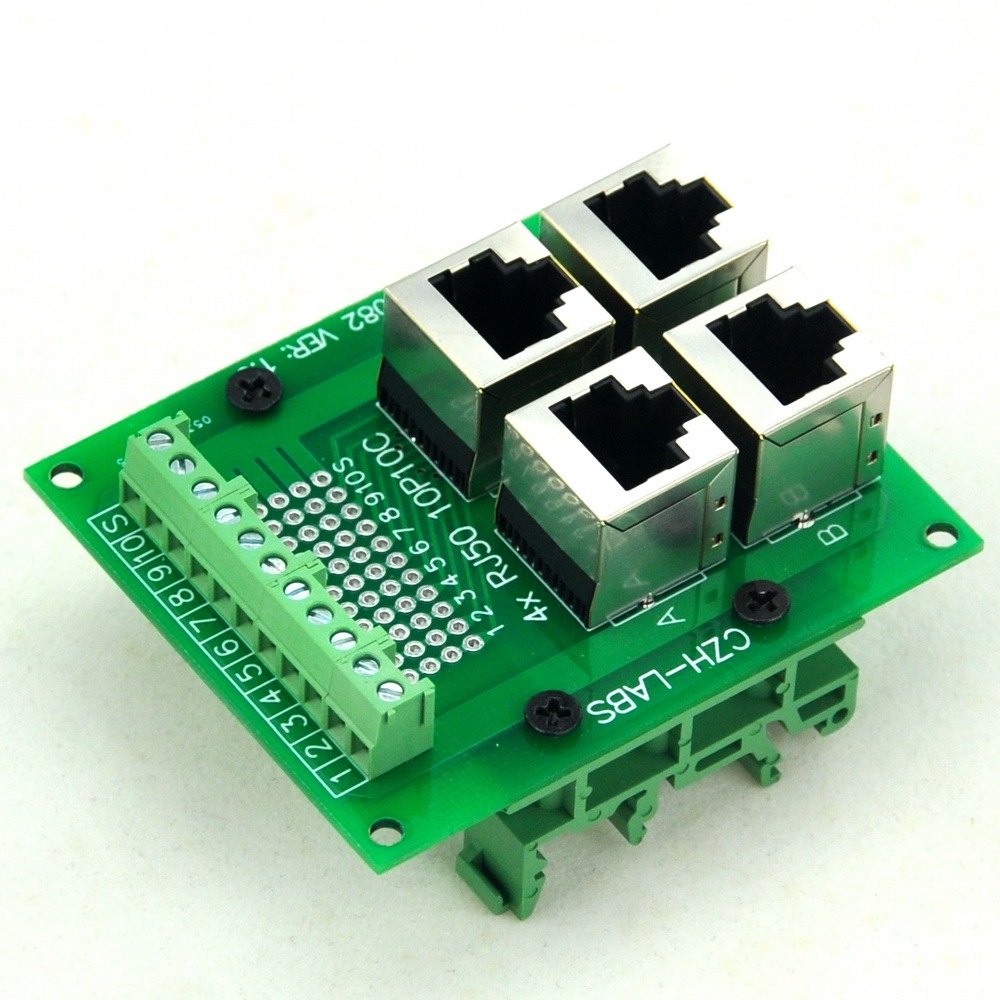

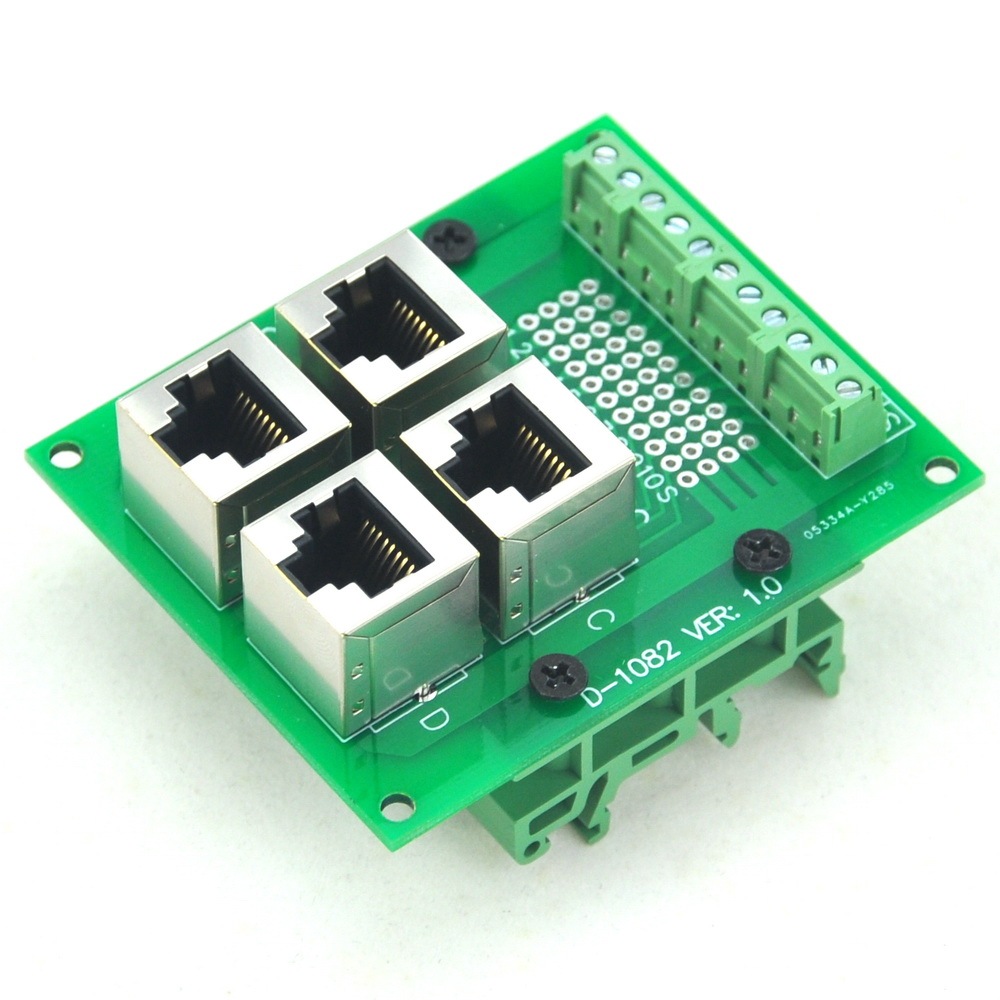

RJ50 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket.

RJ50 vertical shielded 10P10C jacks.
Pitch 3.81mm/0.15" screw terminal block.
Solder connection holes, four (4) per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB, dual copper layers.

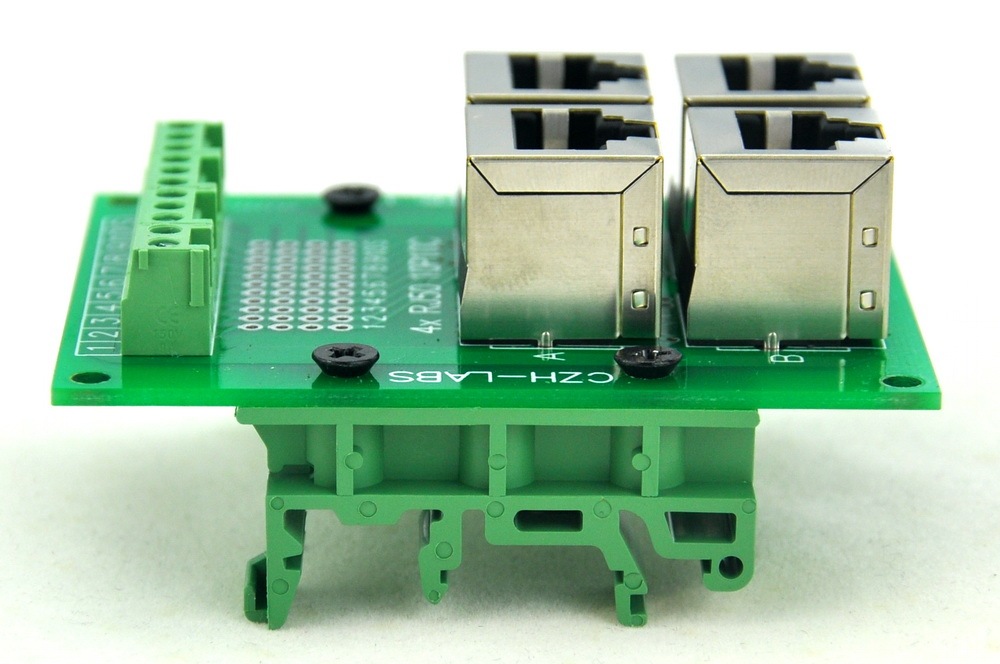

Simple DIN Adapter(Bracket), for width 35 / 32 / 15mm DIN rail.

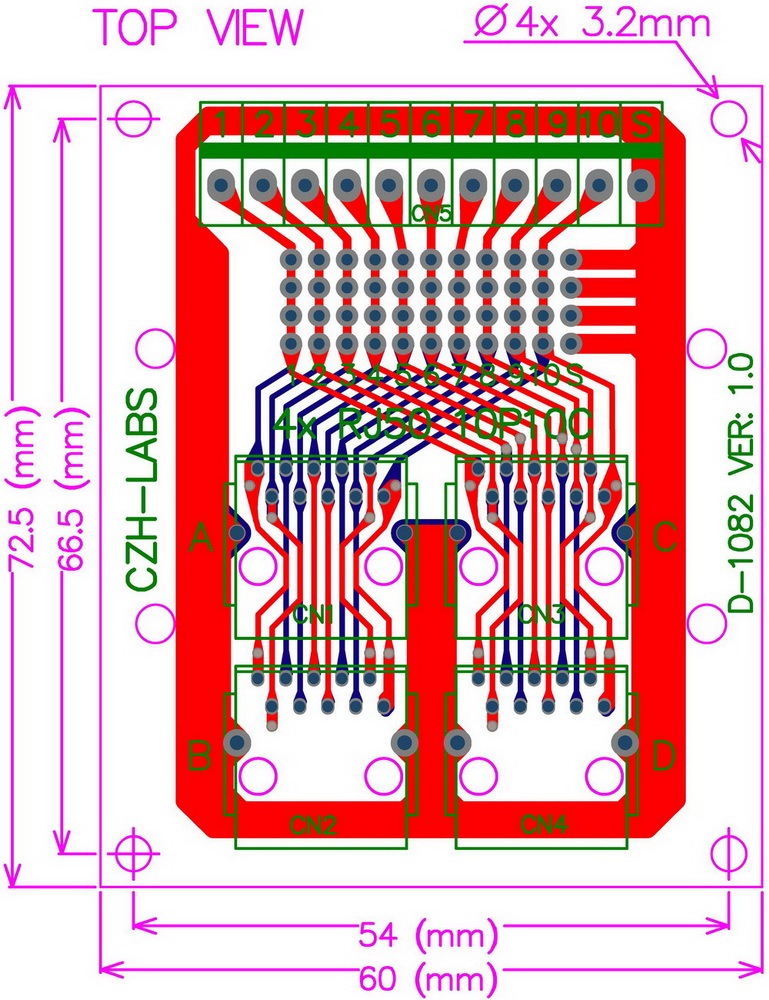

Dimensions: 72.5 x 60 x 38mm(W x L x H).
100% new, never used.

Rated voltage: 100V.
Rated current: 0.5A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 26 ~ 16AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
