CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.

SKU: D-1033/C
$34.20 $38.00
CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
10 * $34.2 = $342
save $0.00
Add to Favorites
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
1/1
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • CZH-LABS Primary 115VAC, Secondary 15VAC, 20VA Power Transformer Module, D-1033/C, AC15V.
  • Description

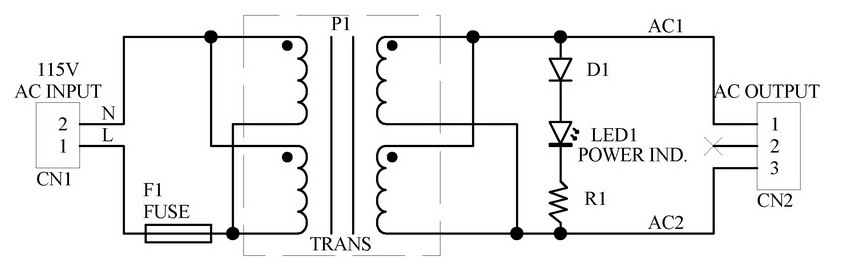

20VA Power transformer module, panel mount version.
Primary input: 105~125VAC 50/60Hz.
Secondary output voltage/current: 15VAC / 1.34A.
Part number: D-1033/C

Feature:
With primary input fuse, fuse holder easy to replace the fuse.
Epoxy resin encapsulated safety isolating transformer.
Screw terminal block easy to connect wires.
Output power indicator LED.

Power transformer characteristic:
Epoxy resin cast in vacuum, 100C / 6 hours of high temperature aging, life expectancy of
20 years, high dielectric strength.
PBT plastic, environmental protection, flame retardant, 120 degrees is not deformed.
High quality silicon steel, low temperature, high efficiency
Fire resistance property in accordance with UL94-V0.
Work ambient temperature: -30C ~ +50C
Insulation rating: Class B (+130C)
Dielectric strength: 3500VAC/1min 5mA.
Work frequency: 50 ~ 60Hz.
Voltage Regulation <15%
No-load loss <=1.2 watt.
Temperature rise: <= 28C.
