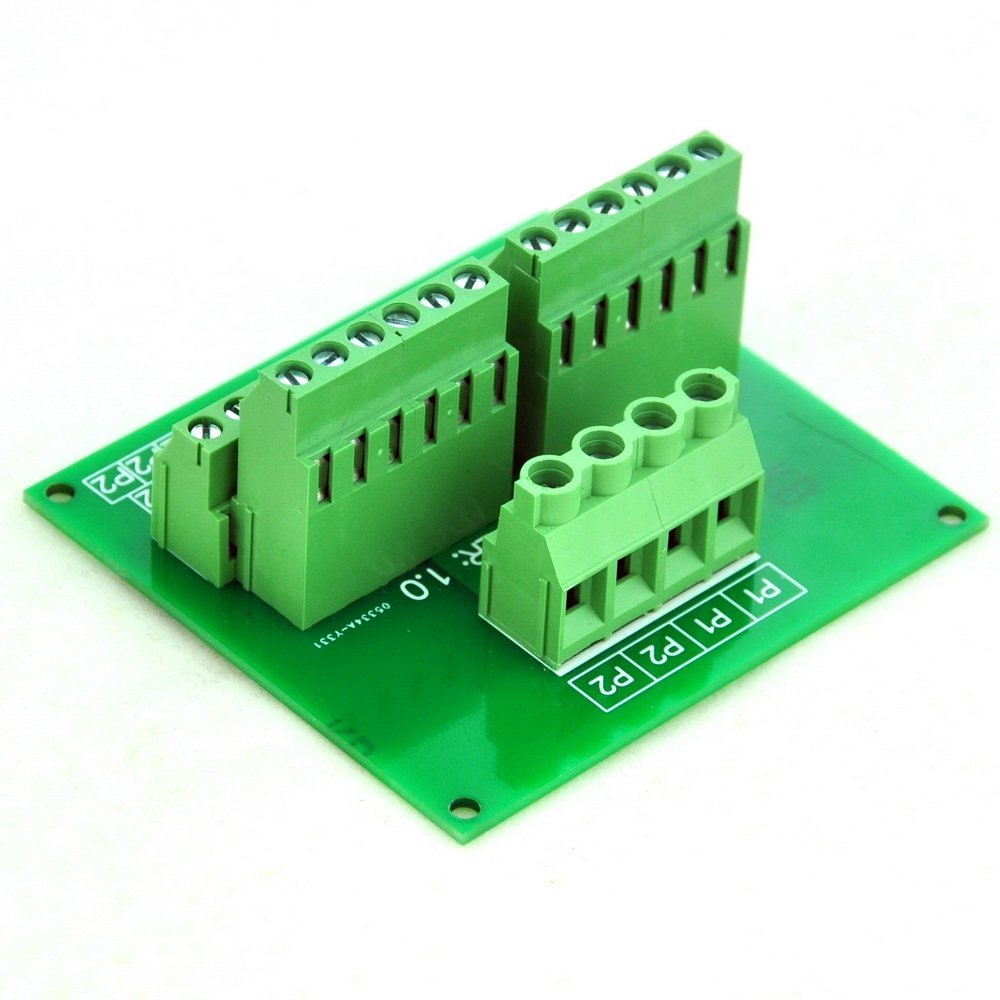

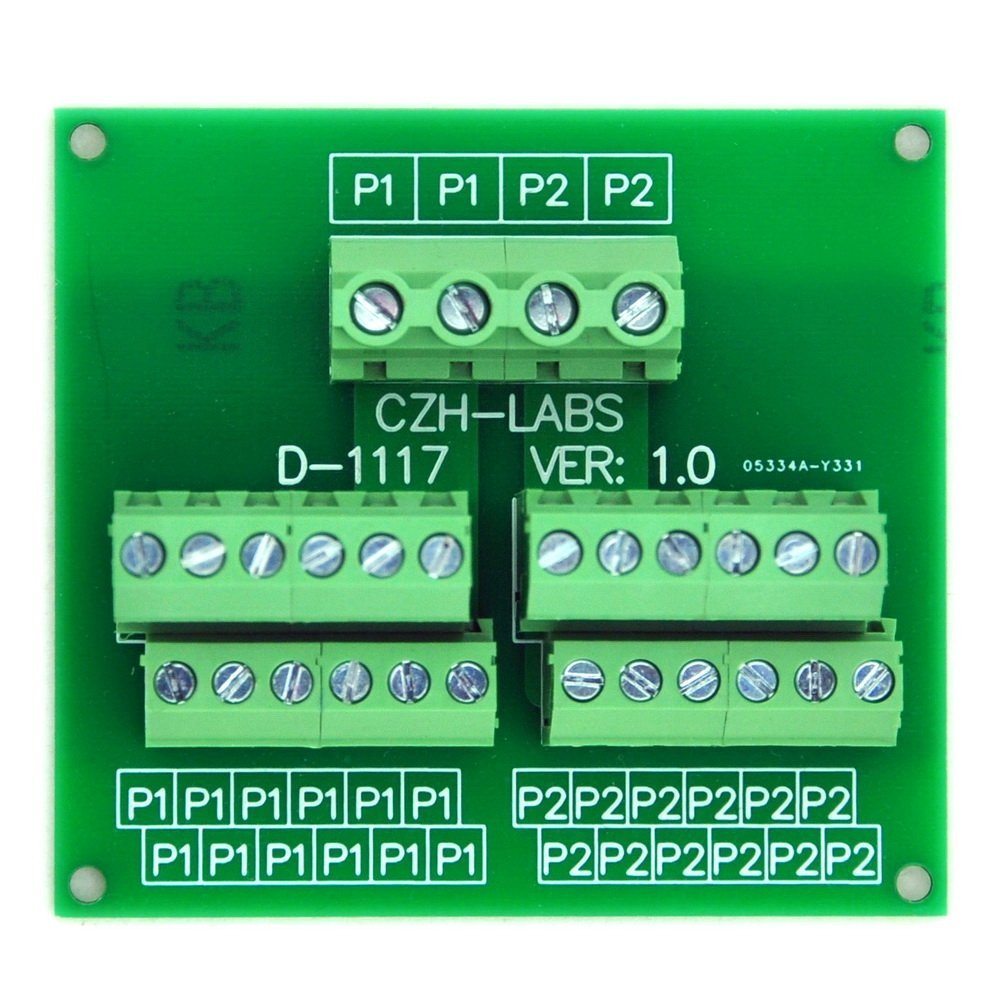

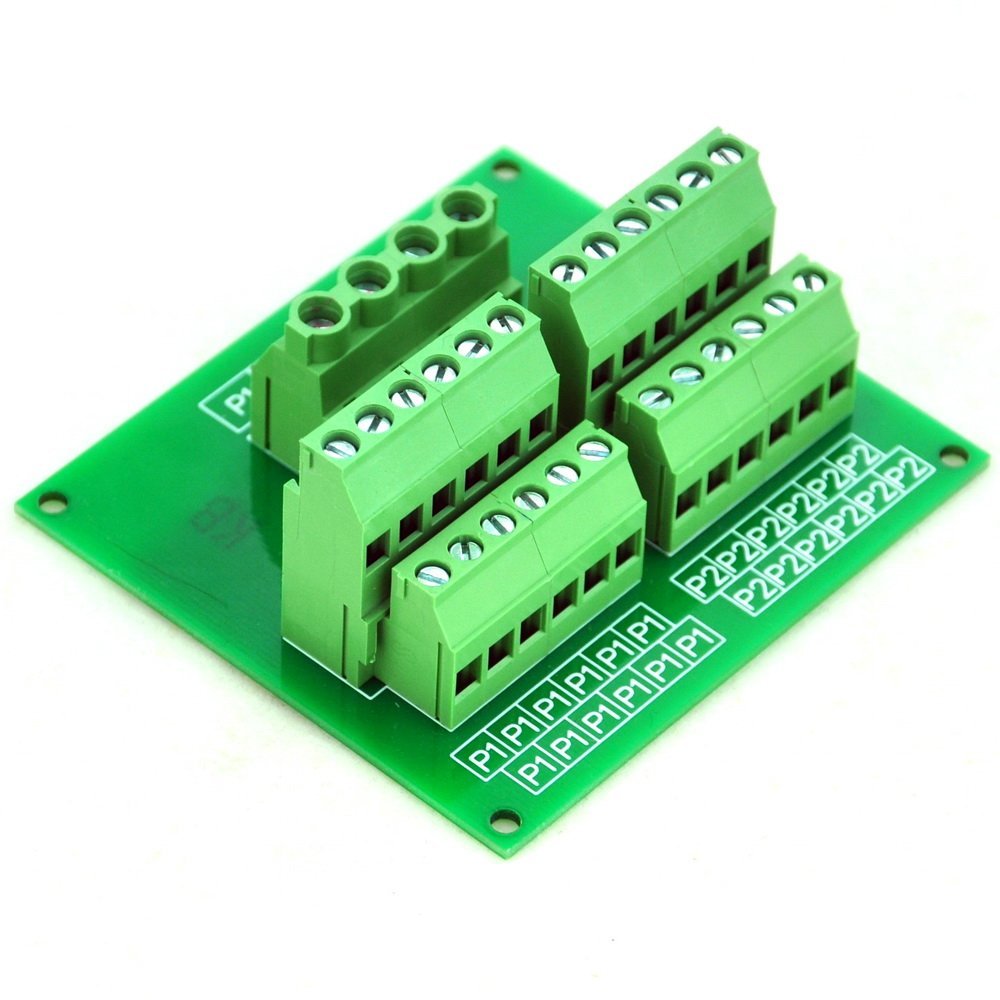

CZH-LABS Panel Mount 12 Position Power Distribution Module Board.

Name: CZH-LABS Panel Mount 12 Position Power Distribution Module Board.
Brand: Xiken Tech
SKU: D-1117
Price: 14 USD
Availability: InStock

SKU: D-1117

$14.00 ~~$14.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

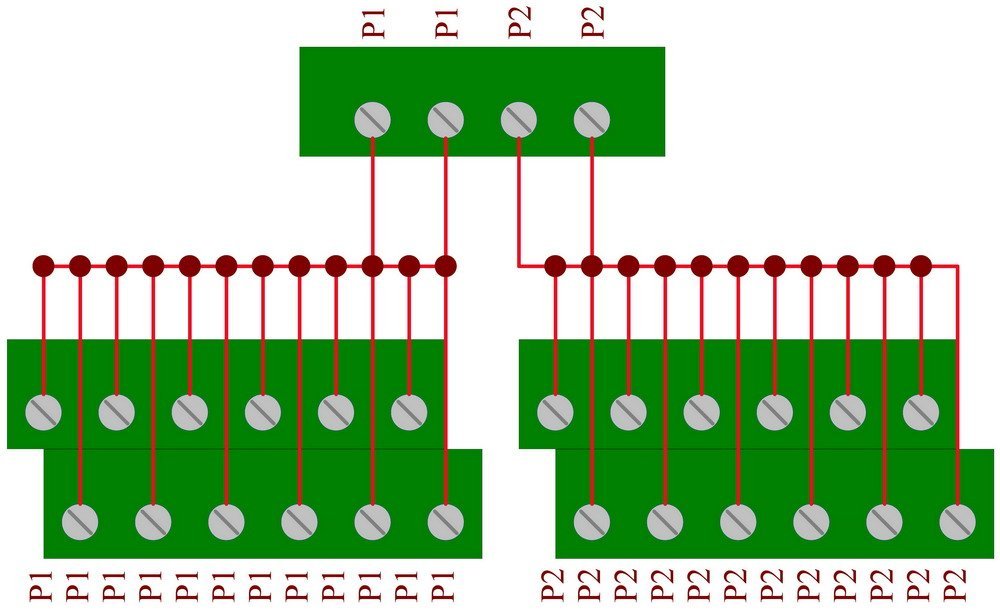

Panel Mount Power Distribution Module Board.

Specification:
Voltage - 250Vac/dc, Current Rating - 40A.

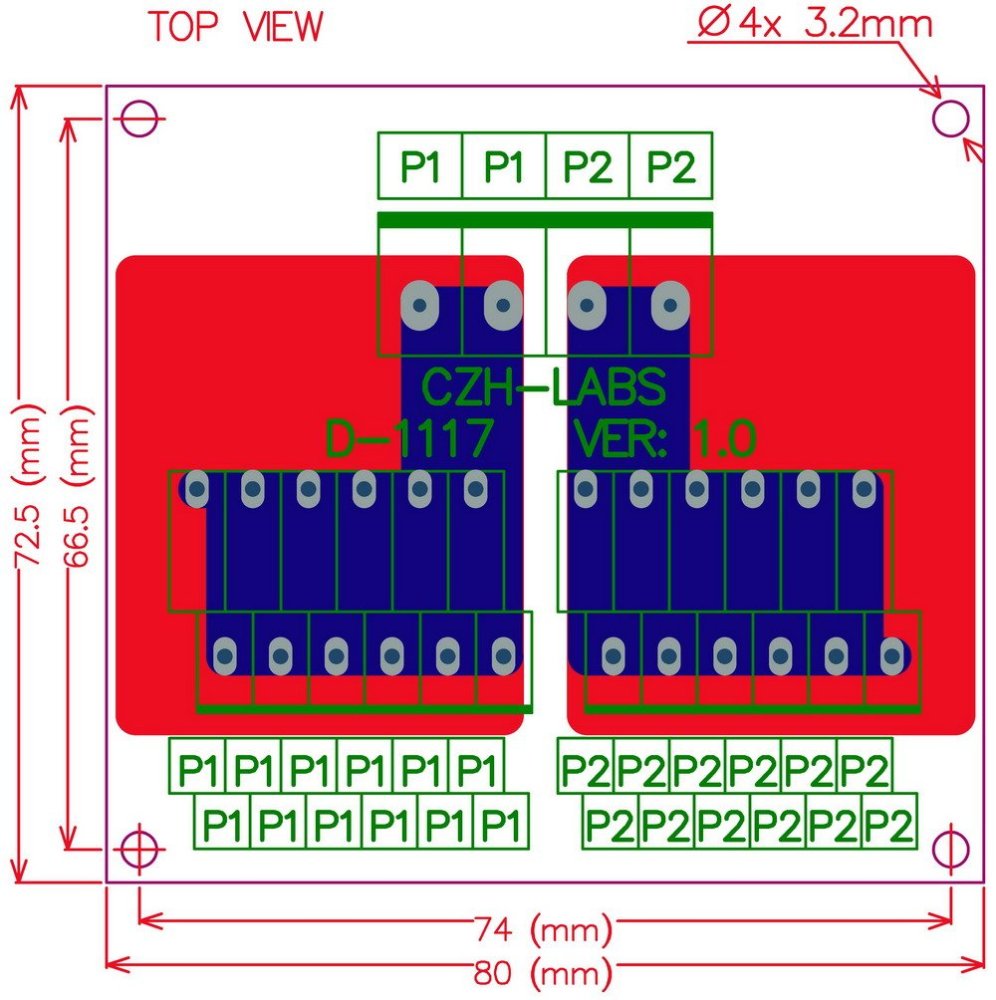

Dimensions - 80mm x 72.5mm x 34mm (W x L x H).
Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
Output terminals: pitch - 5.08mm/0.2", current 20A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
FR-4 fiber glass PCB, dual copper layers.
