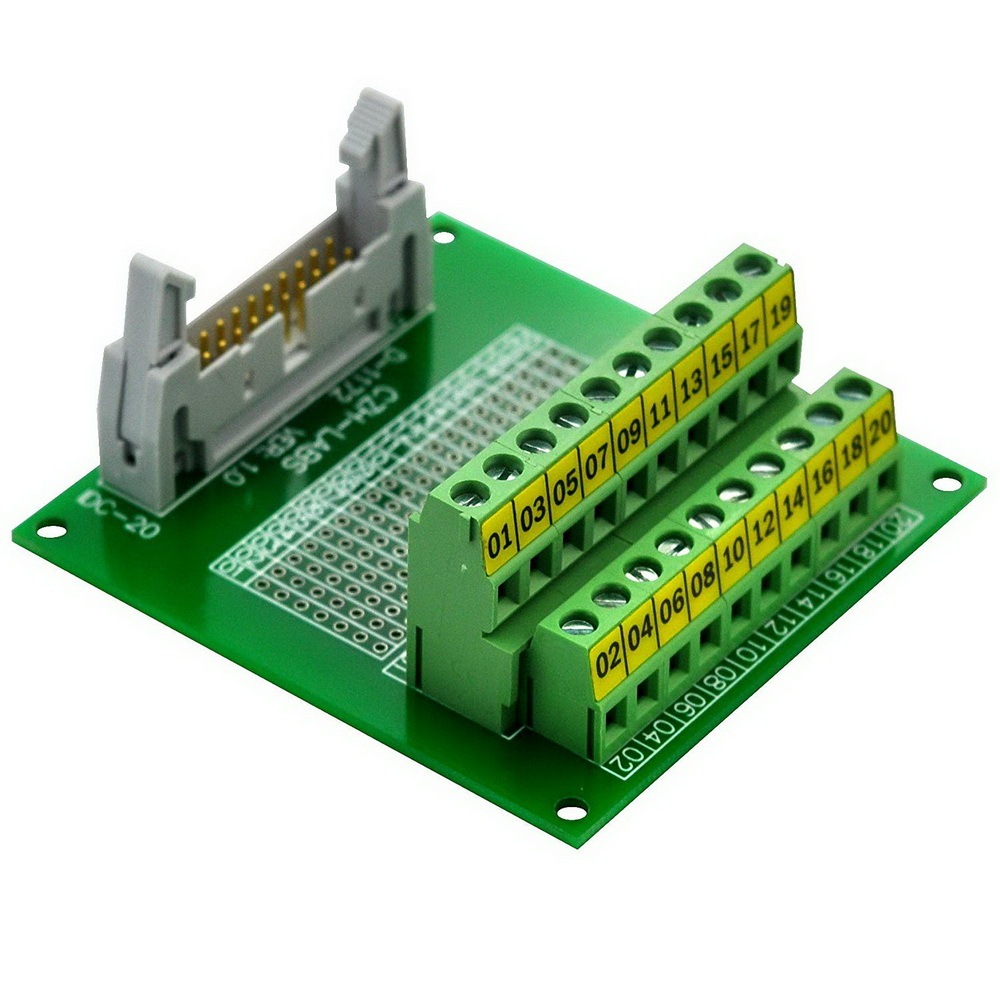

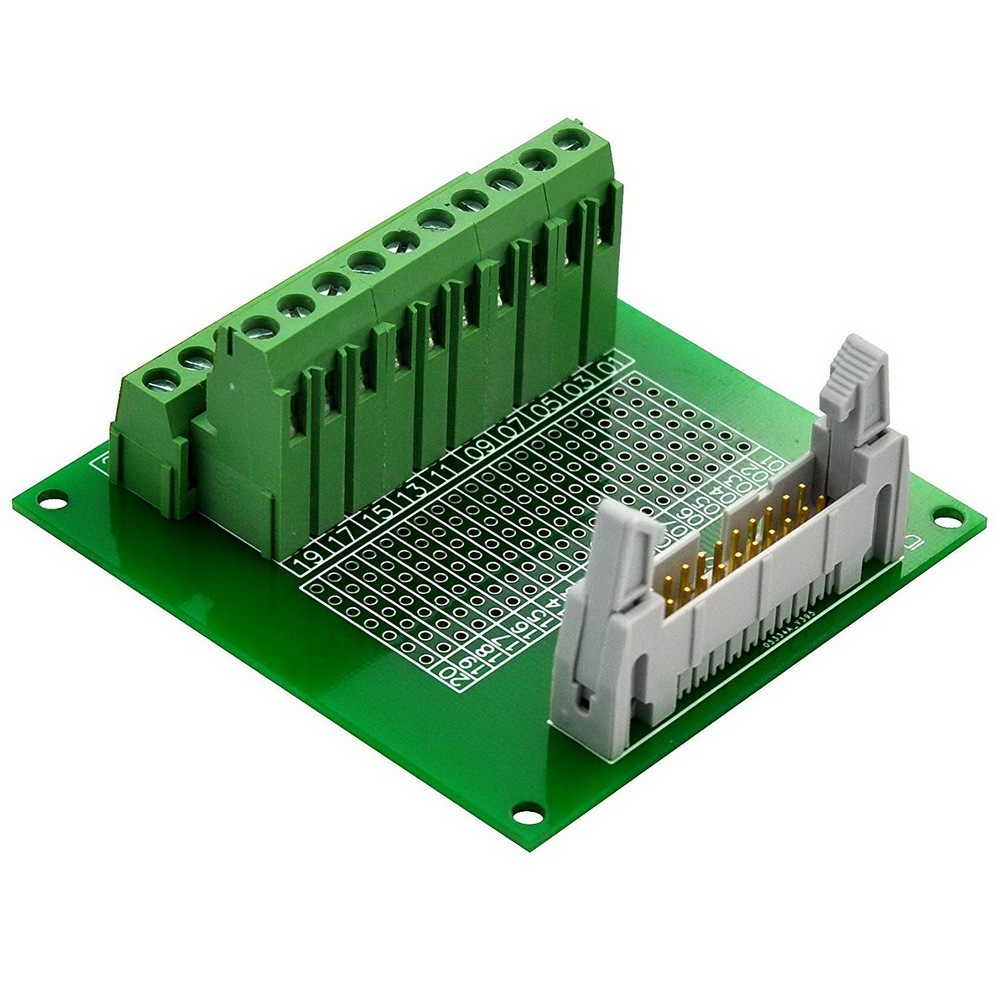

CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"

SKU: D-1172
$18.50 $18.50
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $18.5 = $18.5
save $0.00
Add to Favorites
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
1/1
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • CZH-LABS IDC-20 Male Header Connector Breakout Board Module, IDC Pitch 0.1", Terminal Block Pitch 0.2"
  • Description

Standard high quality IDC/FRC connector, pin pitch 2.54mm / 0.1”
Standard high quality terminal block, position pitch 5.08mm / 0.2”

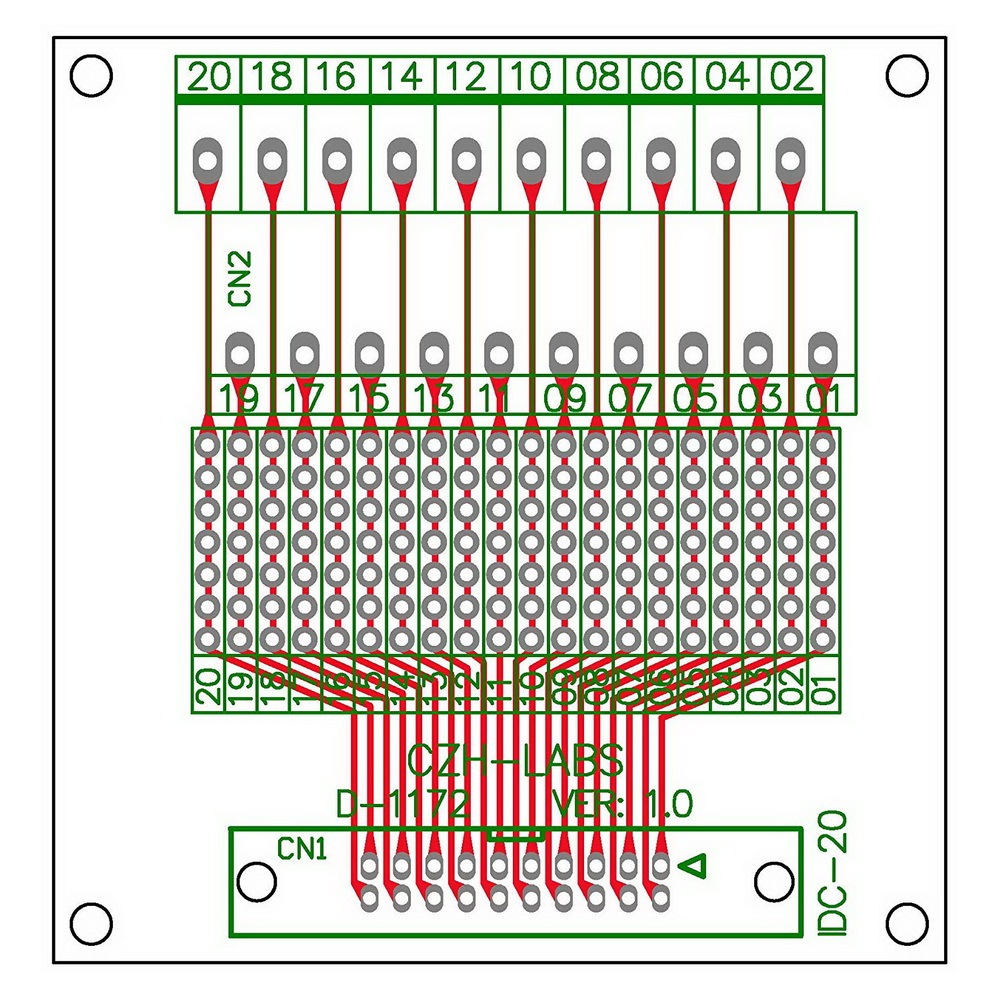

Solder connection holes 7 per line, supports addition of 2.54mm / 0.1" pin headers.

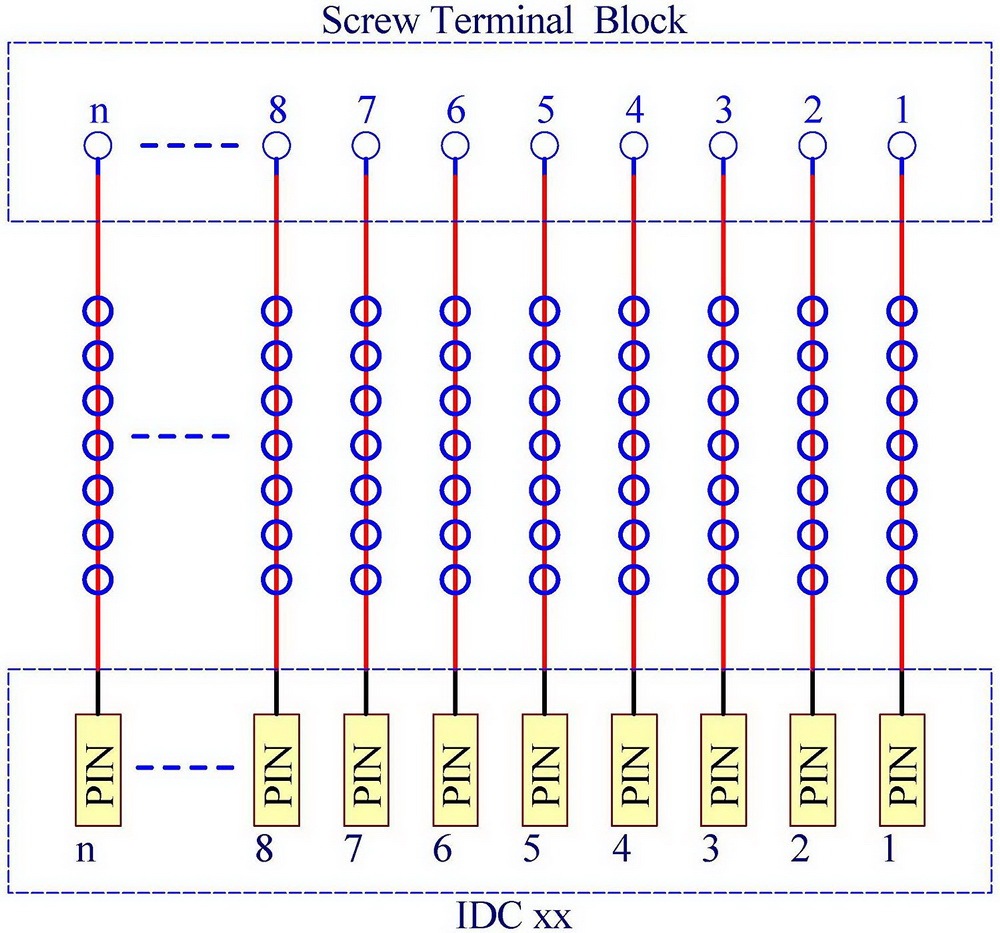

Clear terminal block position marking label, match the position corresponding to the IDC connector.
FR-4 fiber glass PCB, dual copper layers.

Terminal Block:
Pitch 5.08mm/0.2" screw terminal block.
Wire range 26 to 12AWG / 2.5mm square.
Strip length 7mm / 0.28”
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.

Specification:
Rated voltage: 60V.
Rated current: 1Amp / per pin.
Operating temperature: -20ºC to 70ºC
