CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.

SKU: D-1285S
$28.00 $28.00
CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board. Support DIN Rail Mount or Panel Mount. for industry and computer field diagnostic or test.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $28 = $28
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
1/1
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board.
  • Description

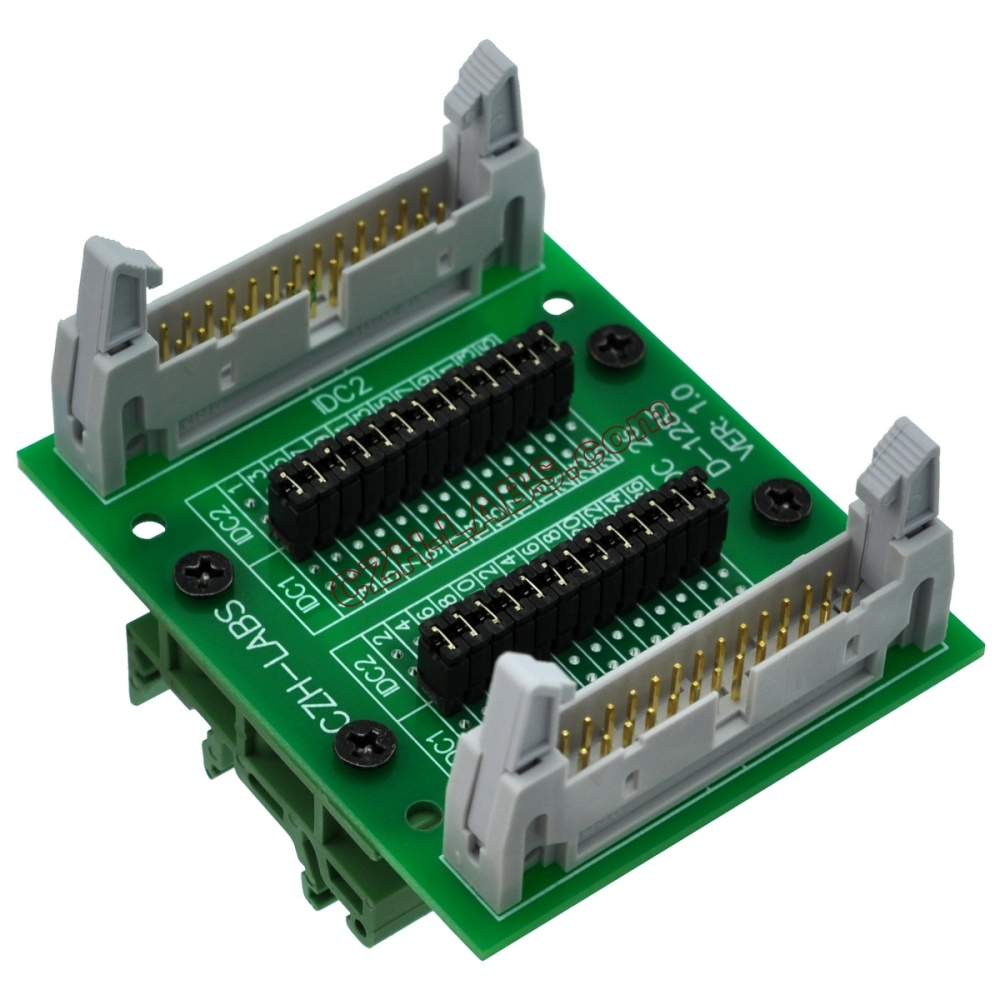

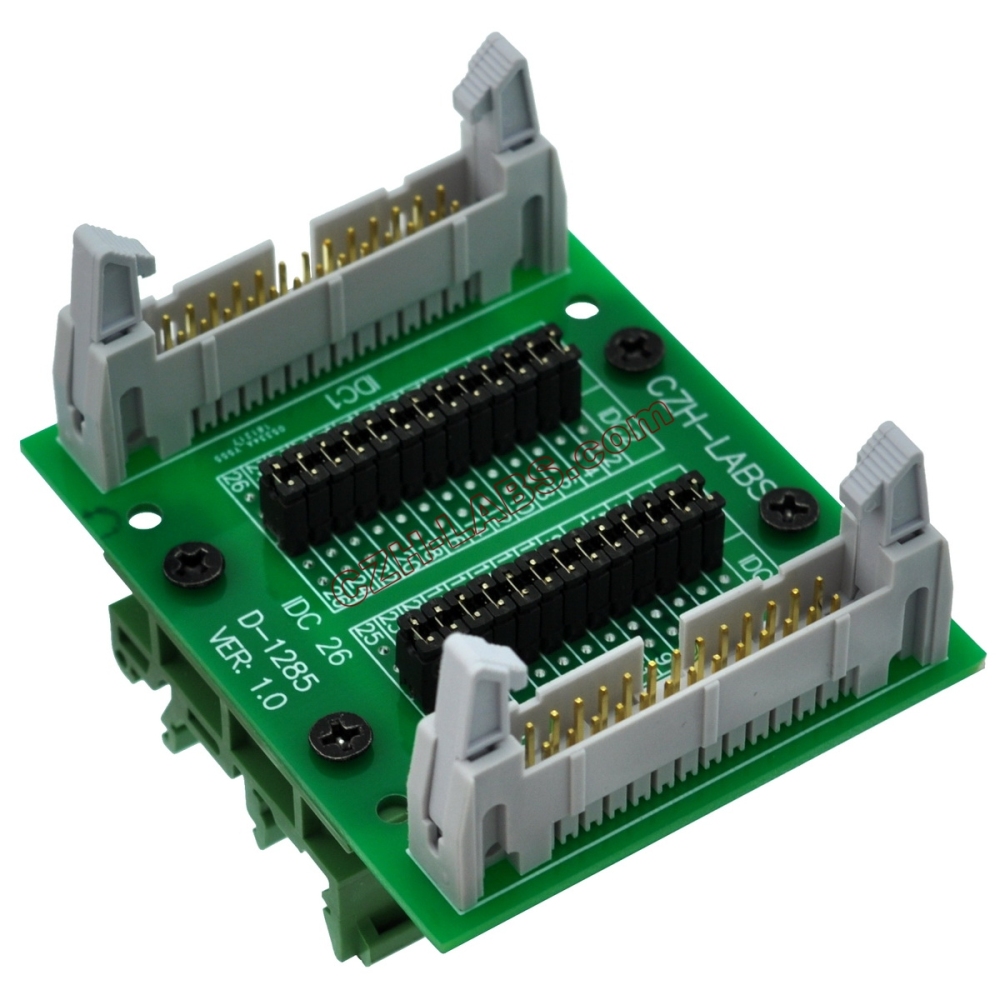

CZH-LABS DIN Rail Mount IDC26 2x13Pin 0.1" Pitch(2.54mm) Header Diagnostic Test Breakout Board, for industry and computer field diagnostic or test.

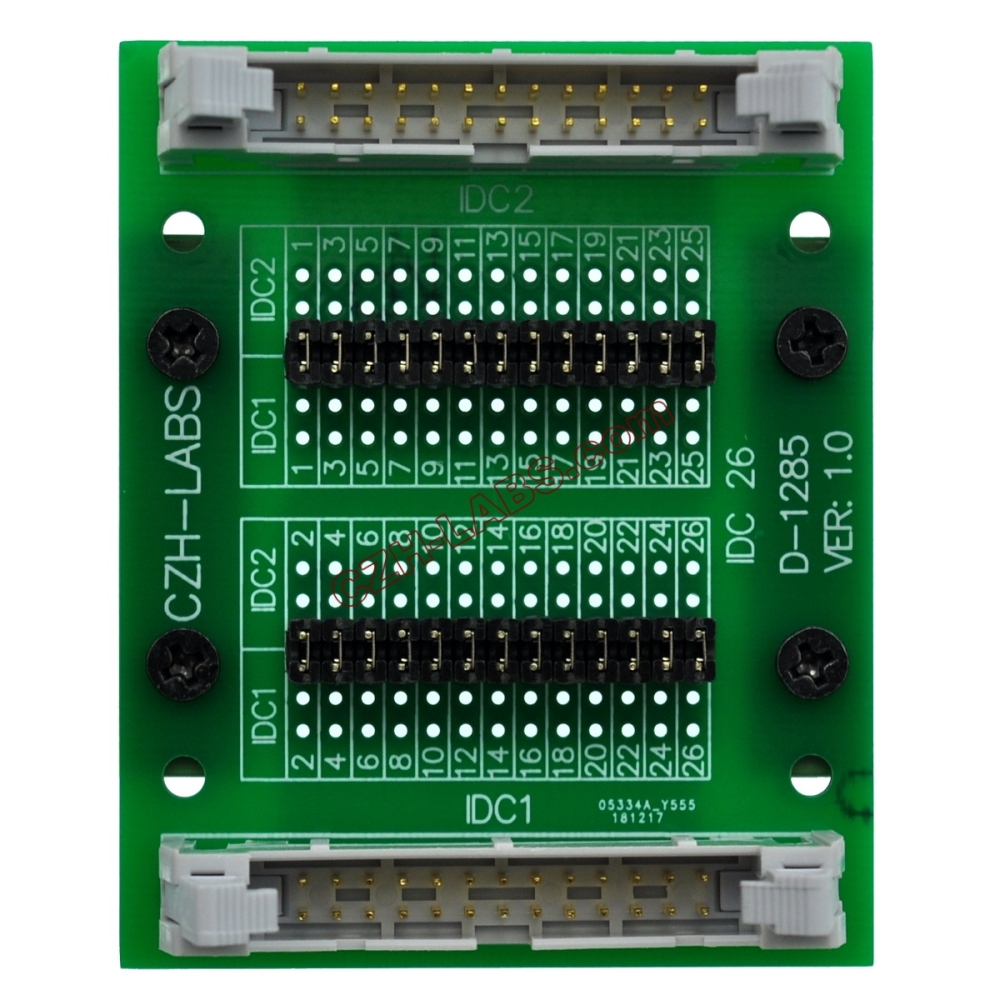

Dual male IDC26 2x13Pin 0.1" pitch (2.54mm) headers.

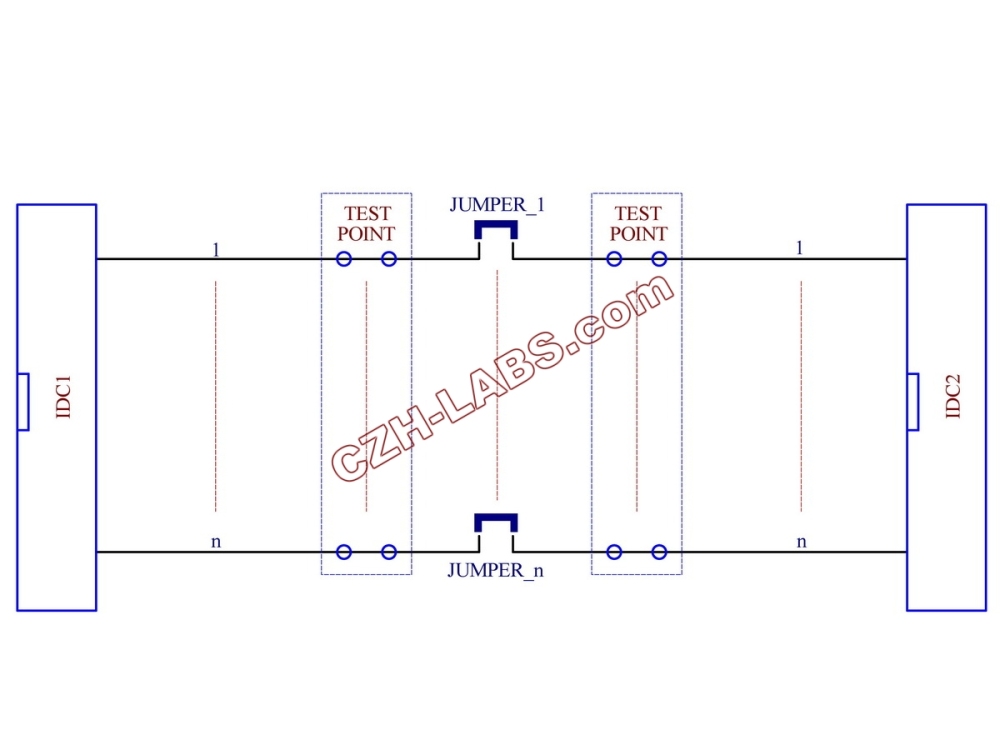

Pin Jumper option for each signal line. Clearly labeled with connector pin numbers. High quality FR-4 fiber glass PCB.

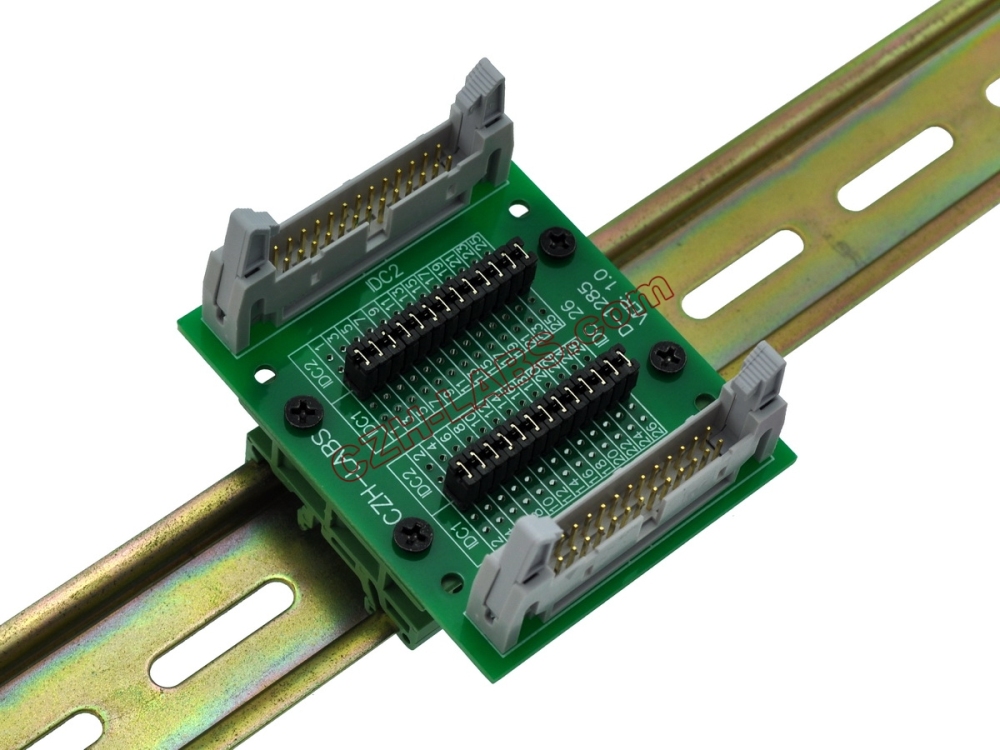

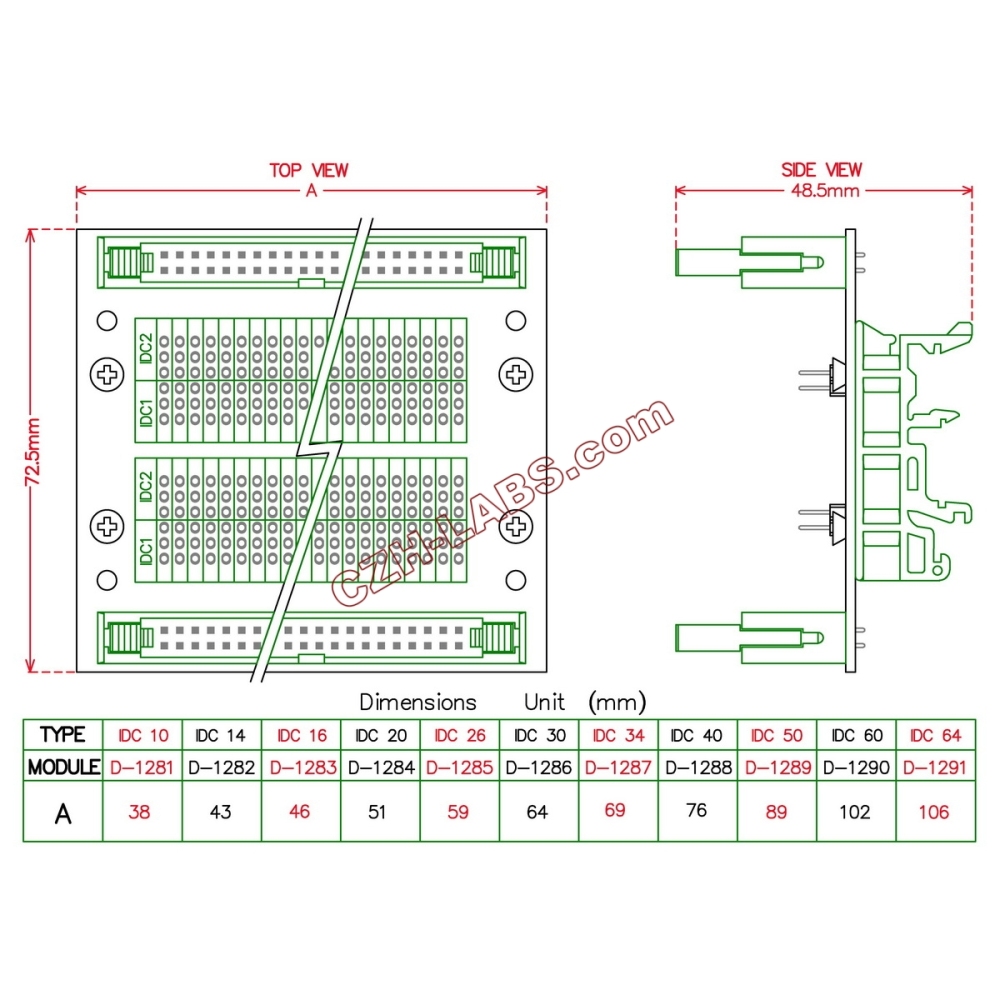

Can support width 35mm / 32mm / 15mm DIN rail mount, or panel mount.

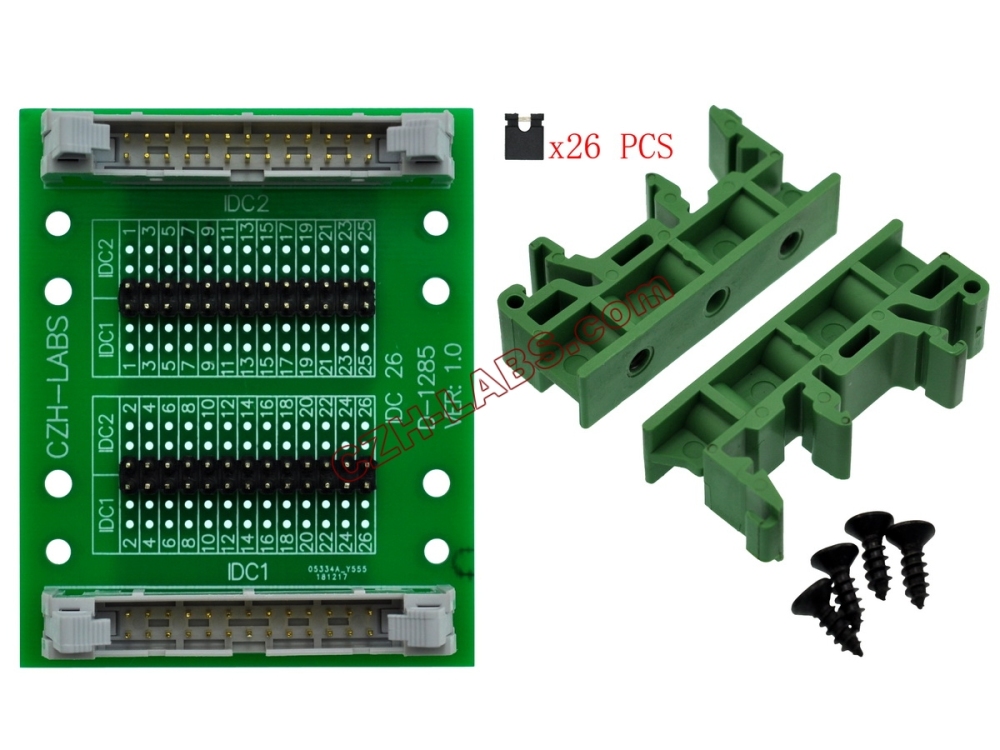

Package list: Diagnostic board 1 pcs (include pin jumpers), DIN rail adapter bracket 1 pair (include 4 pcs screws).
