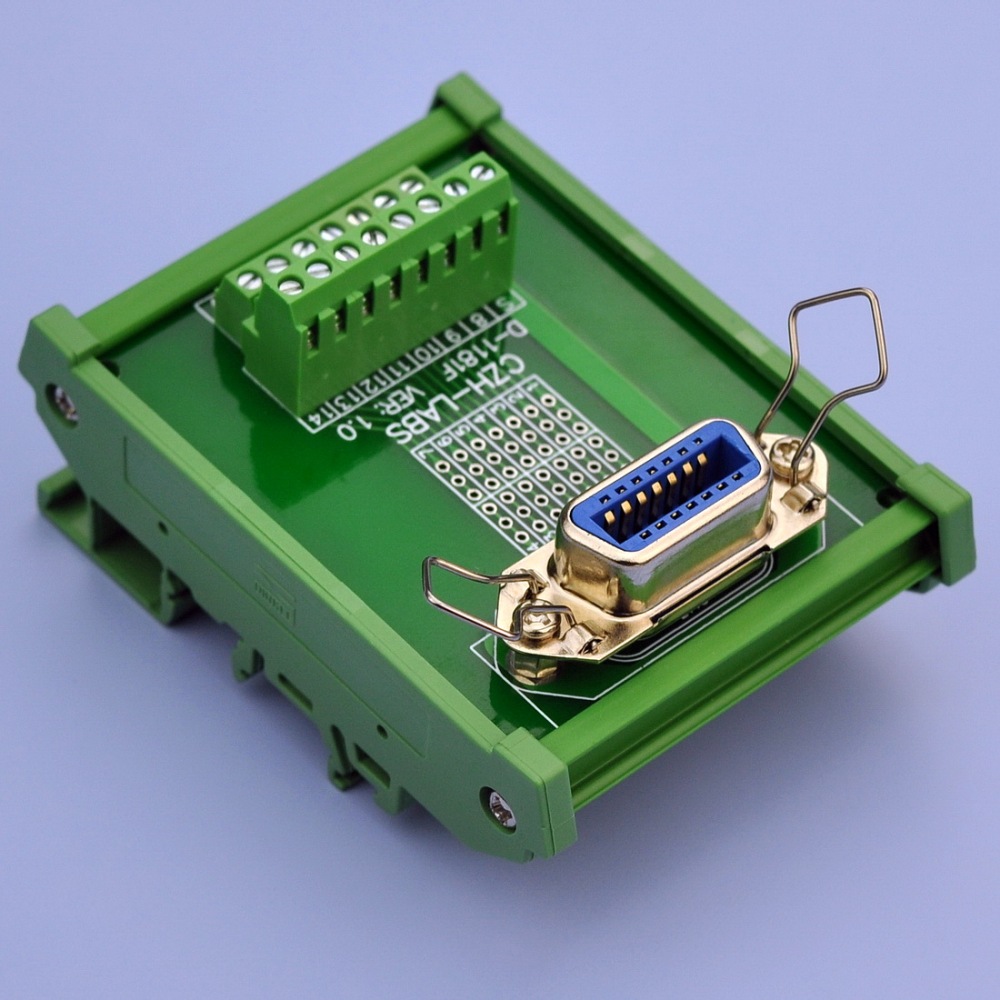

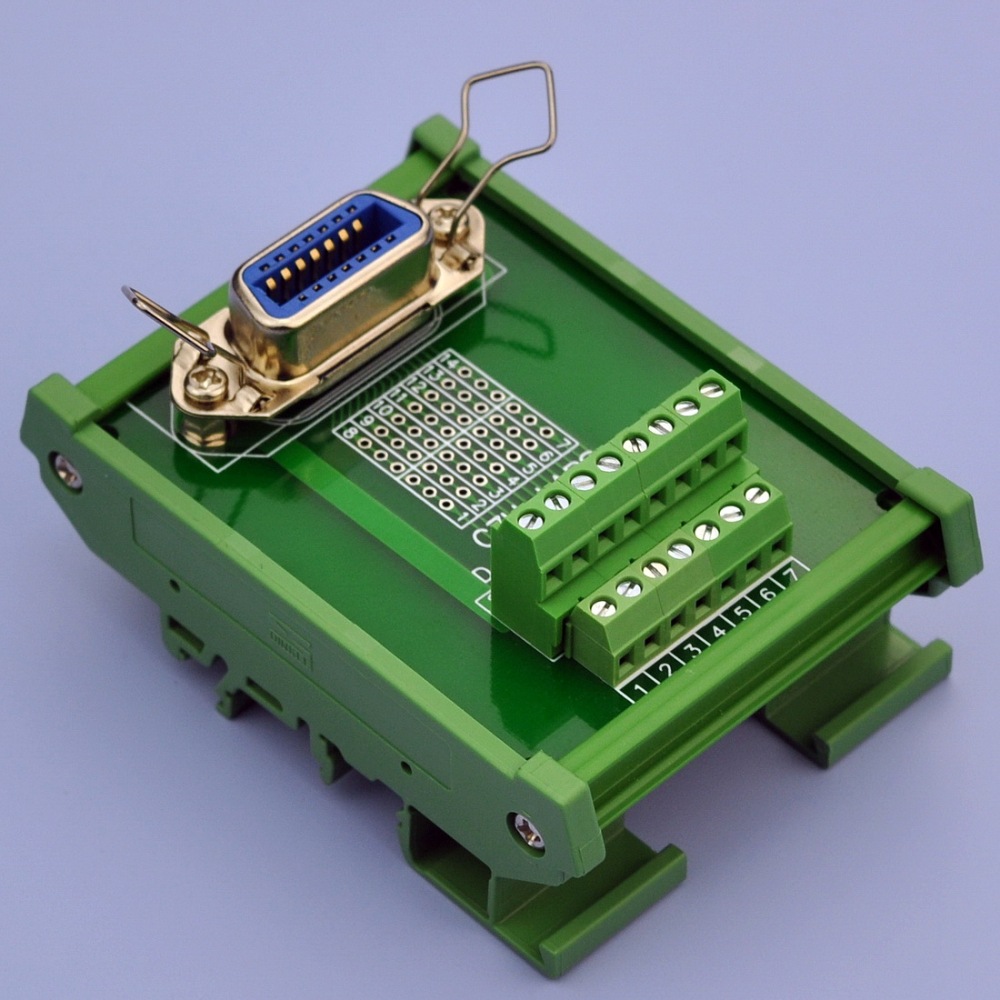

CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.

SKU: D-1181FVT
$19.99 $19.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $19.99 = $19.99
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
1/1
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • CZH-LABS DIN Rail Mount 14-Pin 0.085" Centronics Female Ribbon Connector Interface Module, Screw Terminal Block Breakout Board.
  • Description

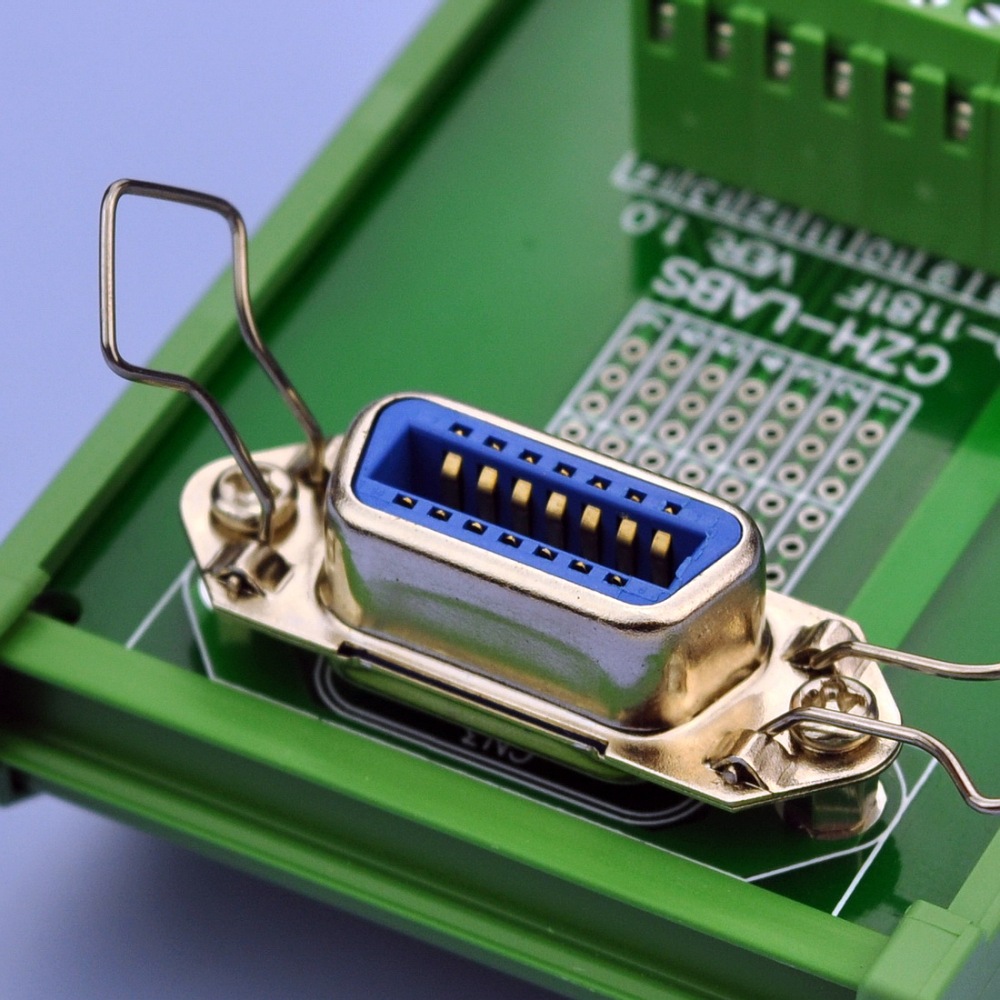

14-Pin Centronics Vertical Female Connector. 2 rows contacts, pitch 2.16mm / 0.085".

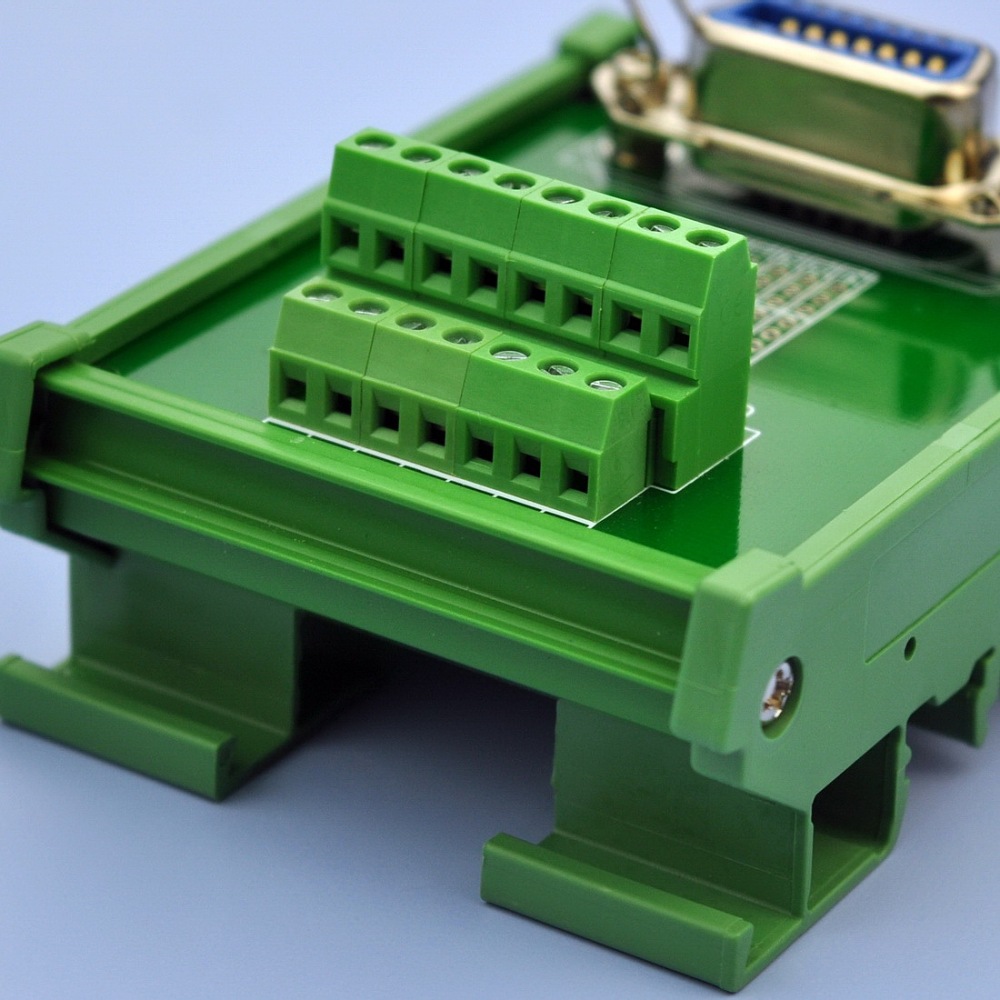

Pitch 3.81mm / 0.15" screw terminal block, wire range 26-16AWG, strip length 5mm / 0.2", Metric M2 slotted screw.

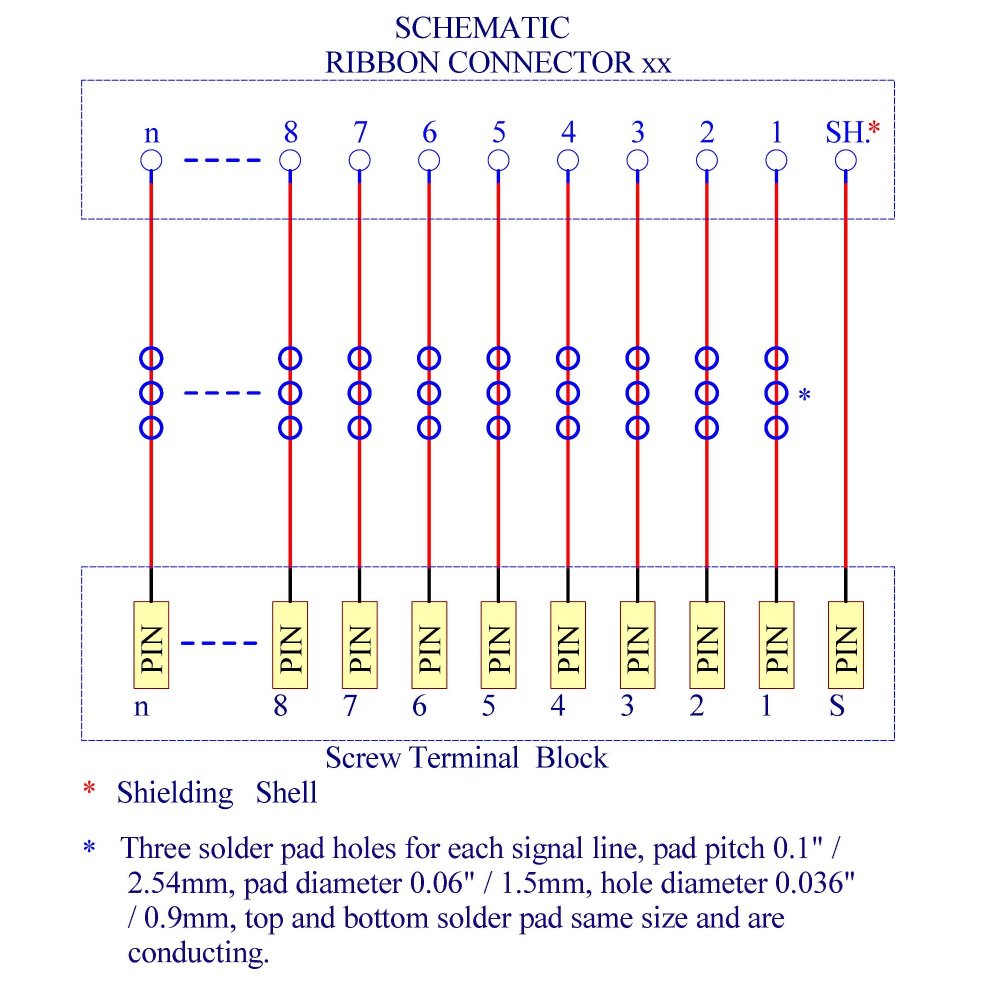

Solder connection holes 3 per line, supports addition of 2.54mm / 0.1" pin headers.

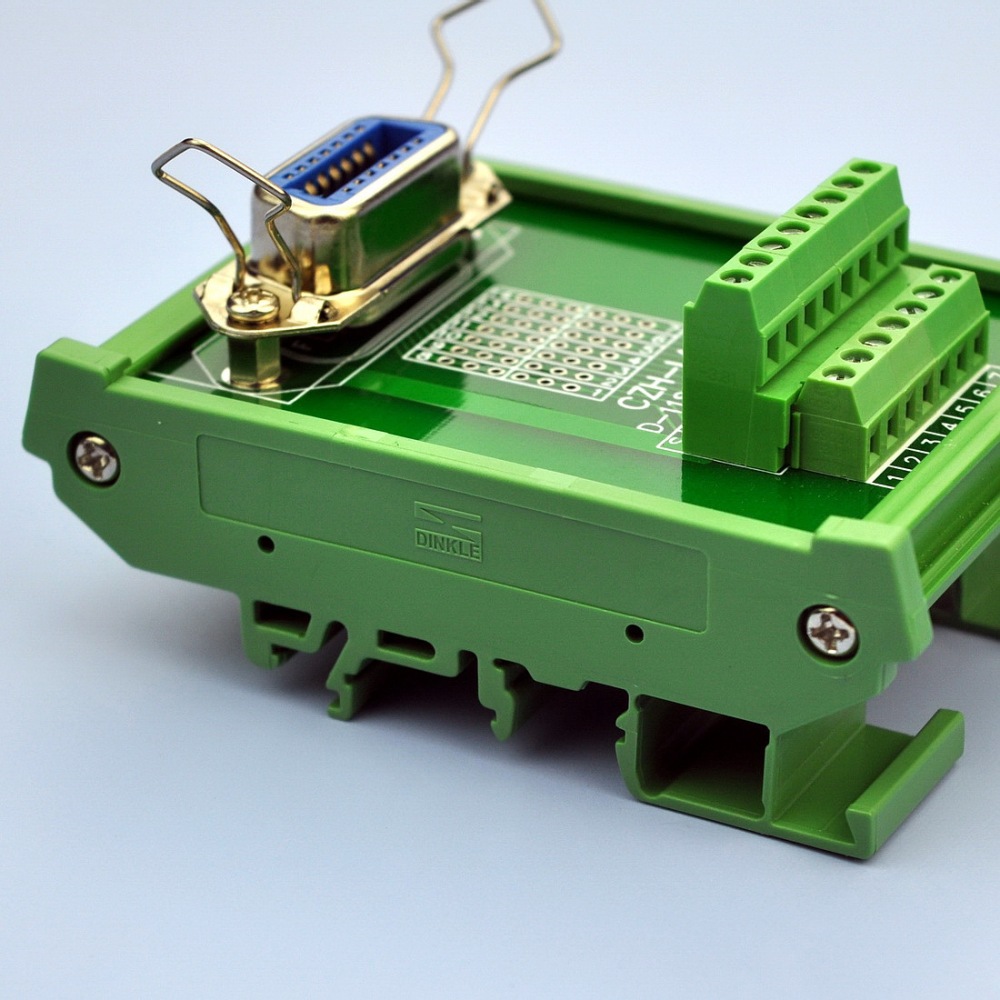

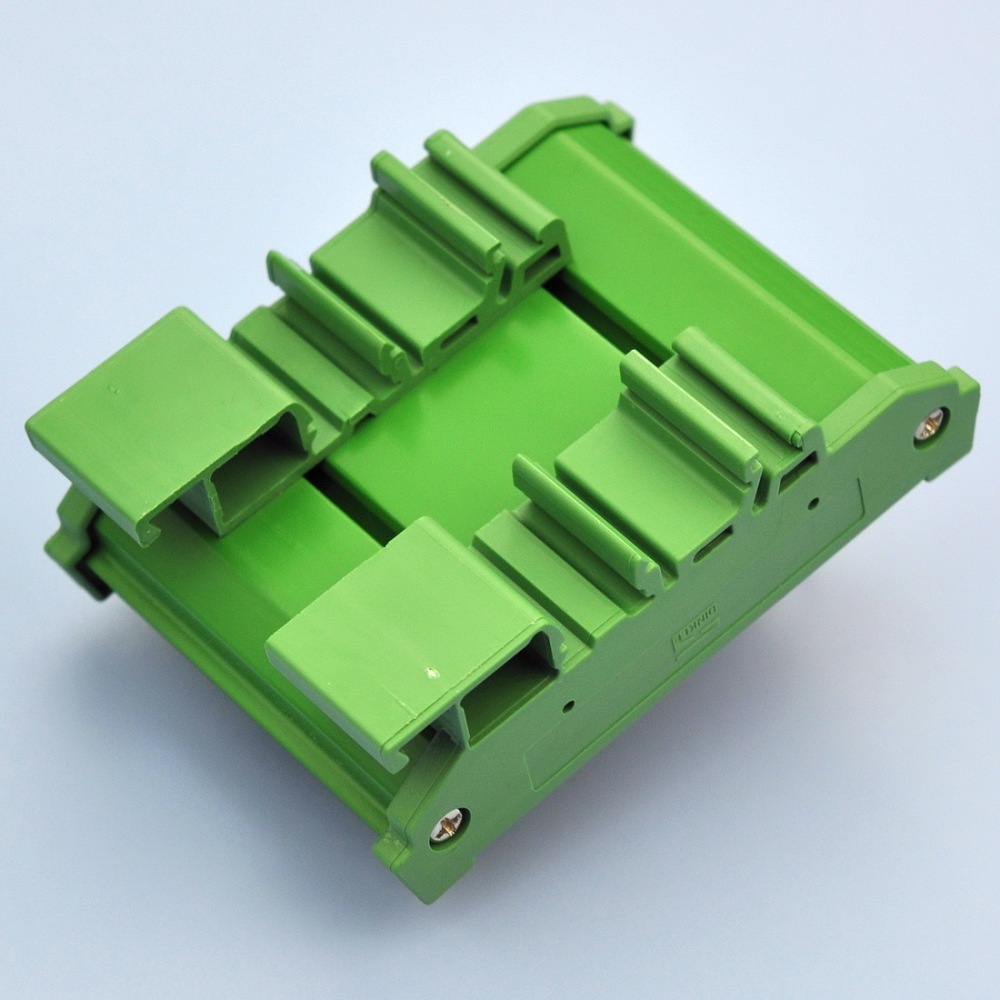

Taiwan fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
