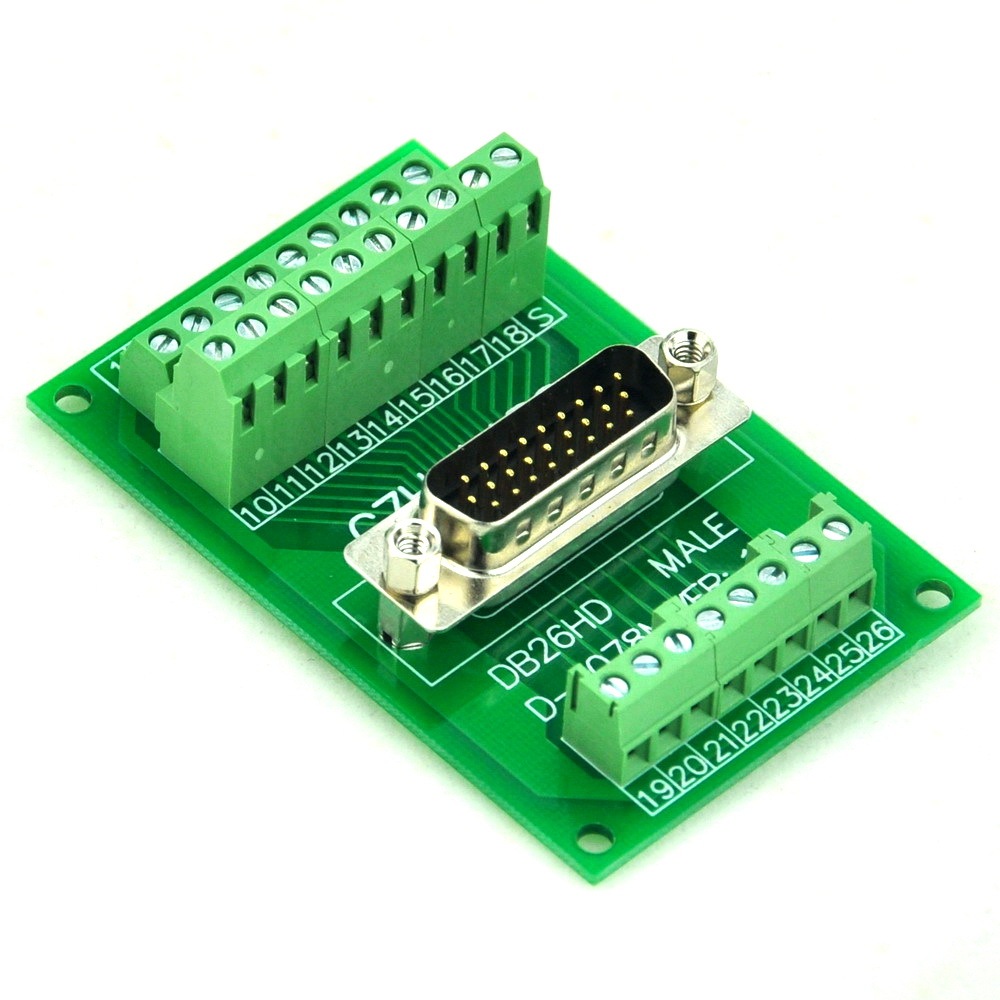

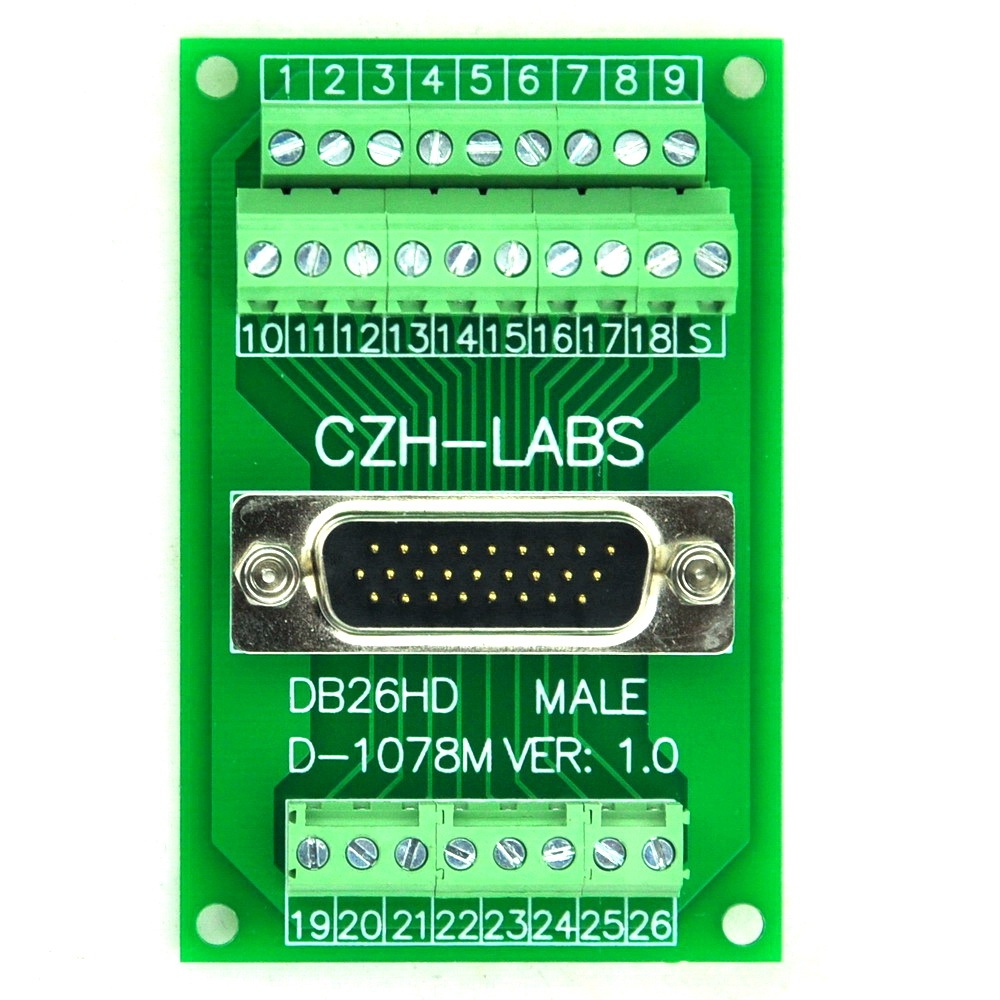

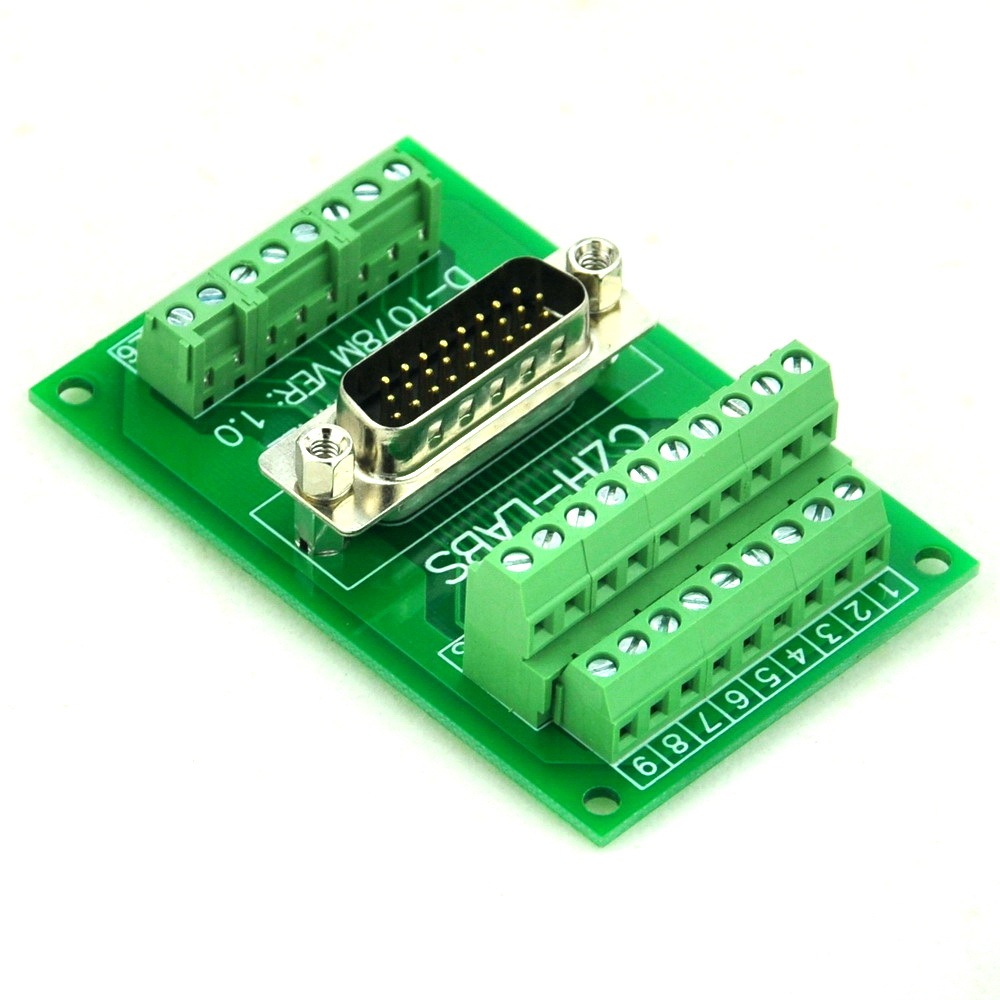

CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.

SKU: D-1078M
$12.99 $12.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $12.99 = $12.99
save $0.00
Add to Favorites
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
1/1
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • CZH-LABS D-SUB DB26HD Male Header Breakout Board, DSUB.
  • Description

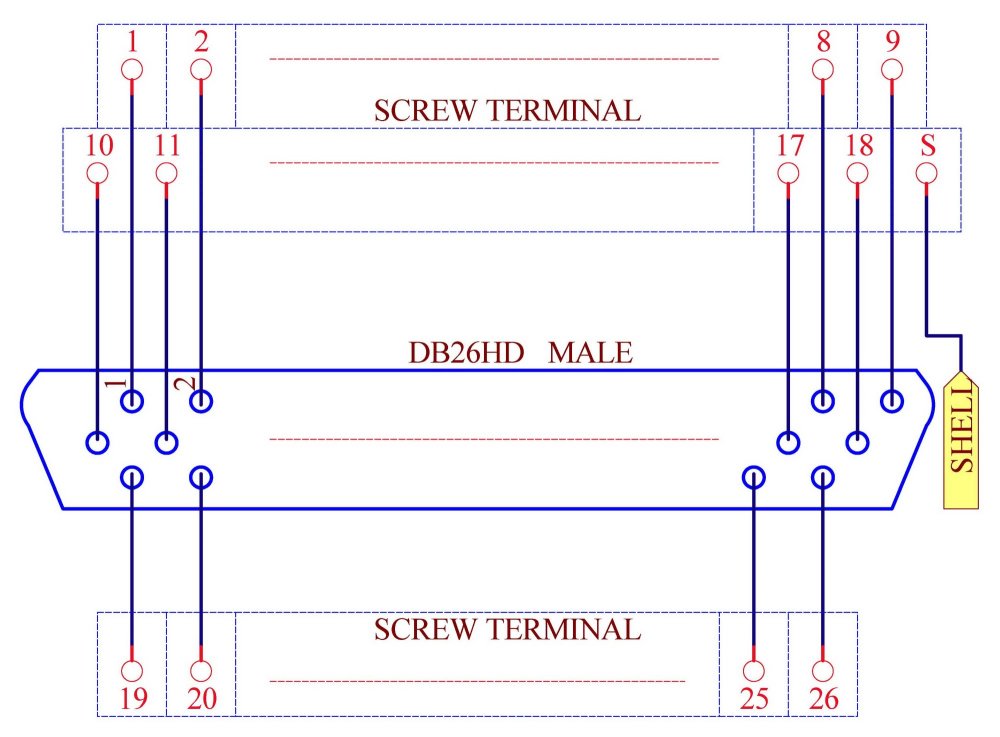

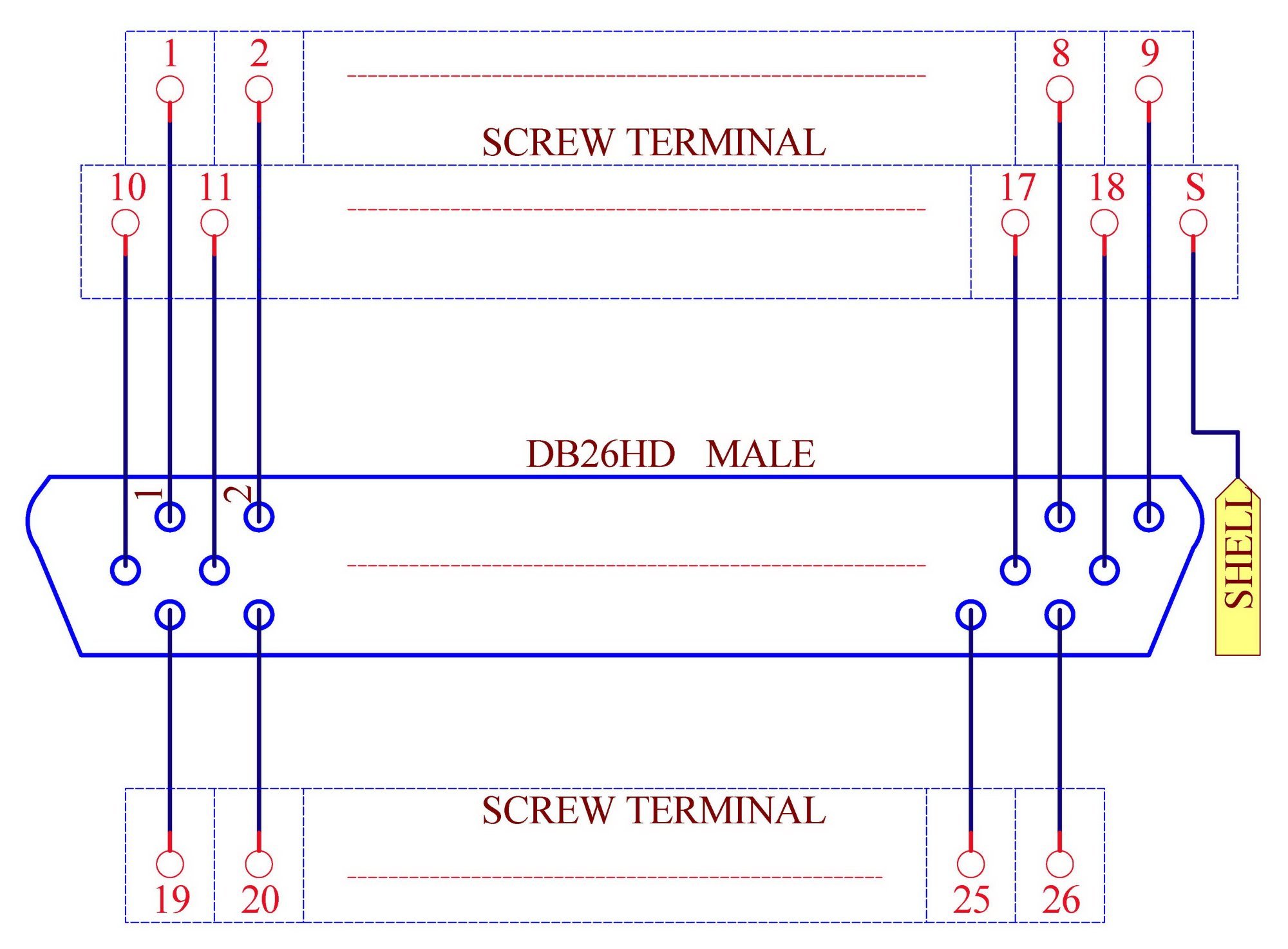

Standard DB26HD Male header connector.
Pitch 3.81mm/0.15" miniaturization screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
