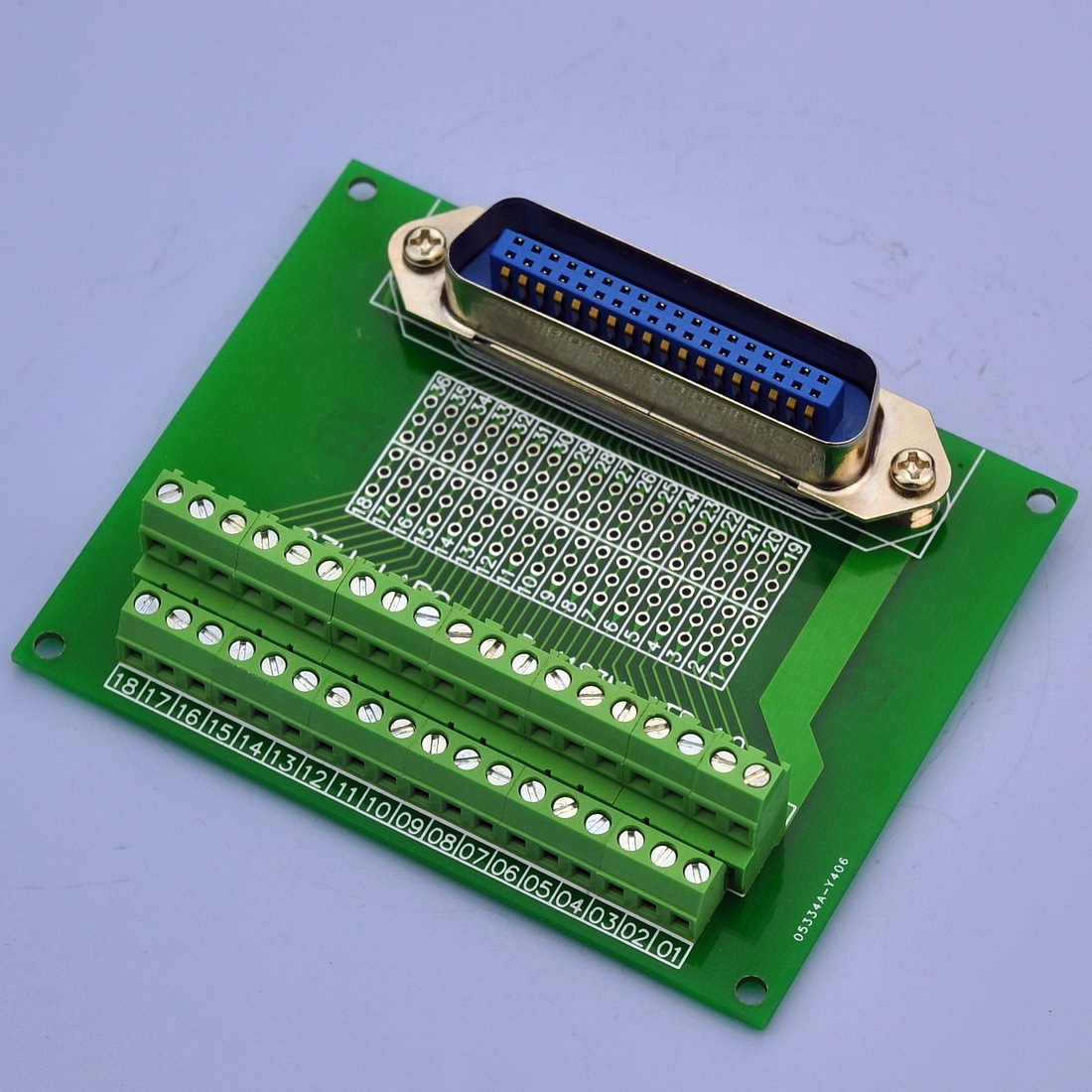

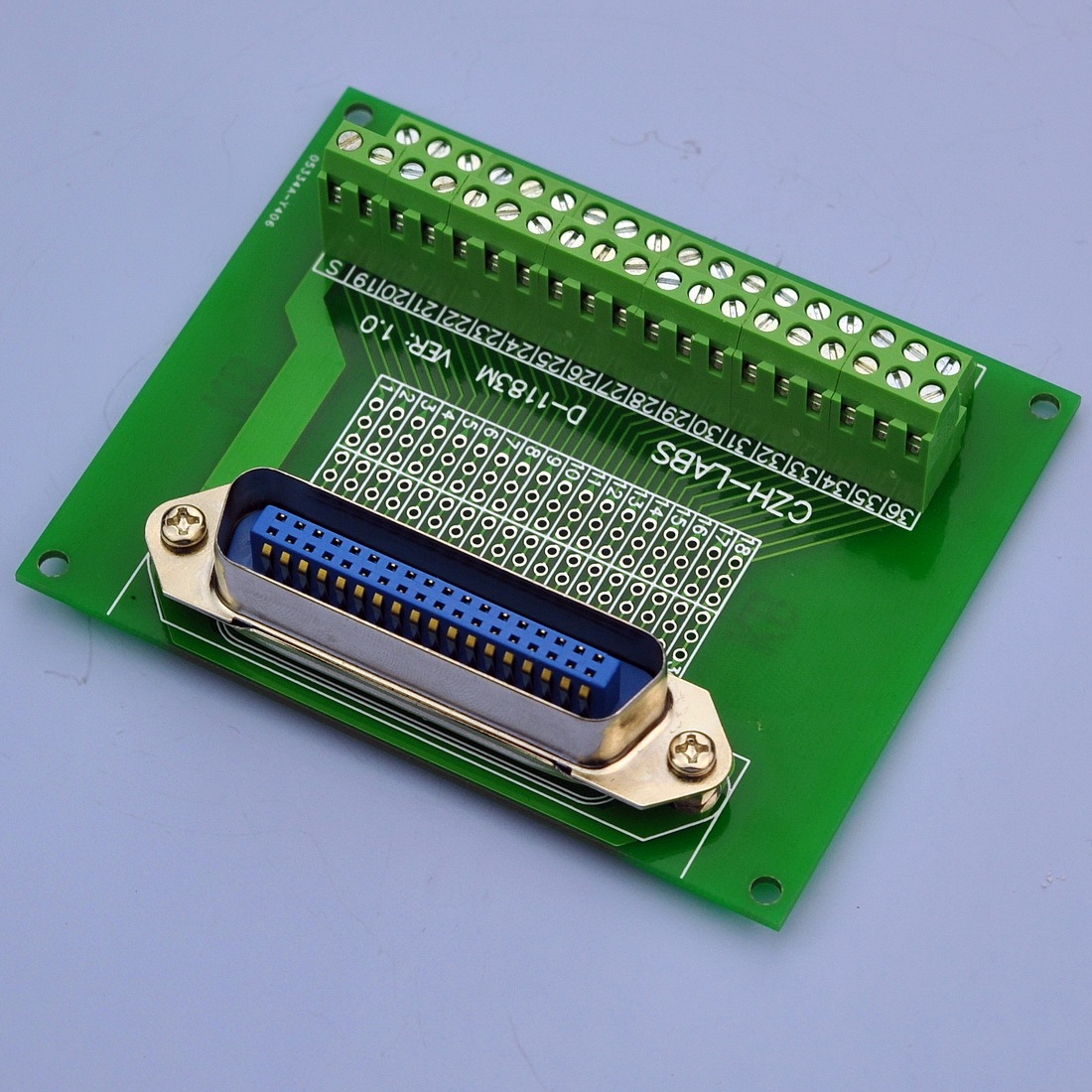

CZH-LABS 36-Pin 0.085" Centronics Vertical Male Ribbon Connector Screw Terminal Block Breakout Board.

Name: CZH-LABS 36-Pin 0.085" Centronics Vertical Male Ribbon Connector Screw Terminal Block Breakout Board.
Brand: Xiken Tech
SKU: D-1183MV
Price: 26.99 USD
Availability: InStock

SKU: D-1183MV

$26.99 ~~$26.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

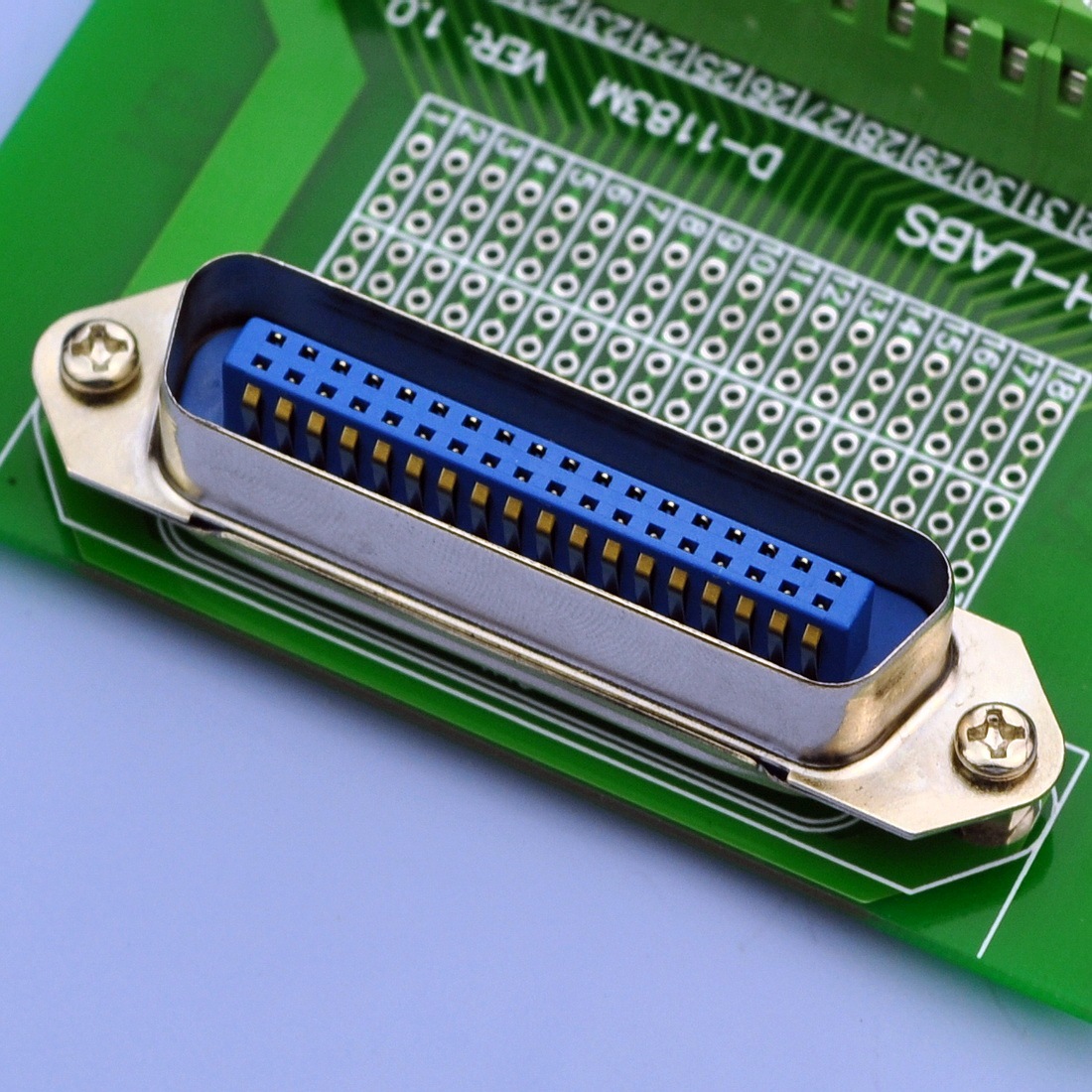

36-Pin Centronics Vertical Male Connector. 2 rows contacts, pitch 2.16mm / 0.085".

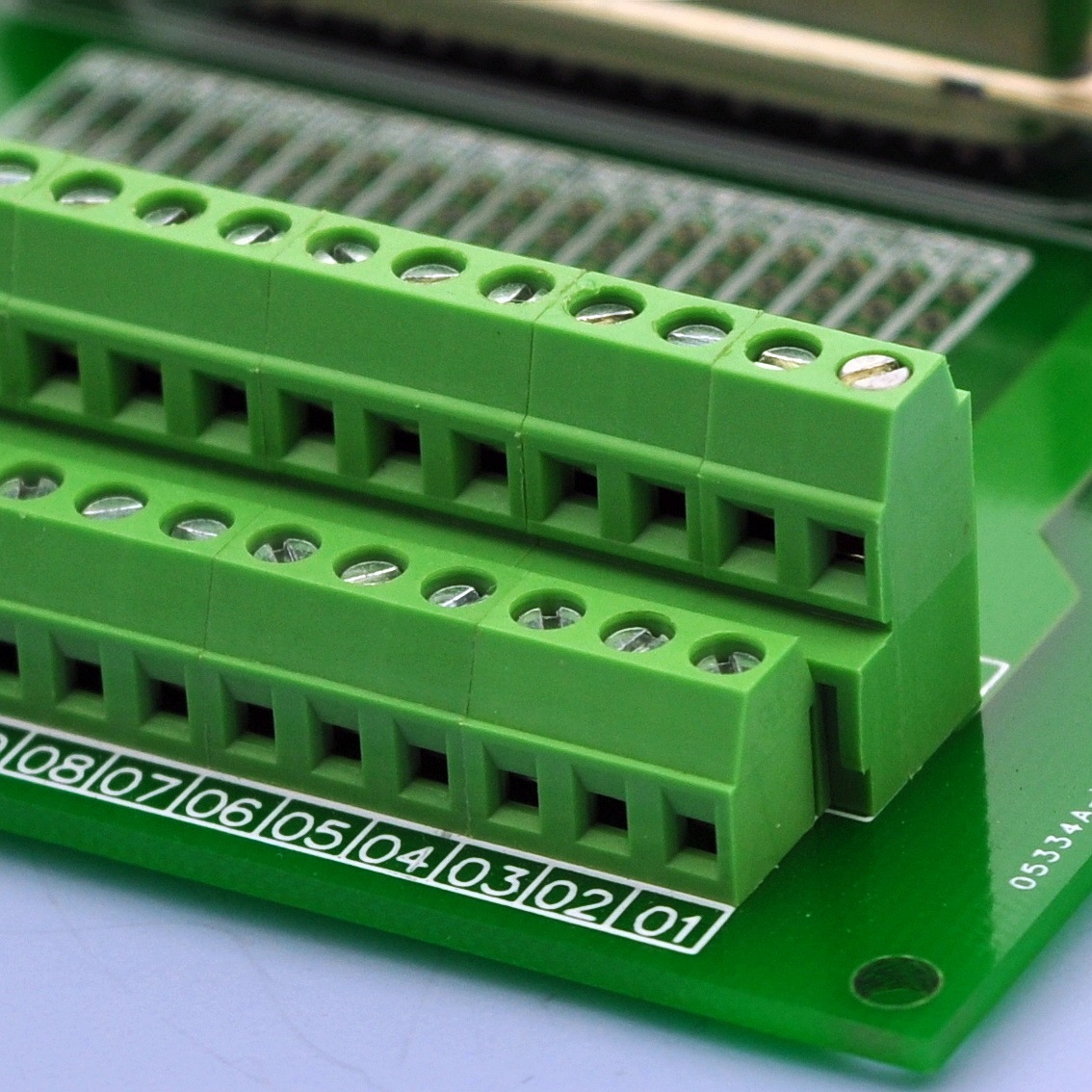

Pitch 3.81mm / 0.15" screw terminal block, wire range 26-16AWG, strip length 5mm / 0.2", Metric M2 slotted screw.

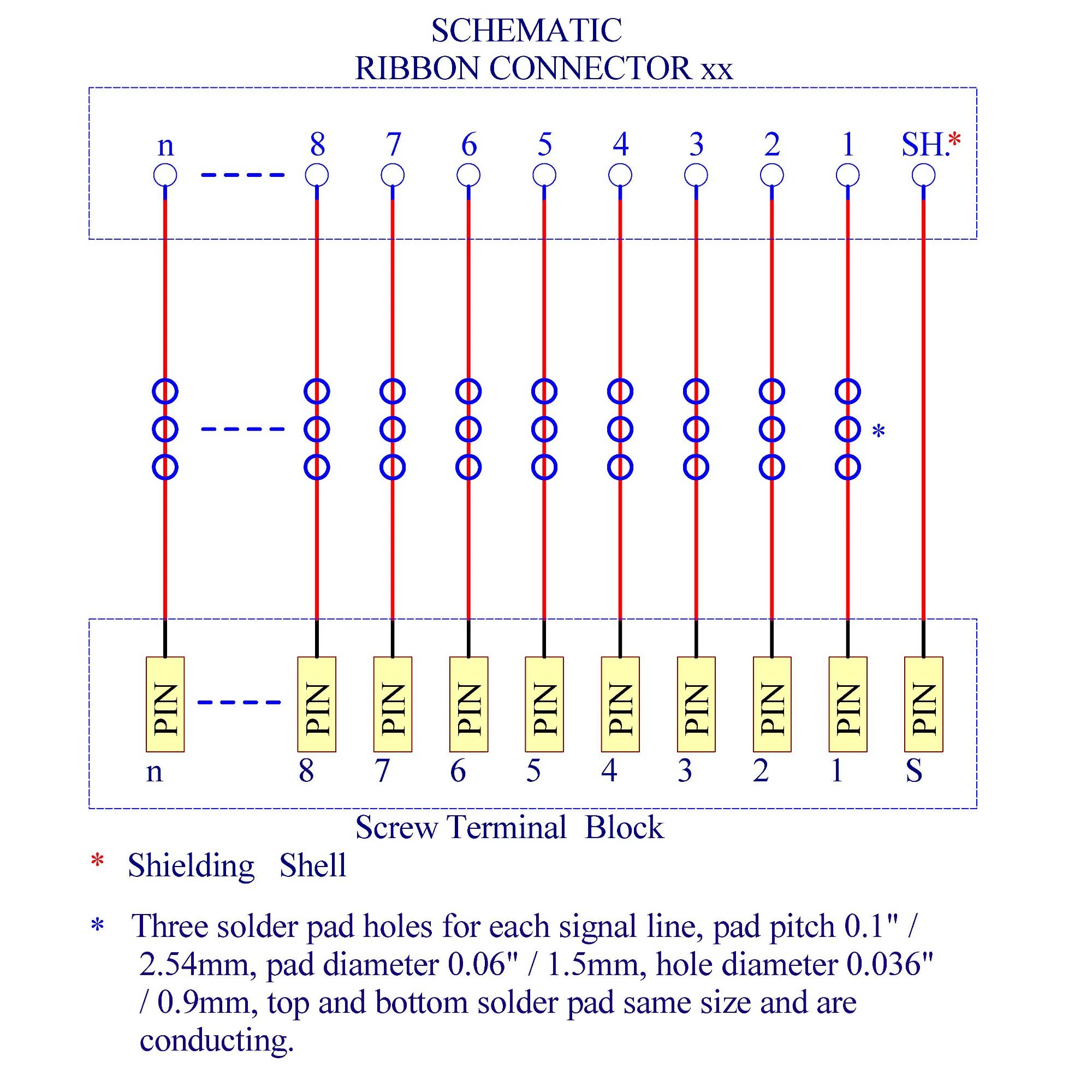

Solder connection holes 3 per line, supports addition of 2.54mm / 0.1" pin headers.

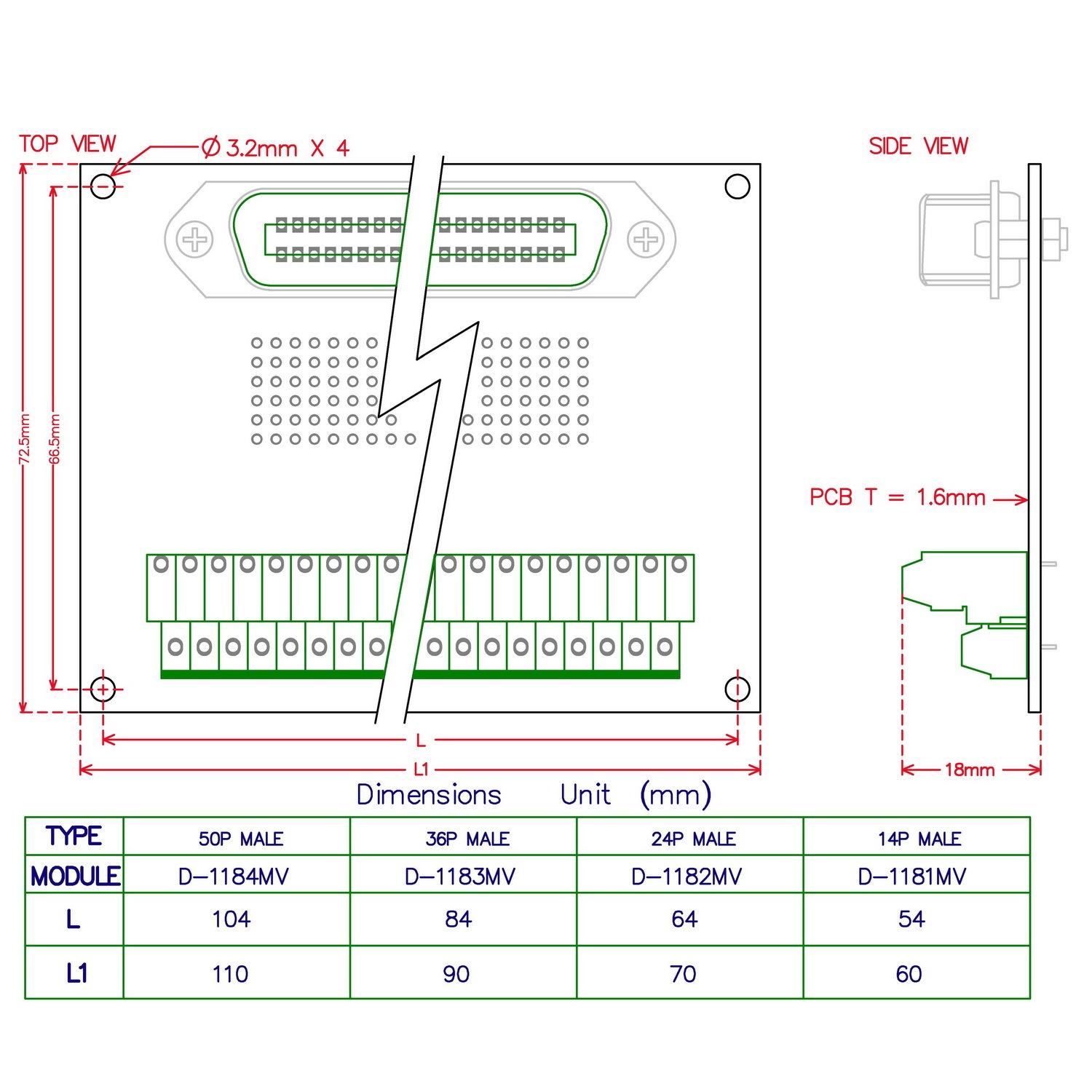

PCB dimensions: 72.5mm x 90mm (W x L), FR-4 fiber glass PCB, dual copper layers.

CZH-LABS 36-Pin 0.085" Centronics Vertical Male Ribbon Connector Screw Terminal Block Breakout Board.
