CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.

SKU: D-1012/24V
$9.99 $9.99
CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $9.99 = $9.99
save $0.00
Add to Favorites
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
1/1
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • CZH-Labs 24V Passive SPST-NO 30Amp Power Relay Module Board.
  • Description

Passive 1 Channel SPST-NO 30 Amp Power Relay Module.
Part Number: MD-D1012/24V

This item has been assembled, and electrical test passed.
TE T9AS1D12-24 30Amp power relay.
High quality terminal block connectors (output is real 30Amp high power terminal block).
LED indicator for each relay channel.
FR-4 Fiber glass PCB (Double Layer).

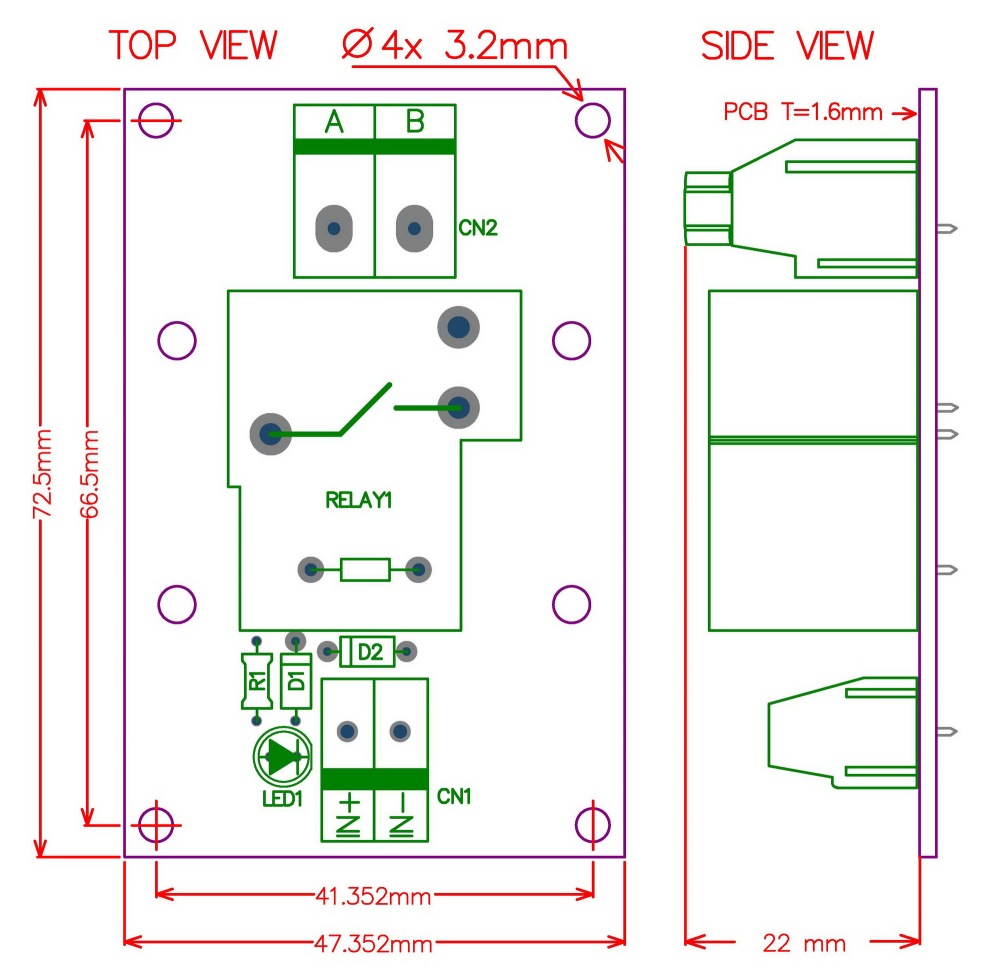

Size: 24mm x 72.5mm x 47.35mm.
Relay characteristic:
Rated Load (Resistive load): 30A at 250VAC, 20A at 28VDC.
Coil action voltage: DC 19~29V, recommended DC 24V.
Coil action current: 40mA, at DC24V.

Terminal block characteristic:
Input terminal:
Wire range 26-12AWG
Mechanical Torque 0.4Nm(3.5Lb-In.)
Strip length 7mm
Dimensions Pitch 5.0mm(.197")
Screws M2.5
Rated current 16 Amp
Output terminal:
Wire range 26-10AWG
Mechanical Torque 0.5Nm(4.4Lb-In.)
Strip length 8mm
Dimensions Pitch 7.62mm(.3")
Screws M3
Rated current: 30 Amp
