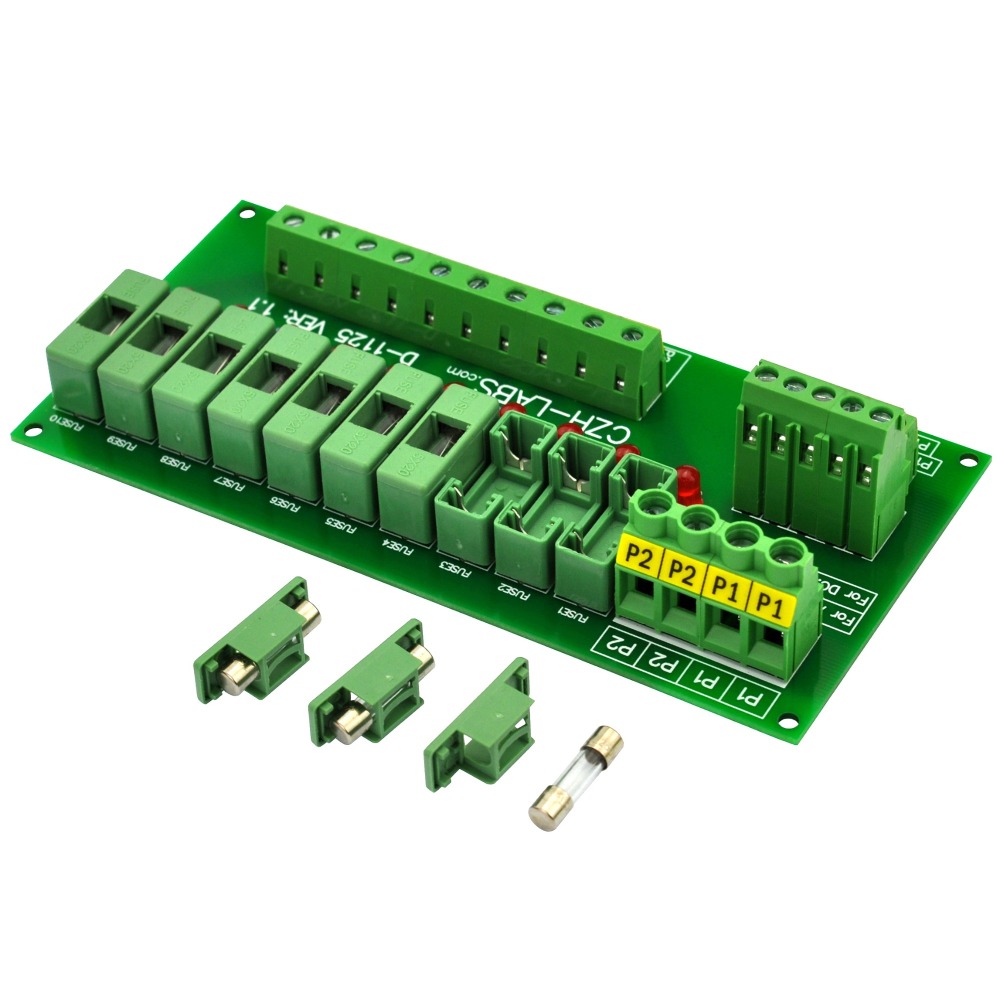

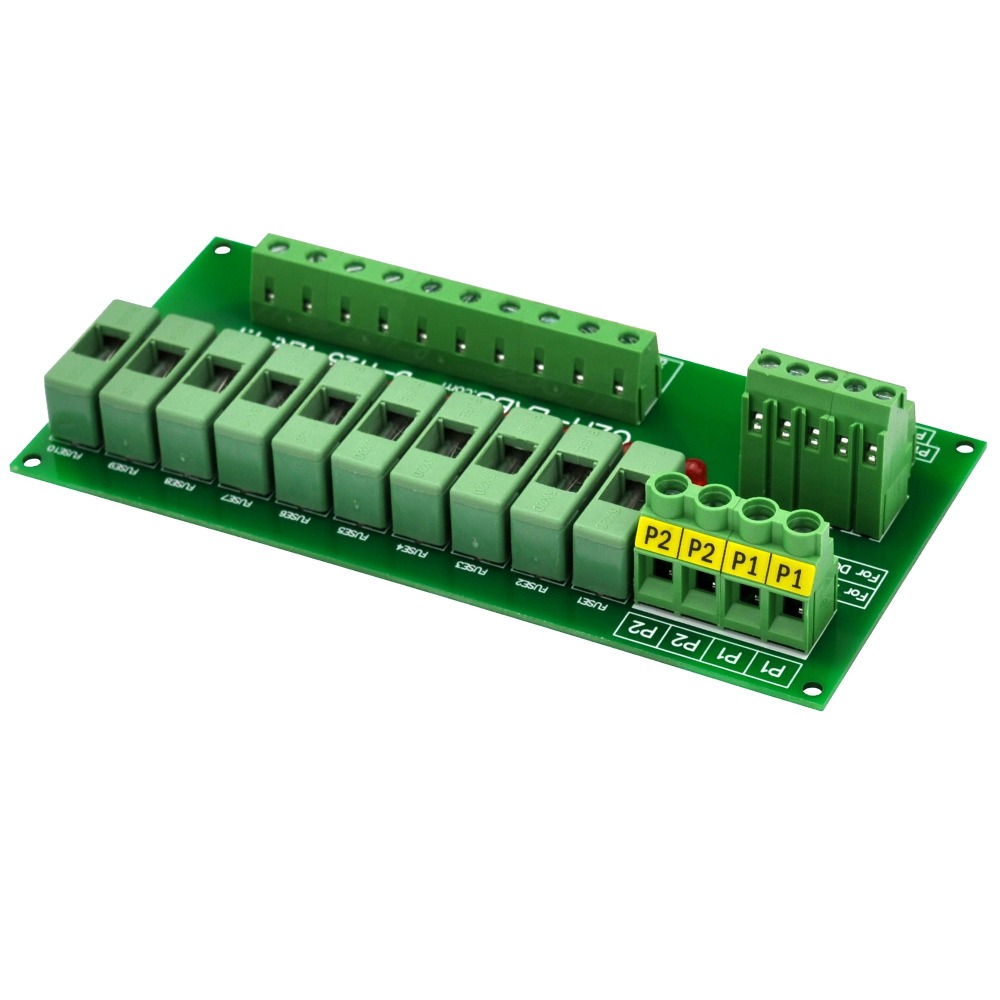

CZH-LABS 180~250VAC Panel Mount 10 Position Power Distribution Fuse Module Board.

Name: CZH-LABS 180~250VAC Panel Mount 10 Position Power Distribution Fuse Module Board.
Brand: Xiken Tech
SKU: D-1125B
Price: 25 USD
Availability: InStock

SKU: D-1125B

$25.00 ~~$25.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Panel Mount Power Distribution Fuse Module Board.

Specification:
Work voltage: 180~250Vac, total current rating 40Amp.

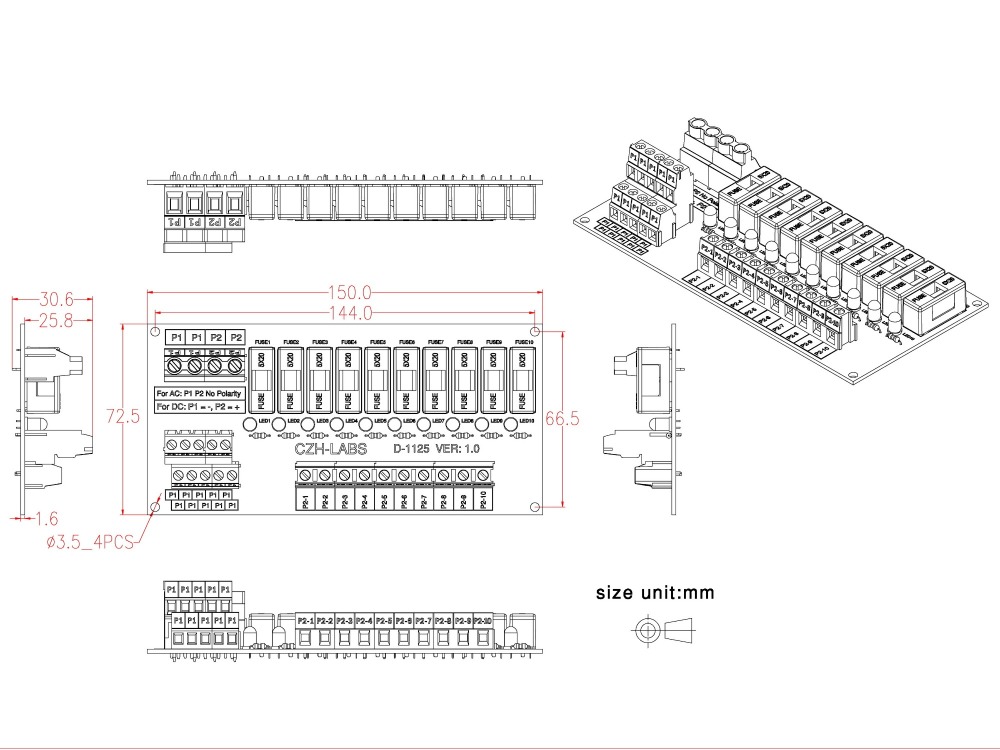

Dimensions: 150mm x 72.5mm x 29mm (W x L x H).

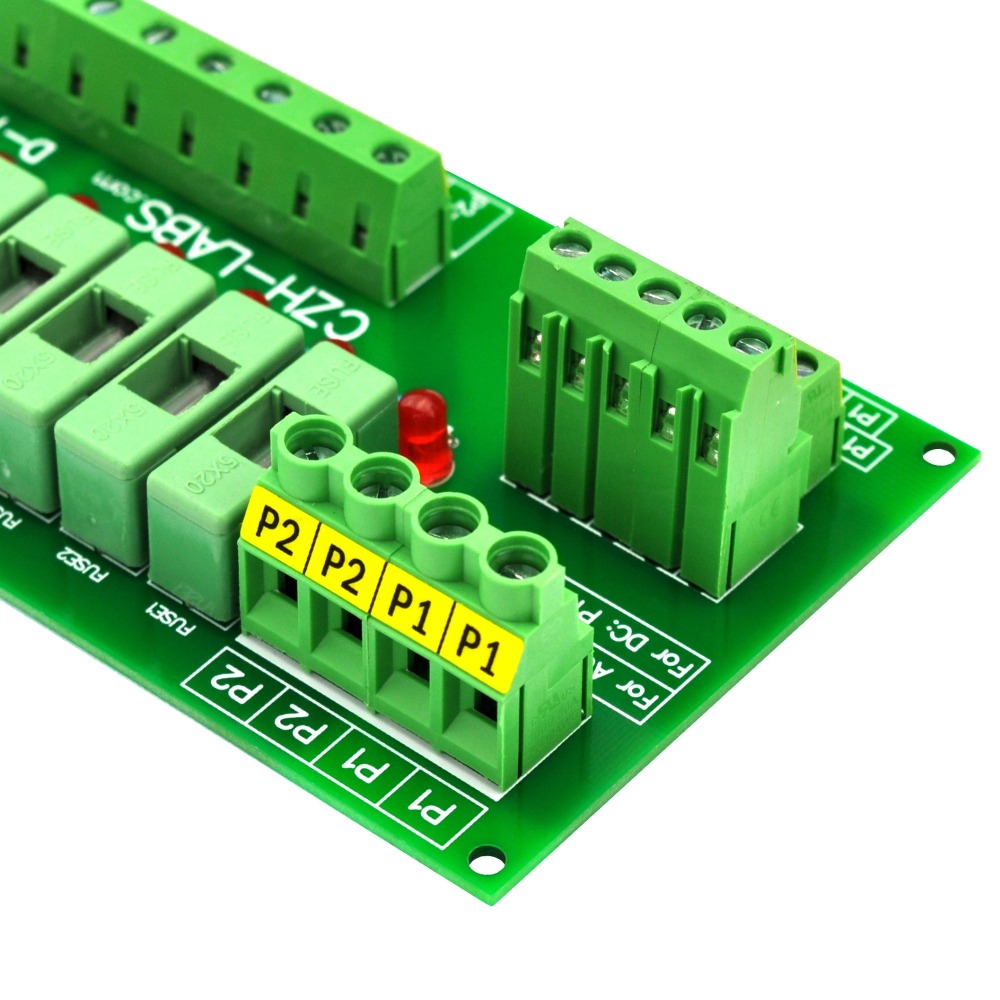

Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.

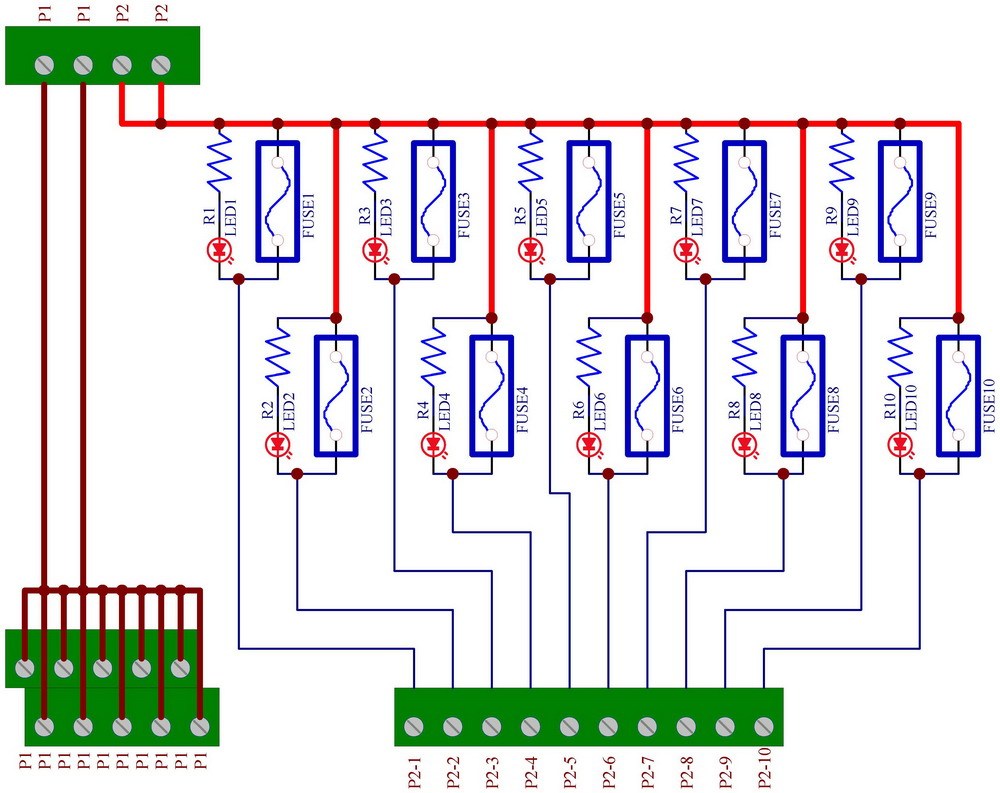

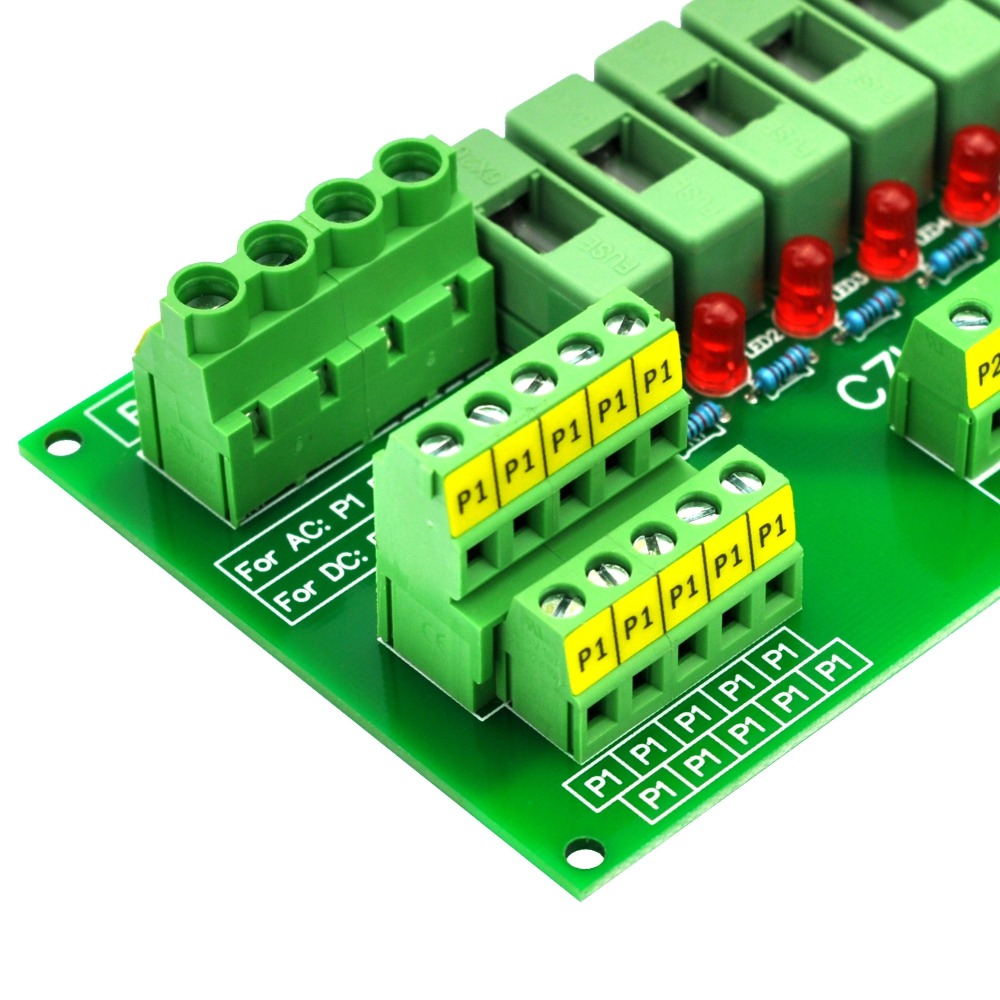

P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

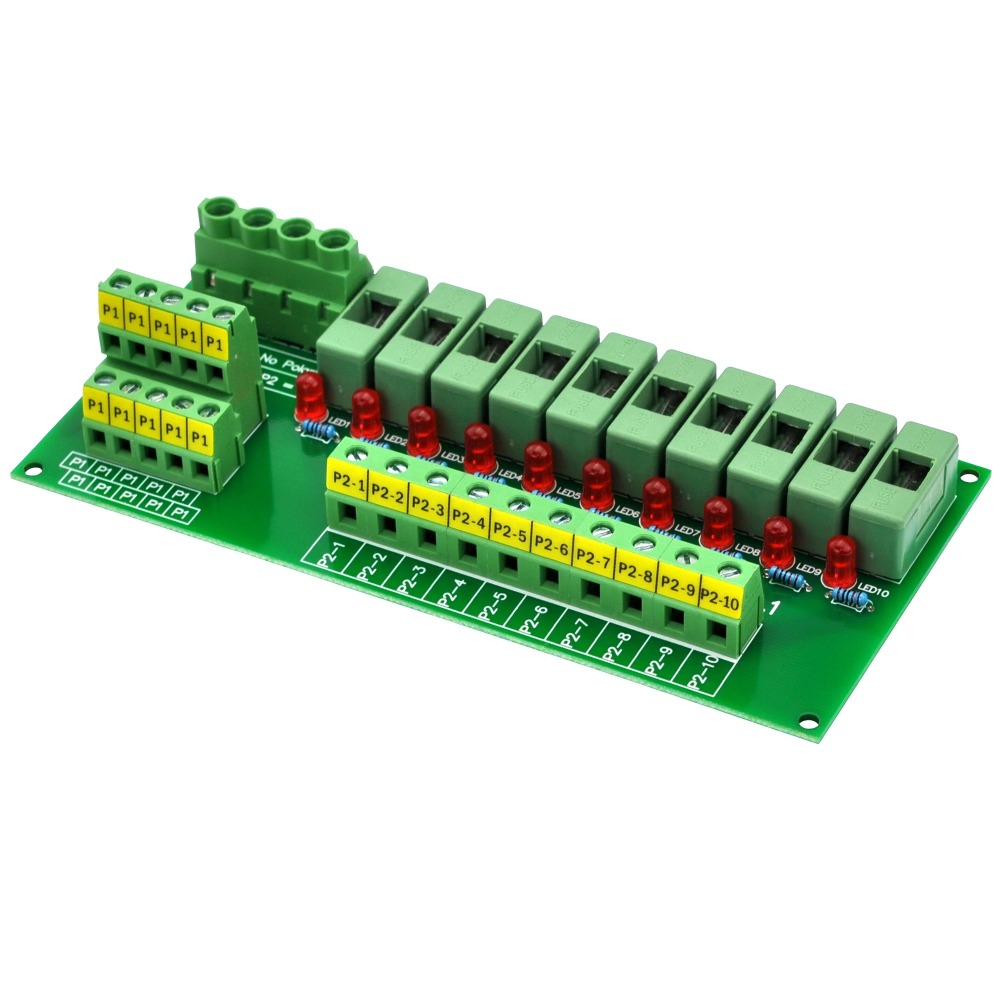

P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 6.3A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

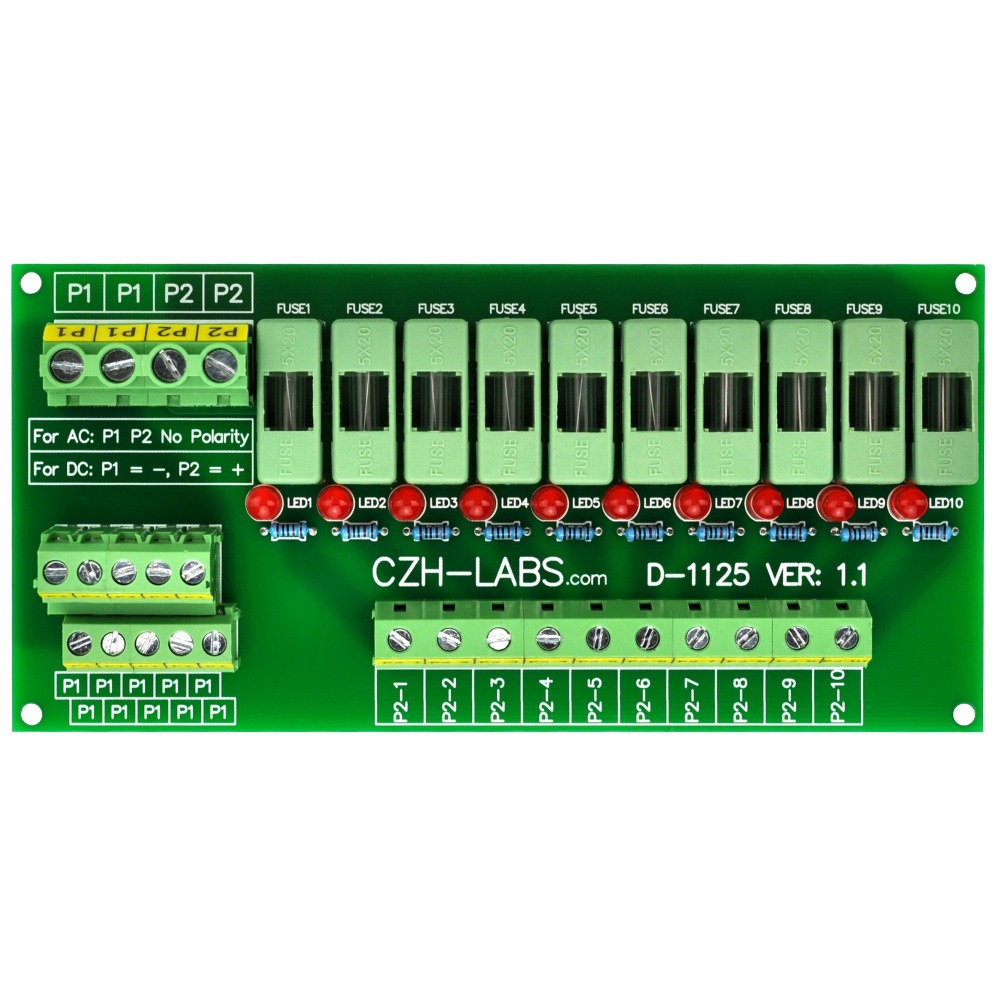

Fuse holders for 5x20mm(DxL) tube fuse, factory-installed fuses T6.3Amp. with fuse fail indication function
FR-4 fiber glass PCB, dual copper layers.
