Home > Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
1/1
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
Share:

Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.

SKU: D-1216/110V
$16.00 $16.00
Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $16 = $16
save $0.00
Add to Favorites
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
1/1
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 8 Channels Common 150V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Description

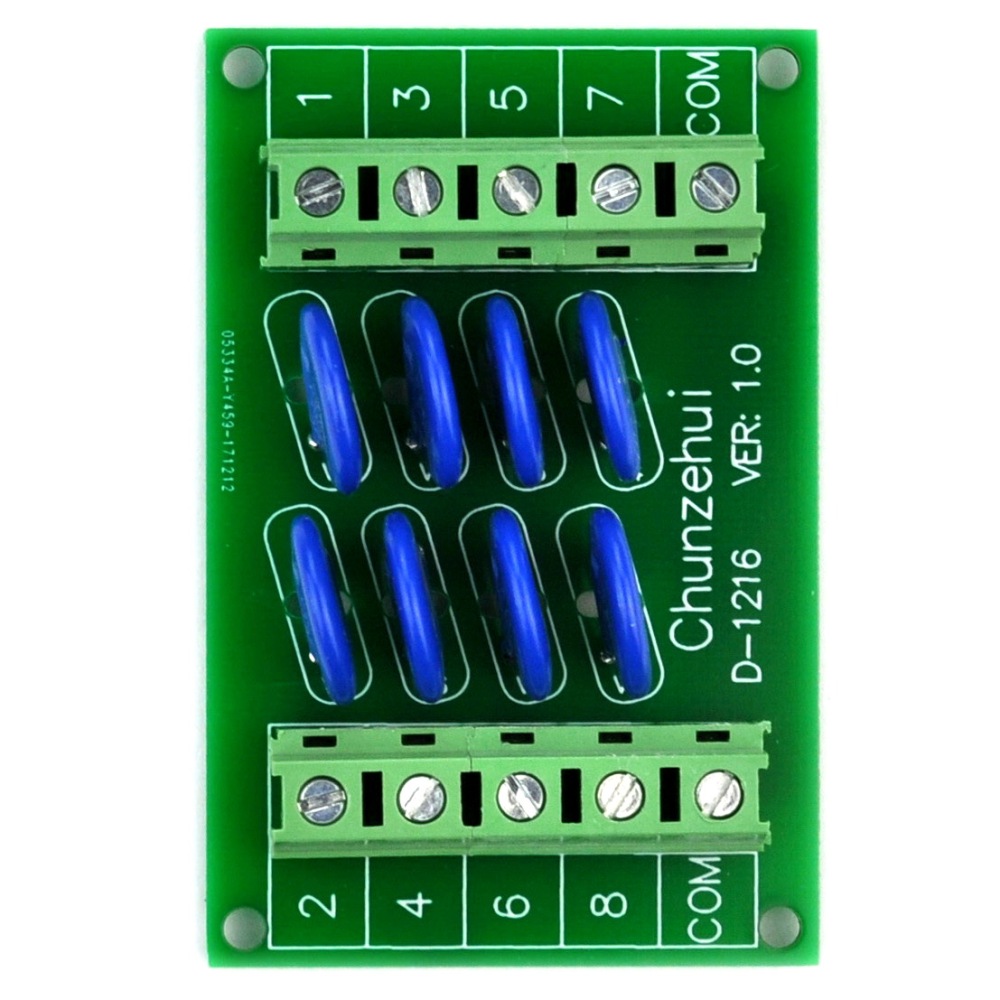

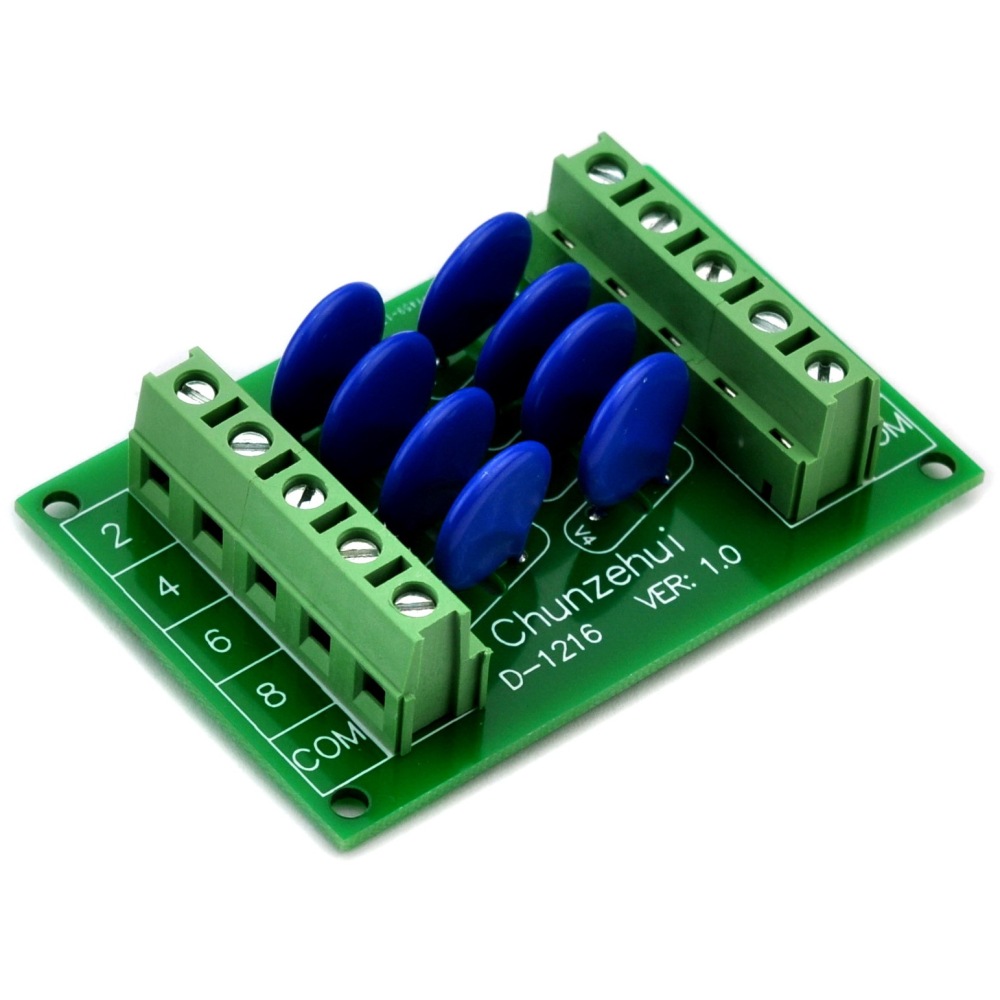

SIOV metal oxide varistor interface module, 8 channels common connect.
Continuous maximum working voltage: 150VAC(RMS) / 200VDC.
Breakdown voltage(at 1mA): 240V, Clamping voltage: 395V(50A), Transient peak current: 4500A.
Ease of connection with the use of screw connection terminal blocks.
High quality FR-4 fiber glass PCB.

Datasheet:

Download
