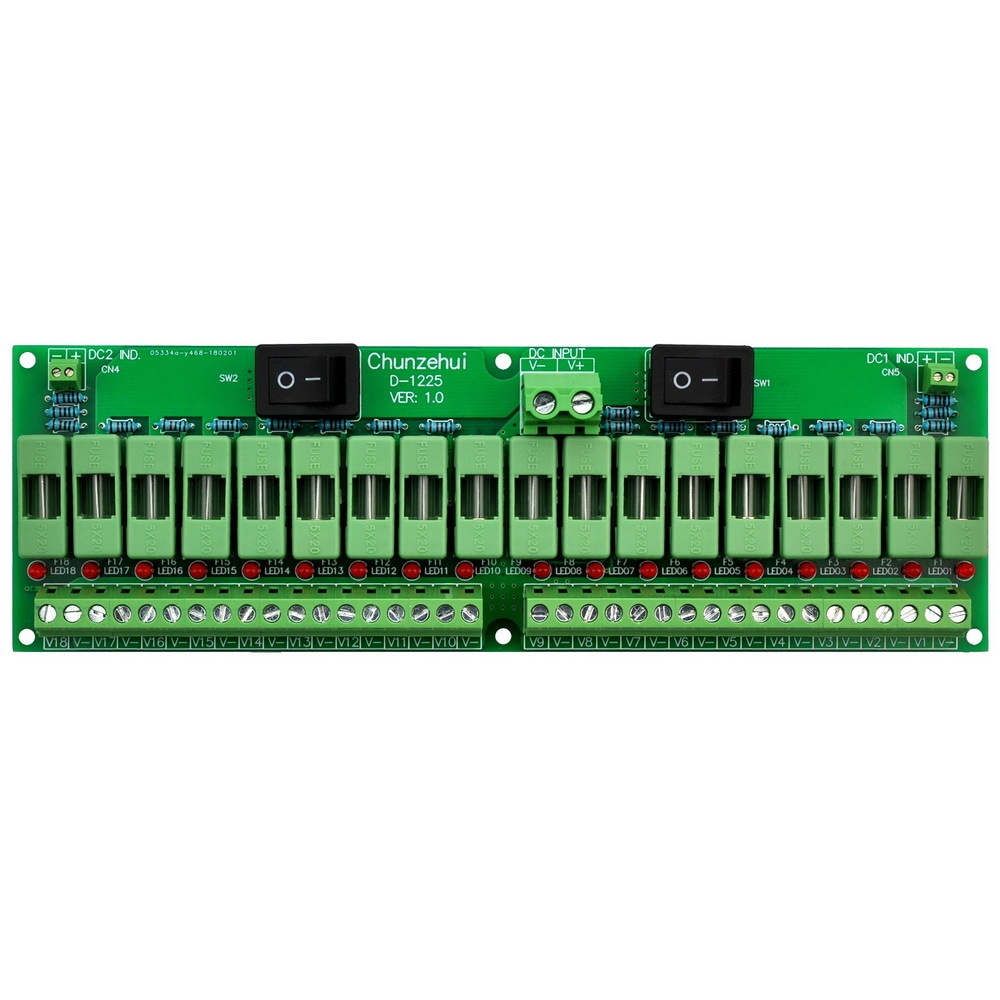

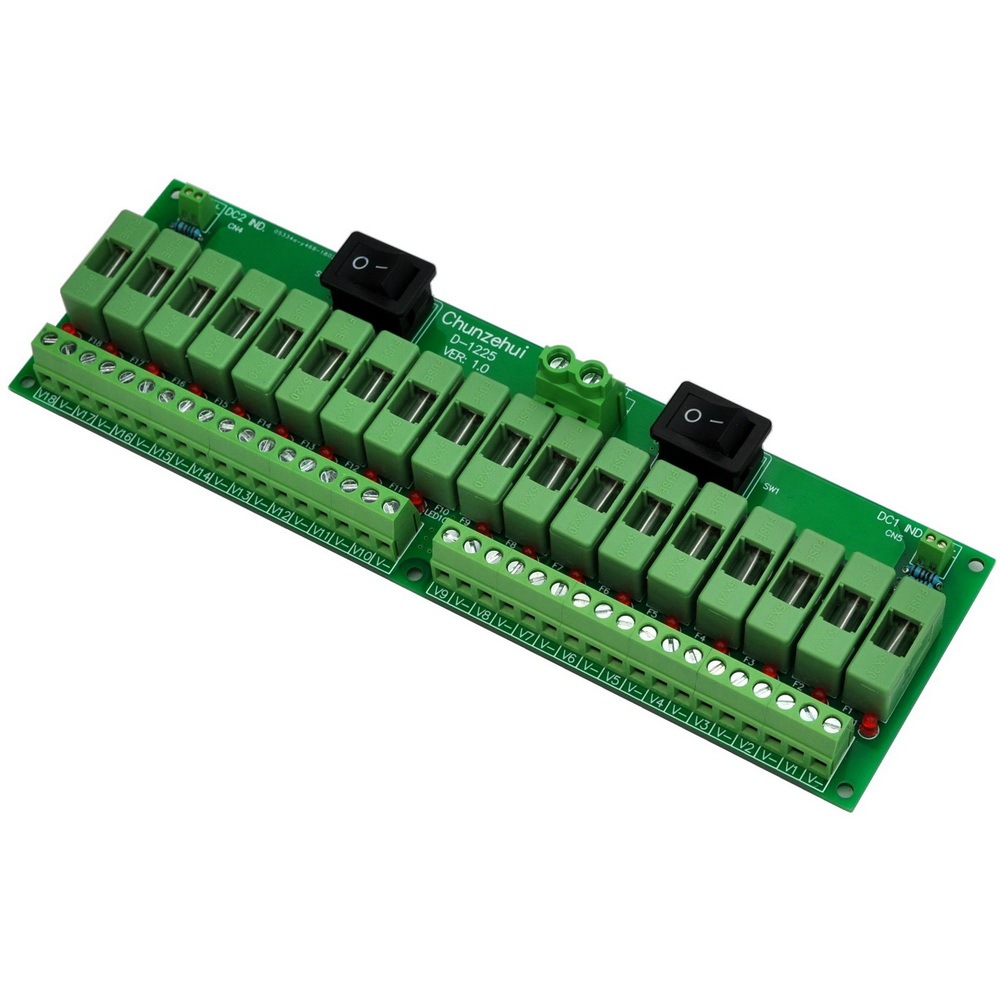

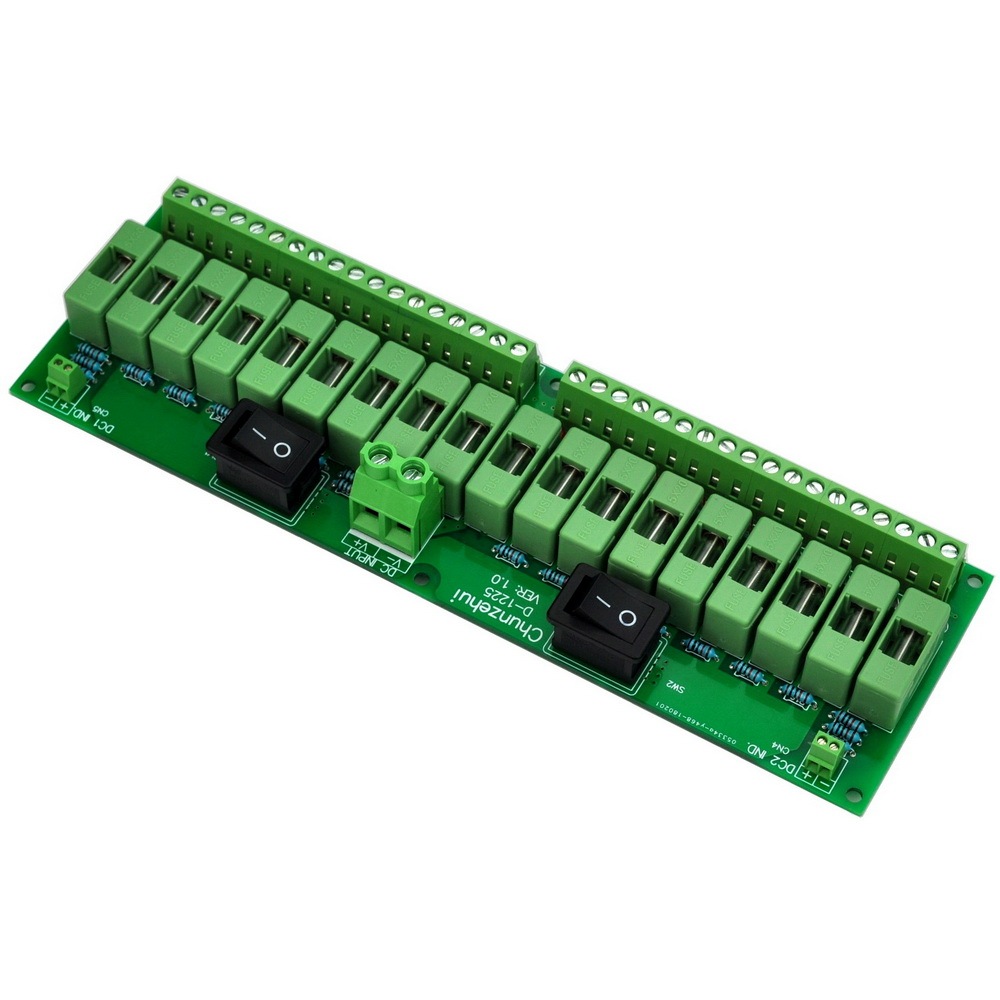

Chunzehui 18 Channels 12V/24V 20A Power Distribution Fuse Module, For CCTV Security Camera ect DIY.

Name: Chunzehui 18 Channels 12V/24V 20A Power Distribution Fuse Module, For CCTV Security Camera ect DIY.
Brand: Xiken Tech
SKU: D-1225
Price: 35 USD
Availability: InStock

SKU: D-1225

$35.00 ~~$35.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

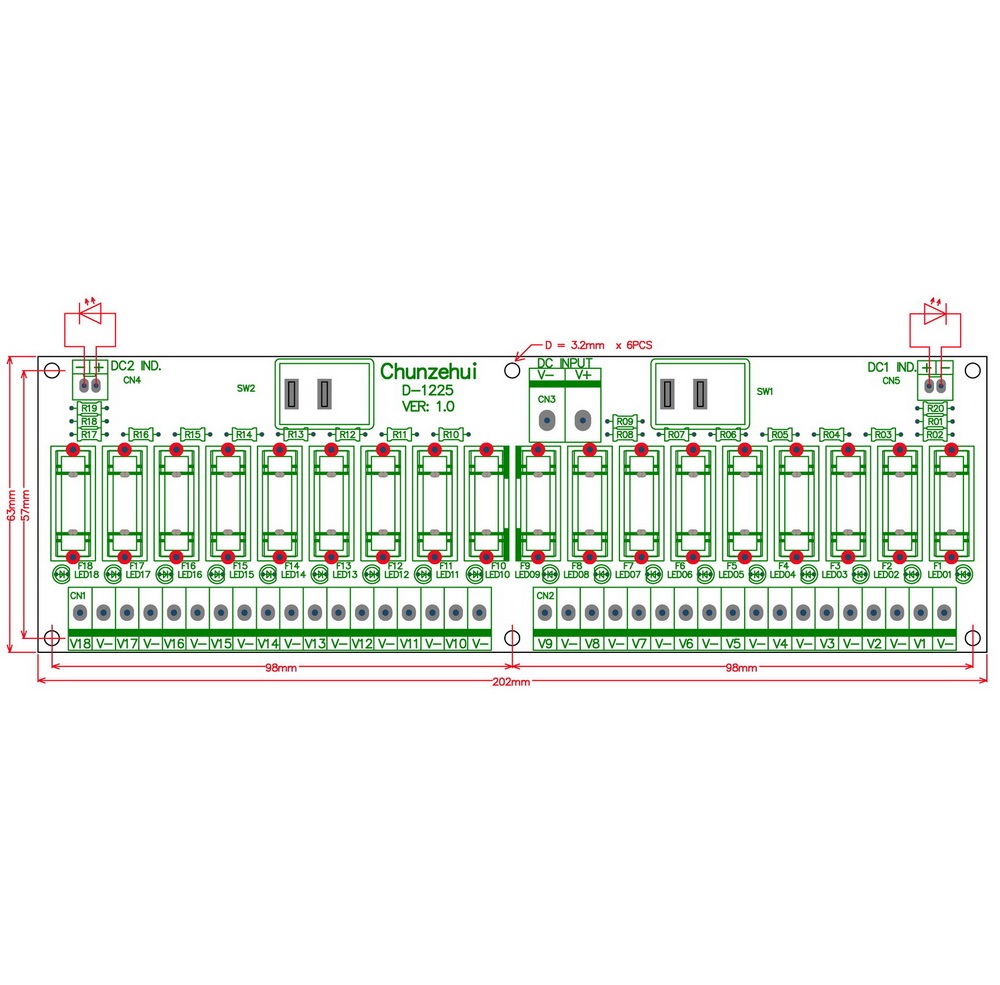

Work voltage: DC 5~24V, total current rating 20 Amp. Dimensions: 202mm x 63mm x 36mm / 7.95" x 2.48" x 1.42" (L x W x H).

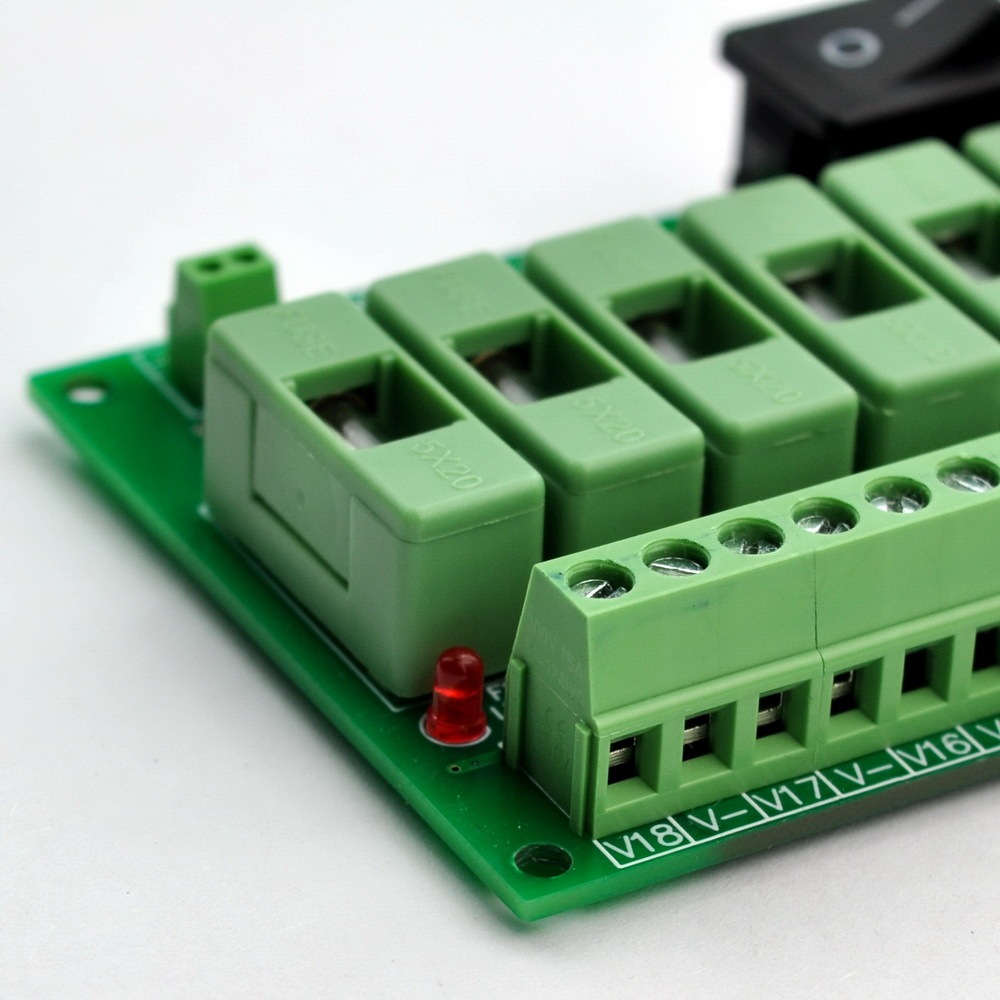

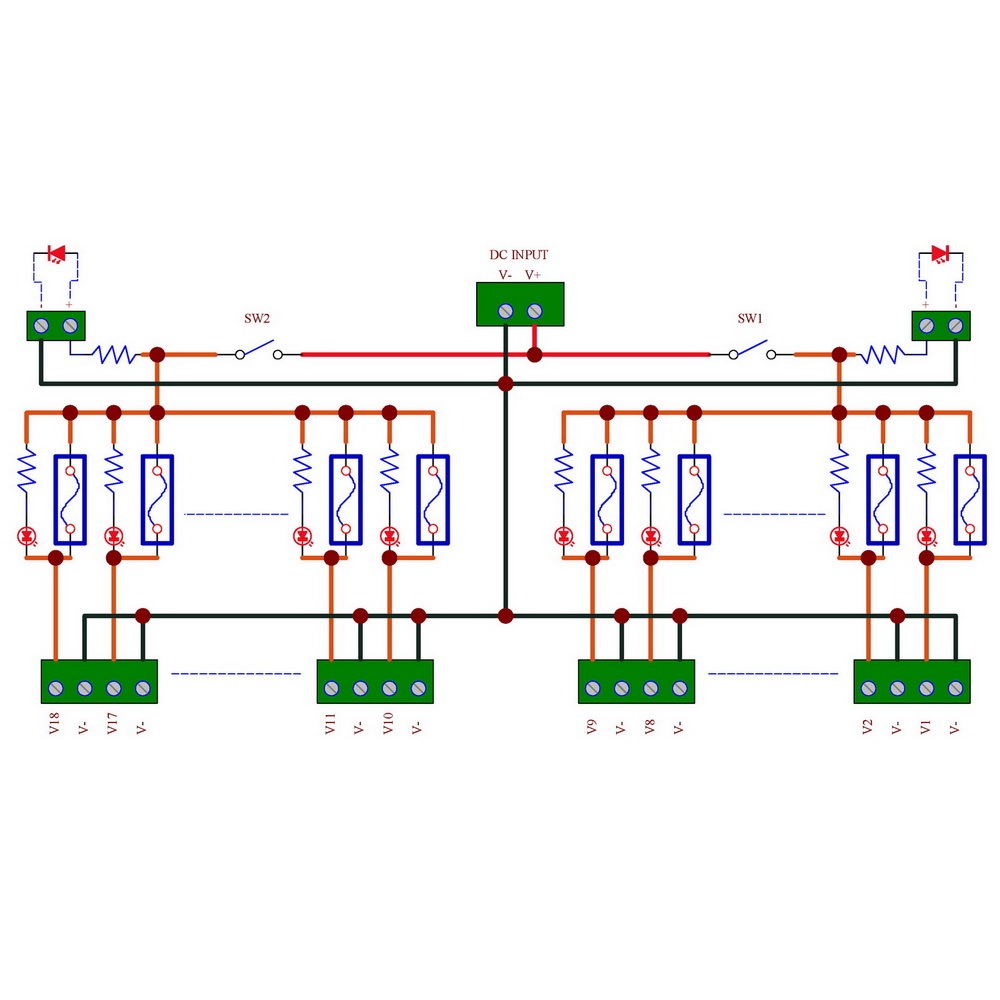

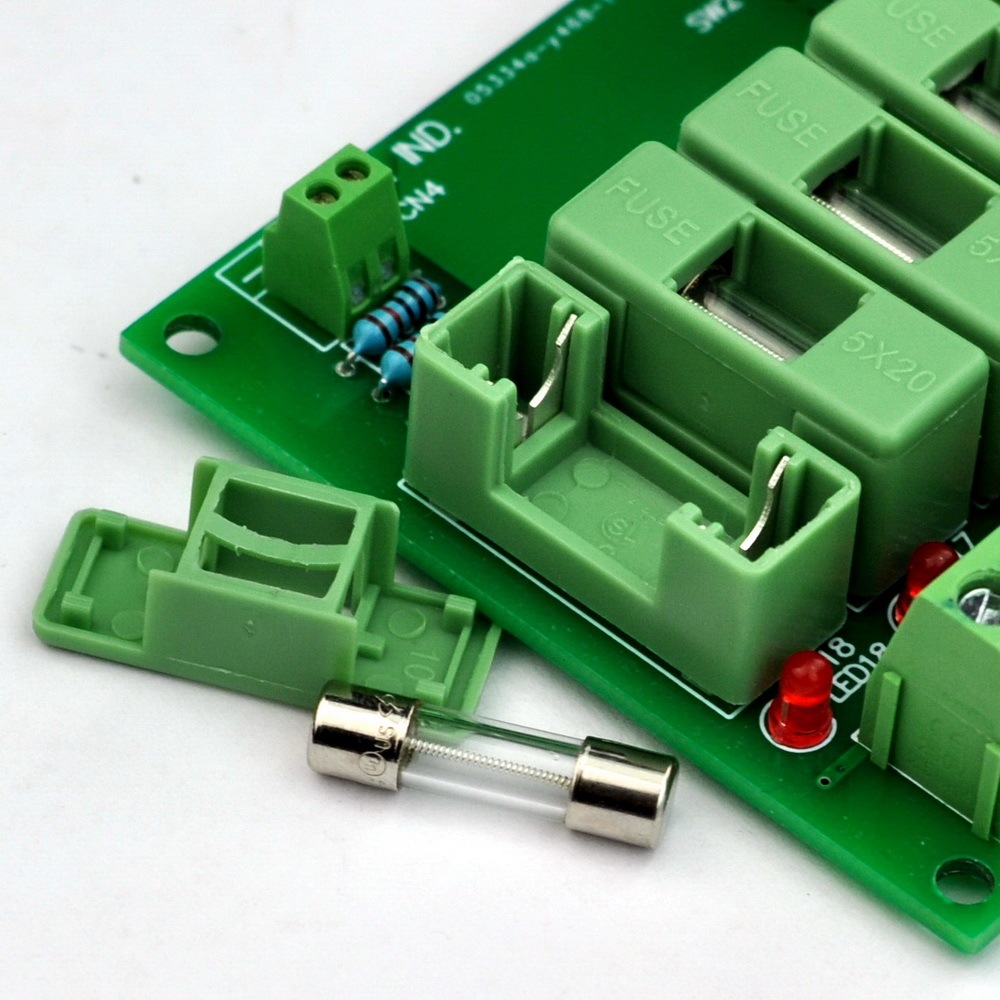

Fuse holders for 5x20mm(DxL) tube fuse, factory-installed slow blow 3Amp fuses. with fuse fail indication function. Dual switches design(each switch for 9 channels), FR-4 fiber glass PCB, dual copper layers.

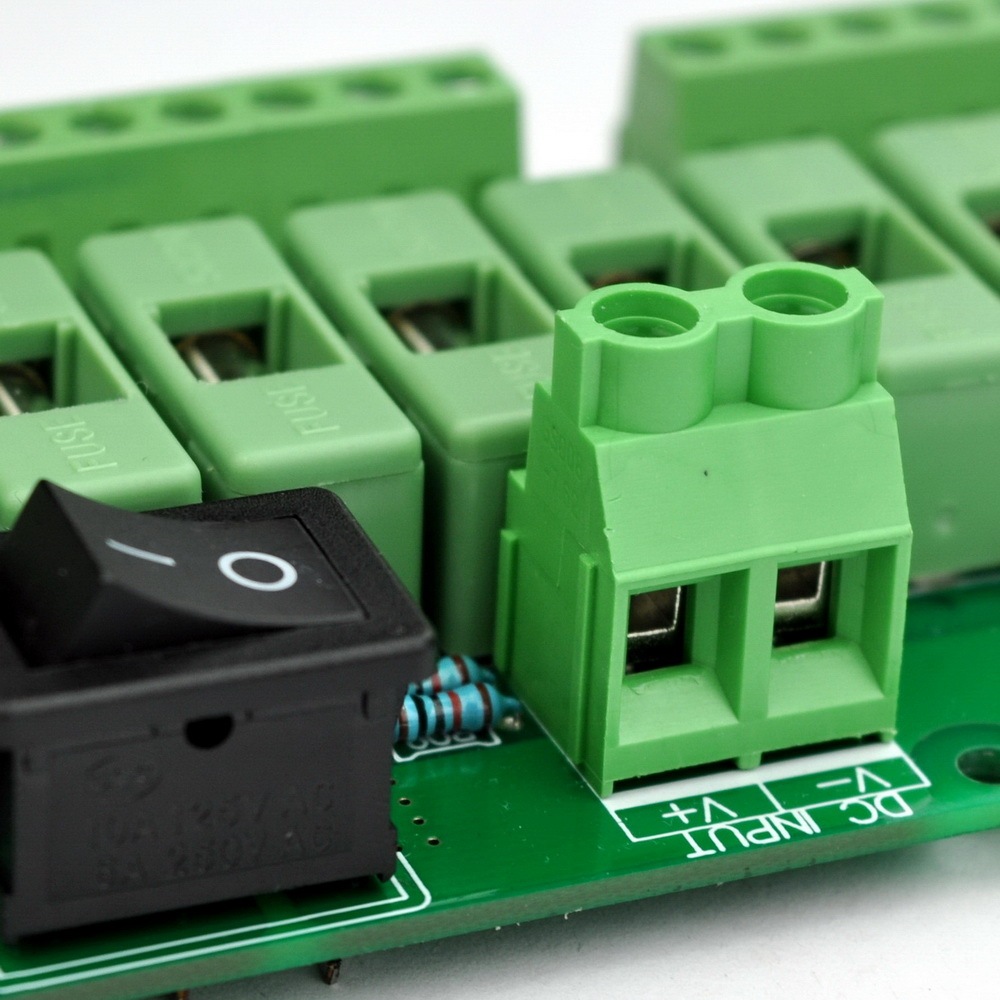

Input terminals: pitch - 7.62mm/0.3", wire size 26~10 AWG/4.0mm square, stripping length 8mm/0.32", Metric M3 slotted screw.

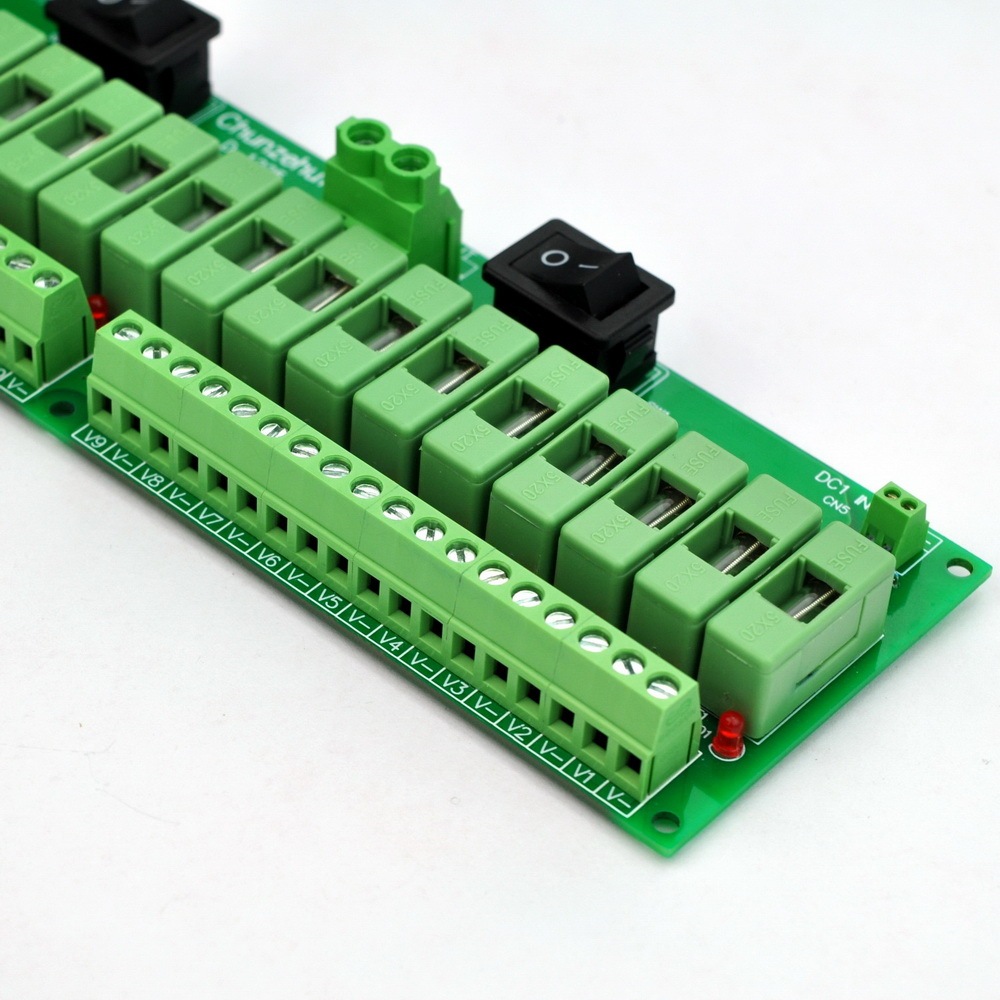

Output terminals: pitch - 5.0mm/0.197", wire size 26~12 AWG / 2.5mm square, stripping length 7mm/0.28", Metric M2.5 slotted screw.

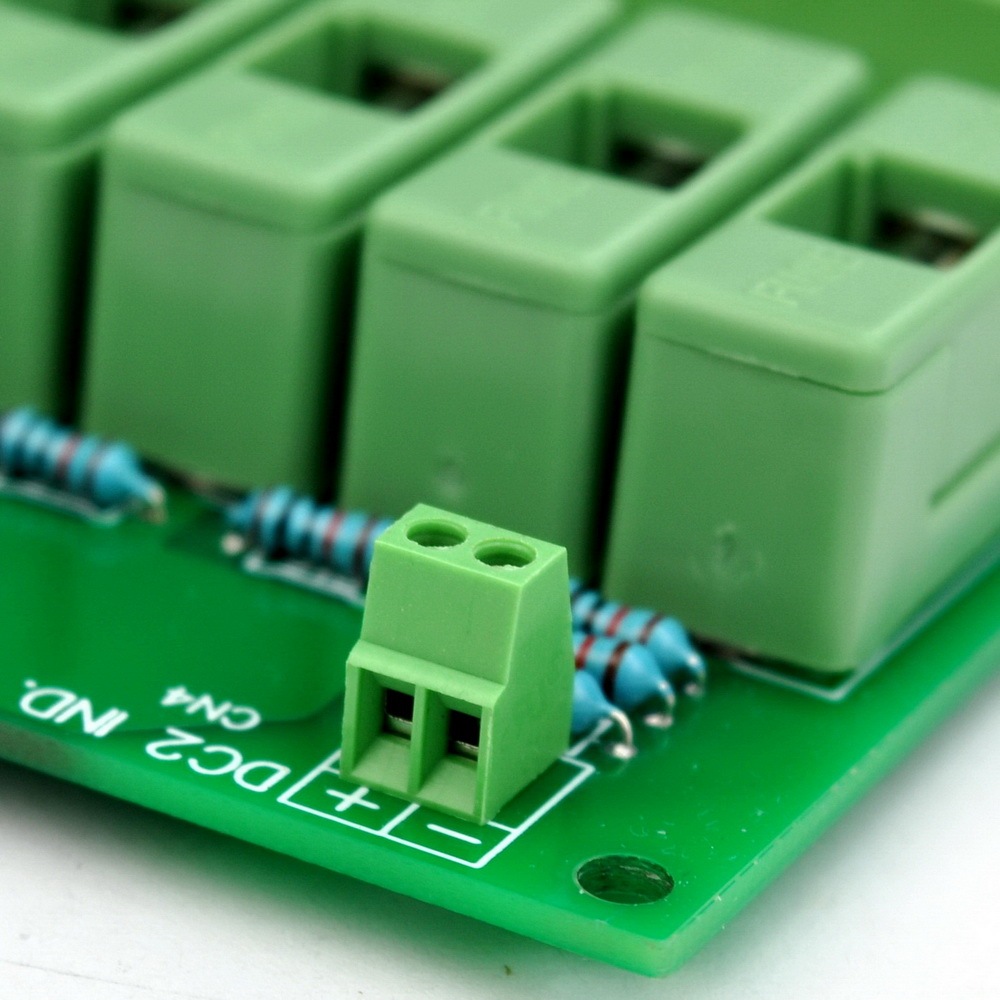

Switch indicator LED connect terminals: pitch - 2.54mm/0.1", wire size 26~18 AWG / 1.0mm square, stripping length 4.5mm/0.18", Metric M1.6 slotted screw.
