Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.

SKU: D-1218T/24V
$33.00 $33.00
Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $33 = $33
save $0.00
Add to Favorites
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
1/1
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Chunzehui 16 Channels Individual DIN Rail Mount 30V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Description

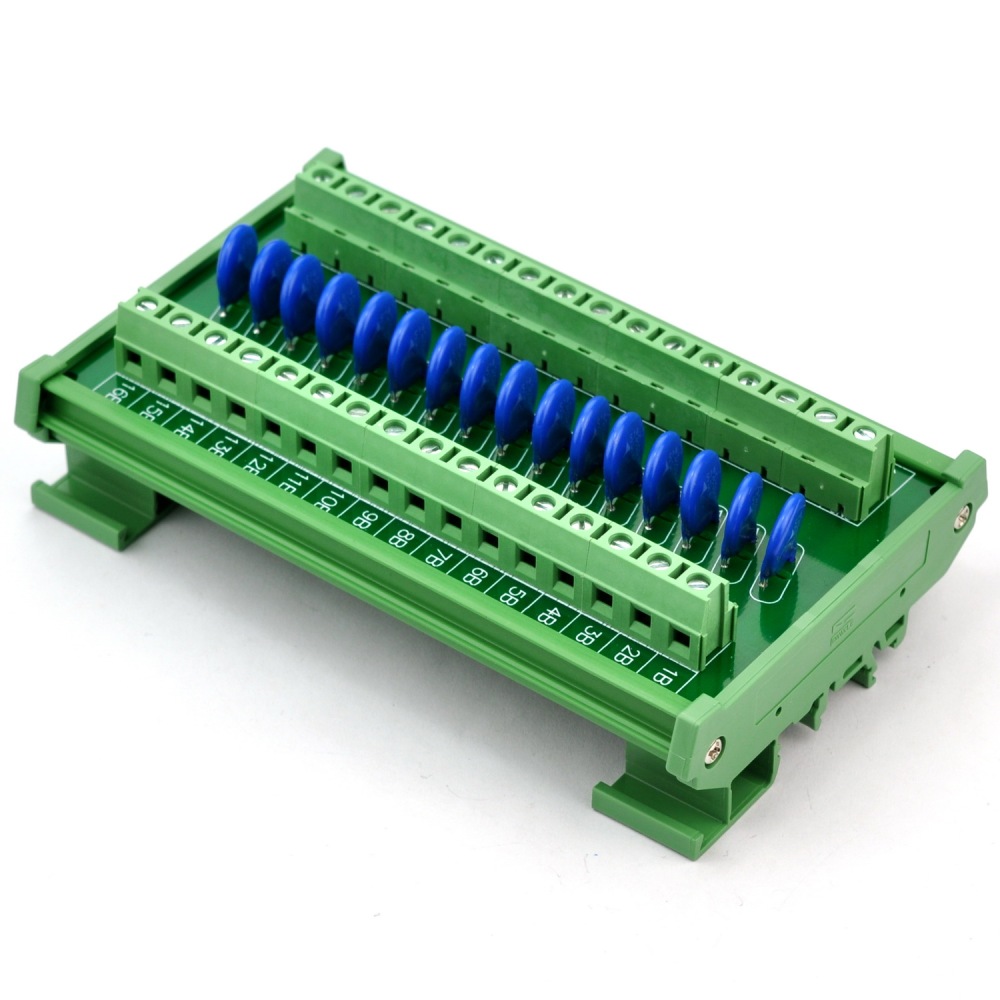

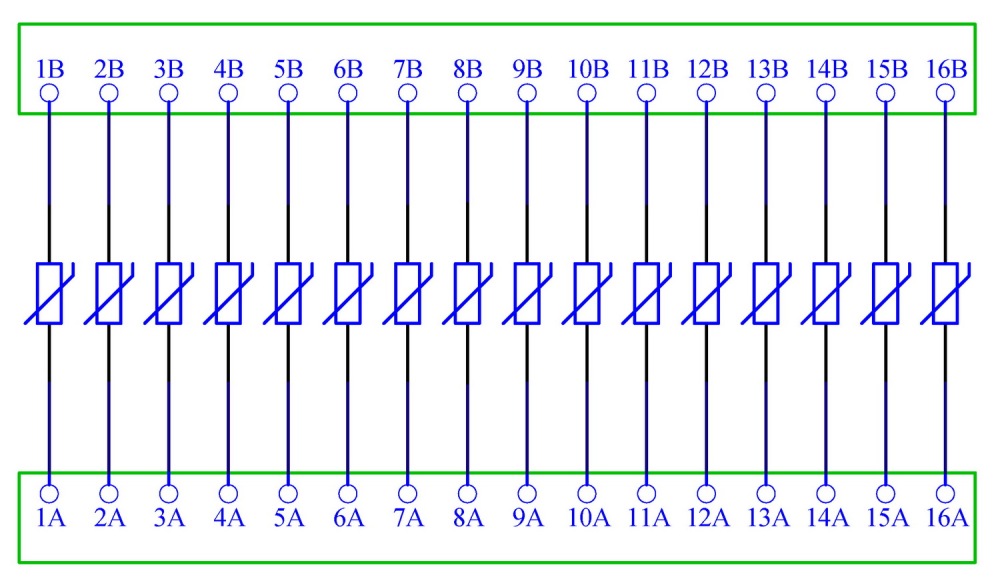

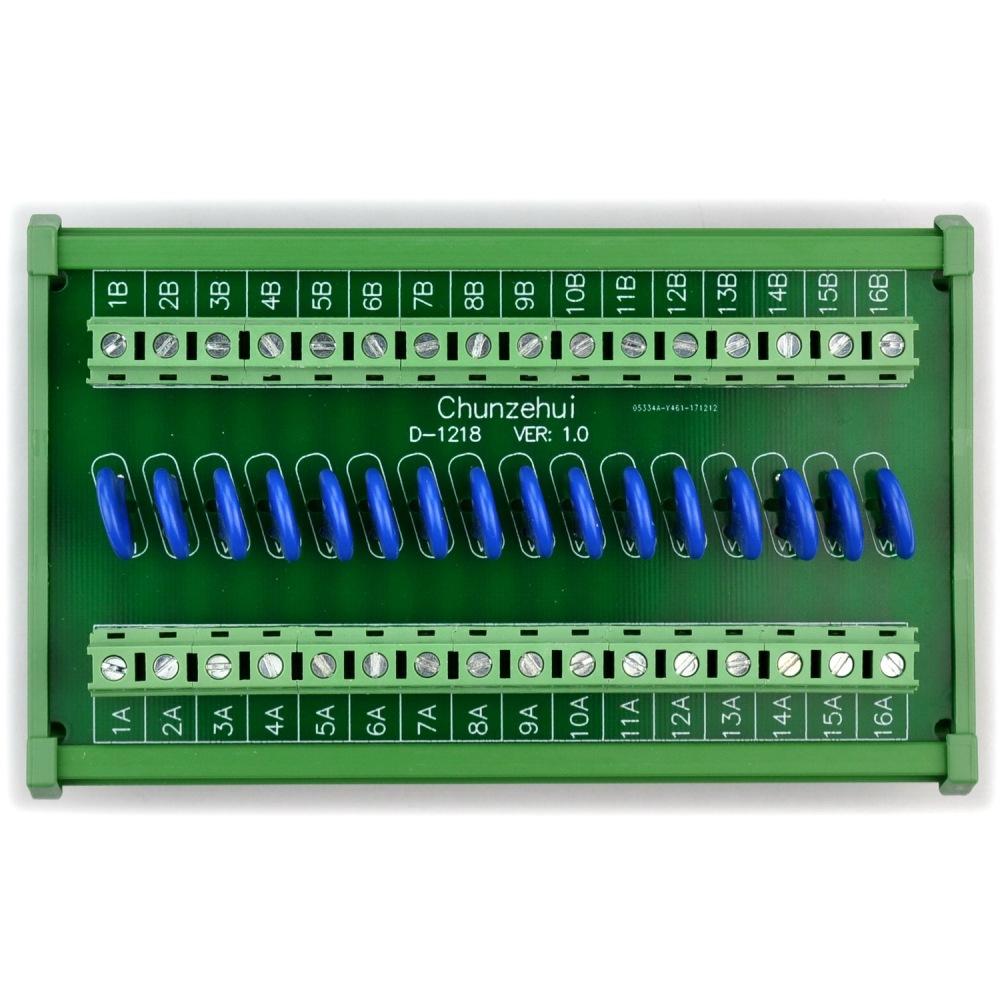

DIN rail mount SIOV metal oxide varistor interface module, 16 channels individual connect.
Continuous maximum working voltage: 30VAC(RMS) / 38VDC.
Breakdown voltage(at 1mA): 47V, Clamping voltage: 93V(10A), Transient peak current: 1000A.

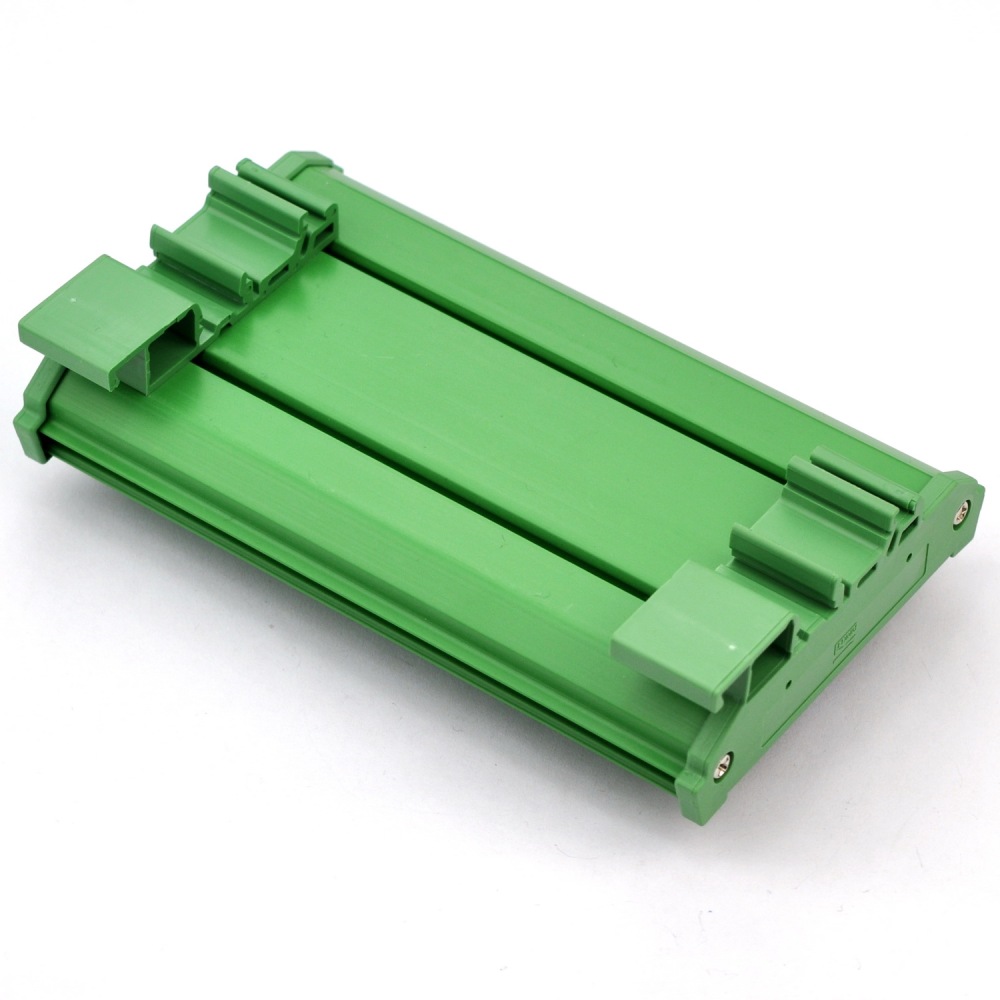

Ease of connection with the use of screw connection terminal blocks. Taiwan fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
