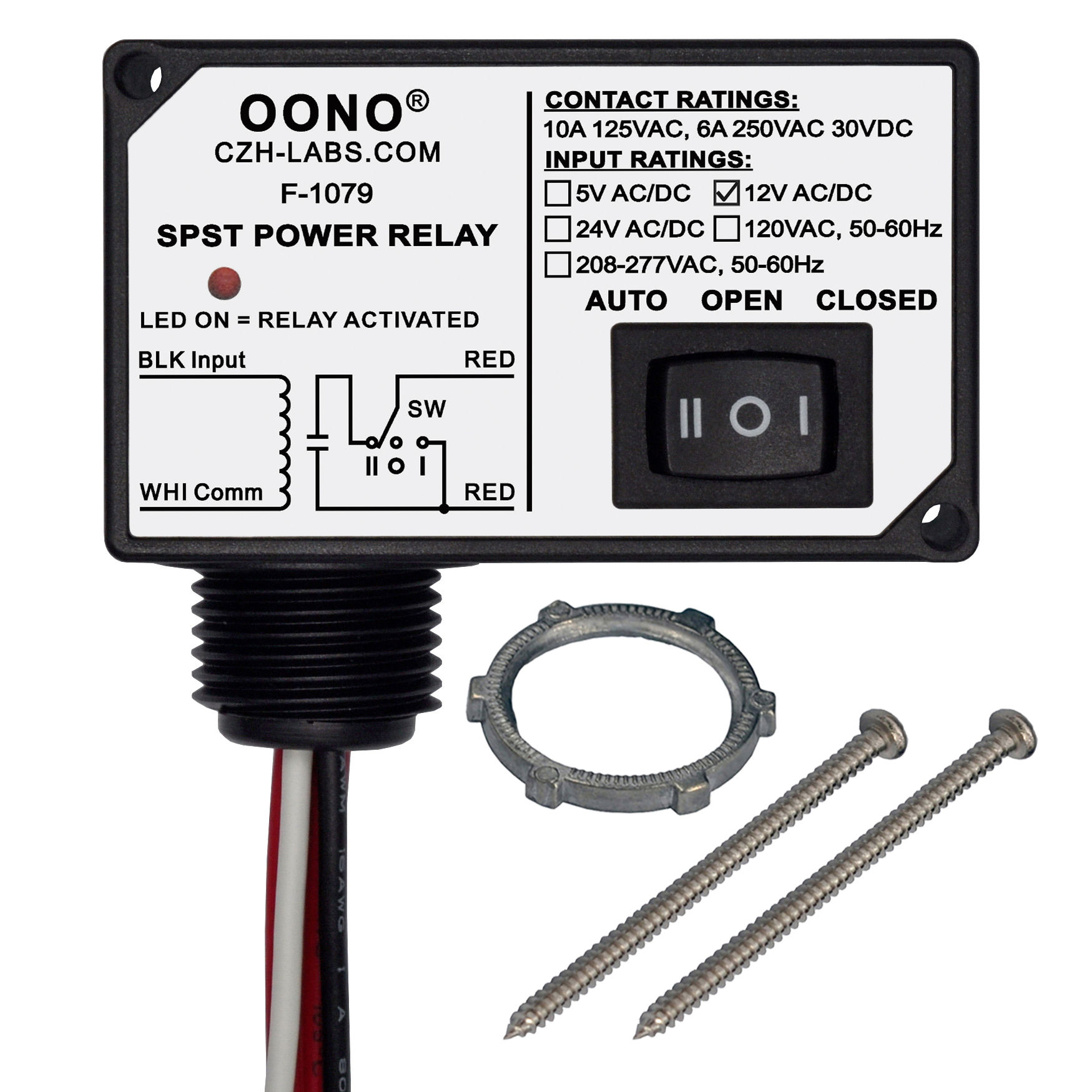

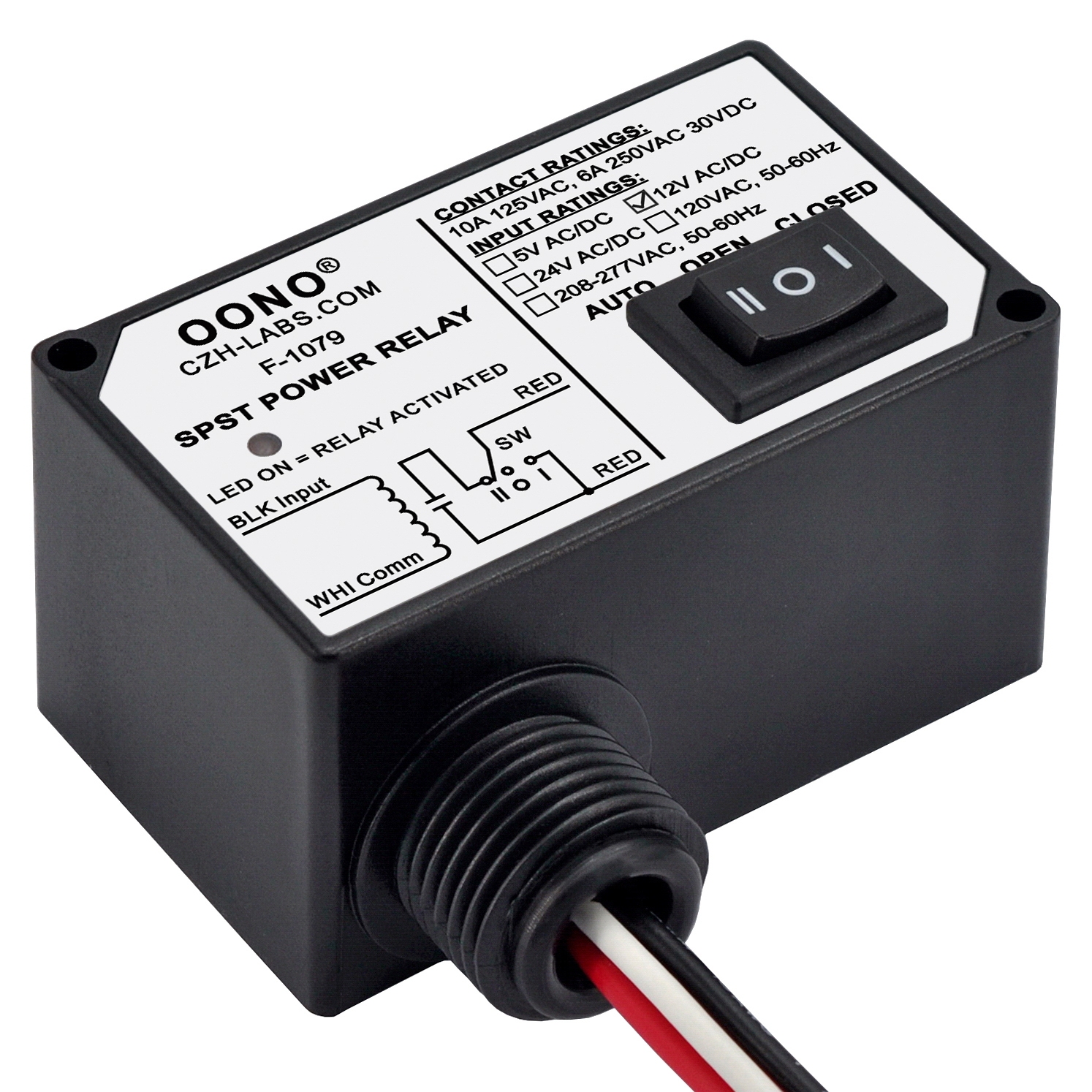

AC/DC 12V Power Relay Module SPST-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079

SKU: F-1079 12V
$25.00 $25.00
AC/DC 12V Power Relay Module SPST-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $25 = $25
save $0.00
Add to Favorites
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
1/1
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079
  • AC/DC 12V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1079

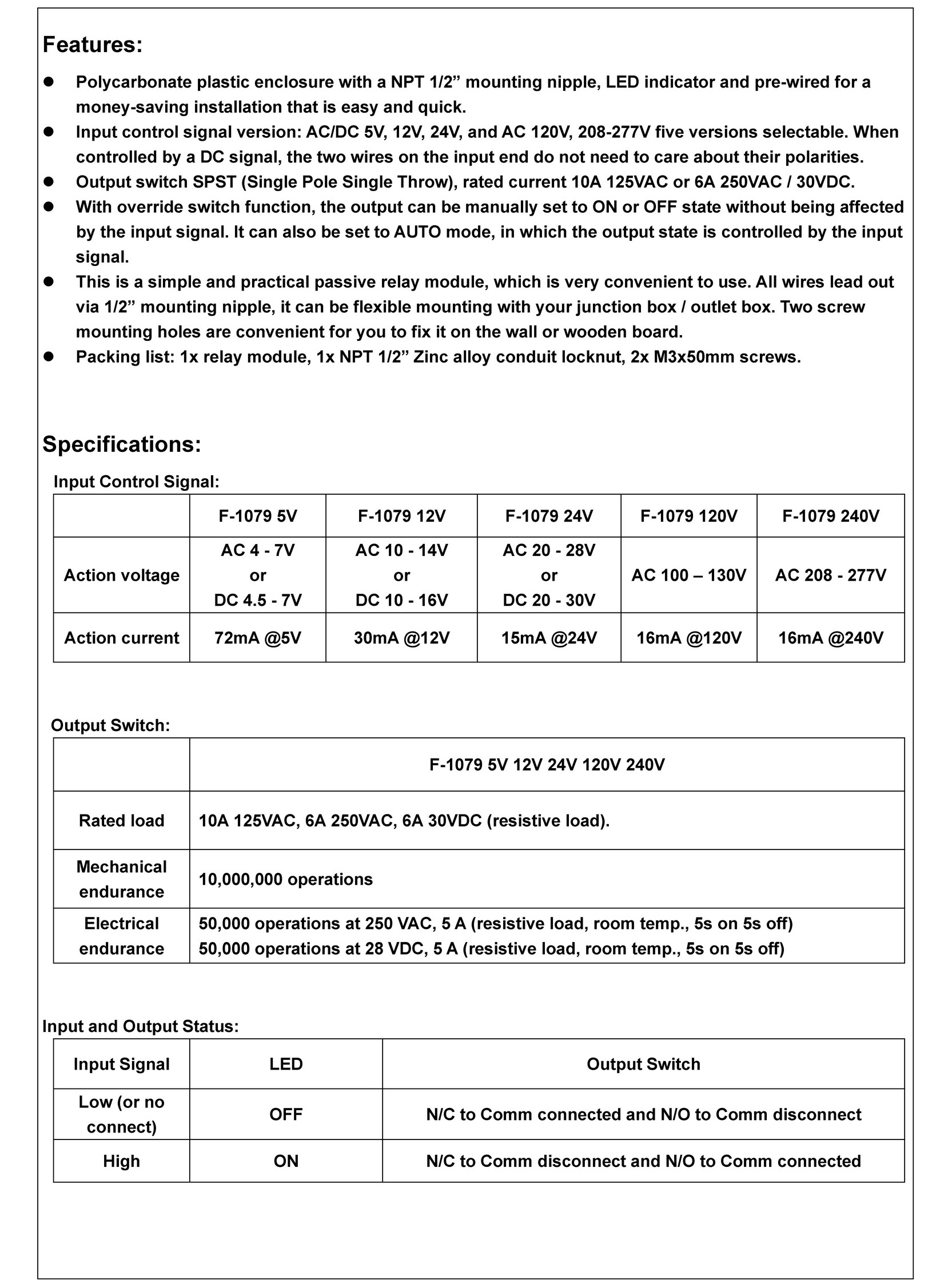

  • Description

1, Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick.
2, Input control signal voltage AC 12V or DC 12V, current 30mA. When controlled by a DC signal, the two wires on the input end do not need to care about their polarities.
3, Output switch SPST-N/O (Single Pole Single Throw, Normally Open), rated current 10A 125VAC or 6A 250VAC / 30VDC.
4, With override switch function, the output can be manually set to ON or OFF state without being affected by the input signal. It can also be set to AUTO mode, in which the output state is controlled by the input signal.

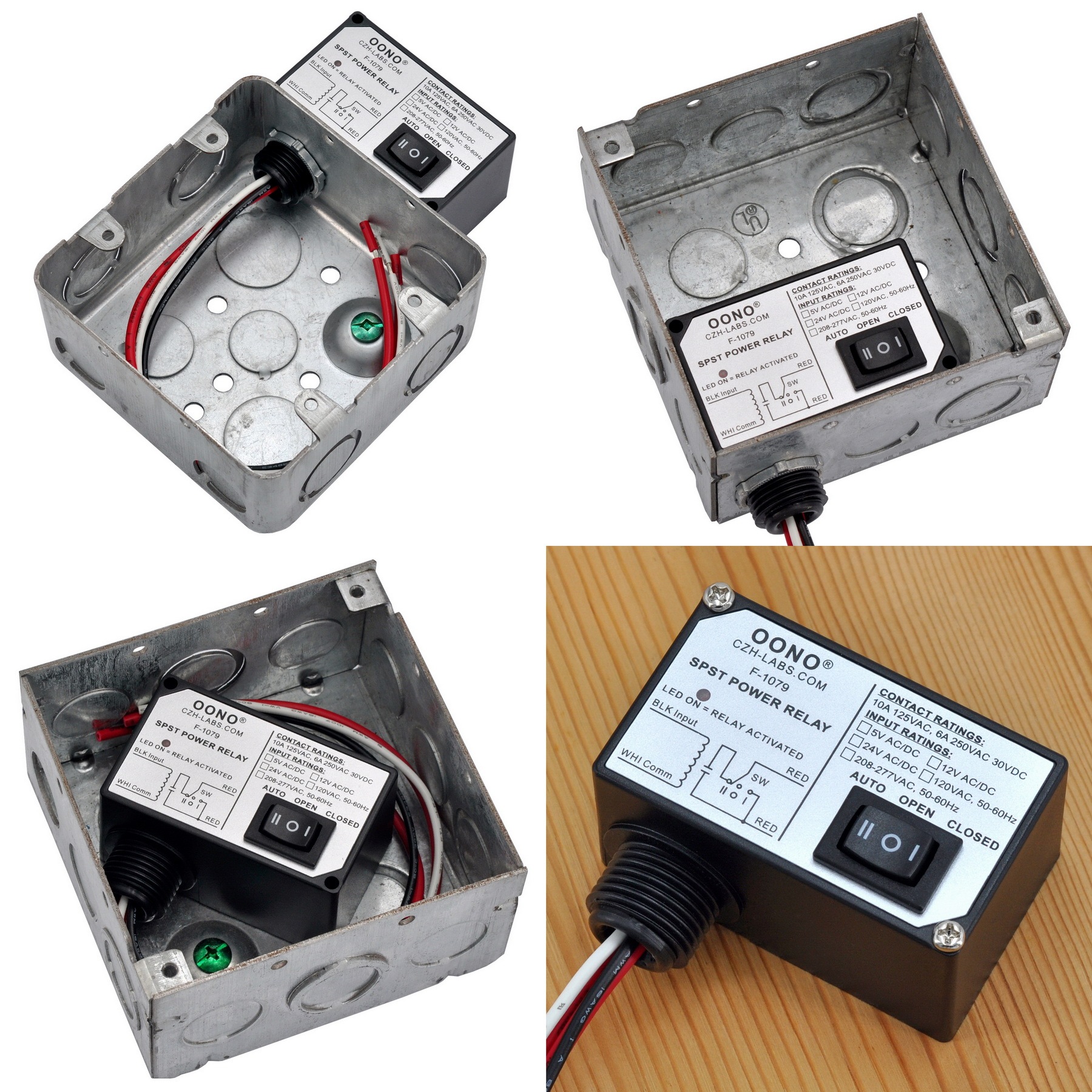

5, This is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1/2” mounting nipple, it can be flexible mounting with your junction box / outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board.

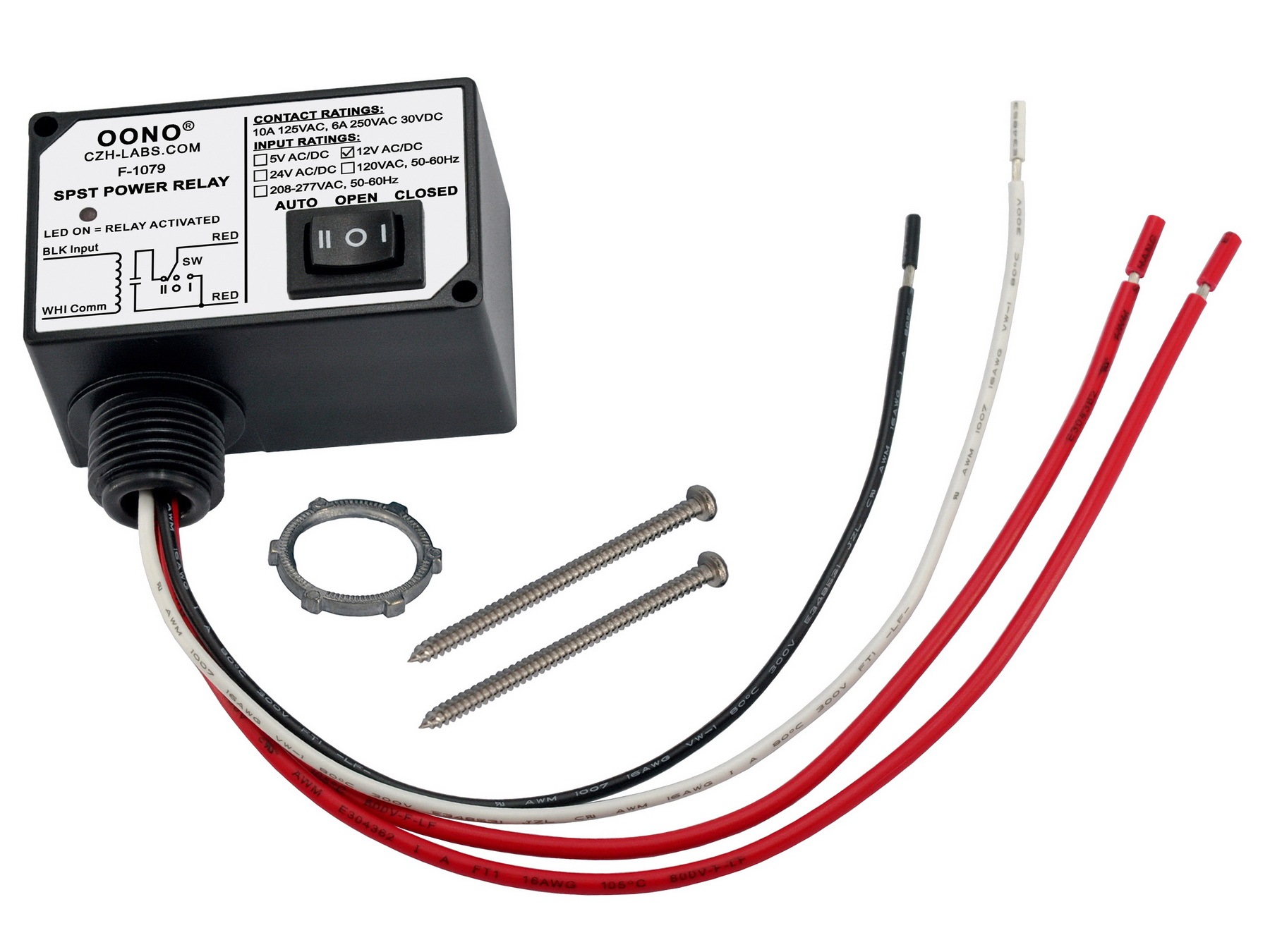

6, Packing list: 1x relay module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screws.
