AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired

SKU: F-1056/240V
$18.00 $18.00
AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $18 = $18
save $0.00
Add to Favorites
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
1/1
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • AC 208-277V SPDT 10Amp Power Relay Module, Plastic Enclosure and Pre-wired
  • Description

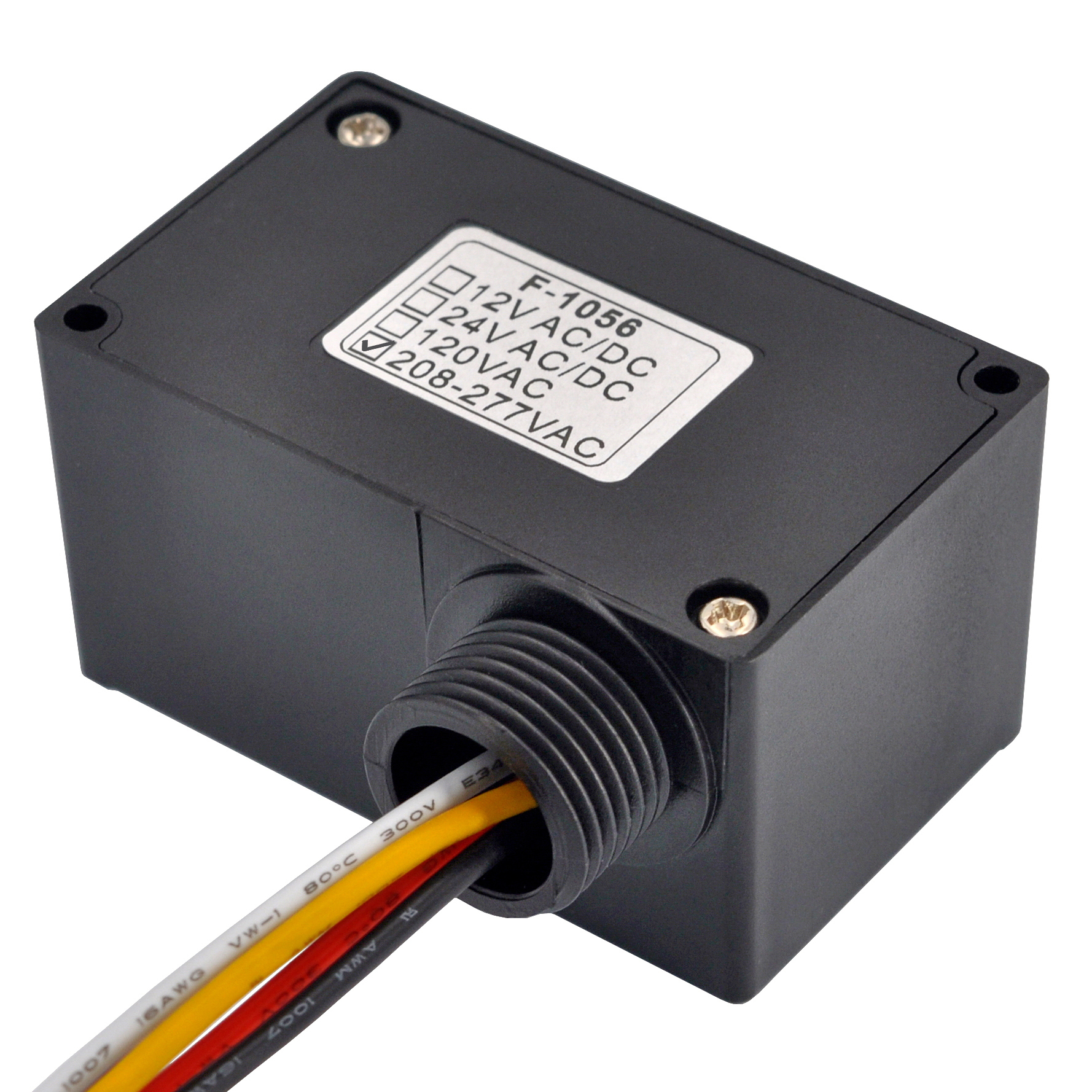

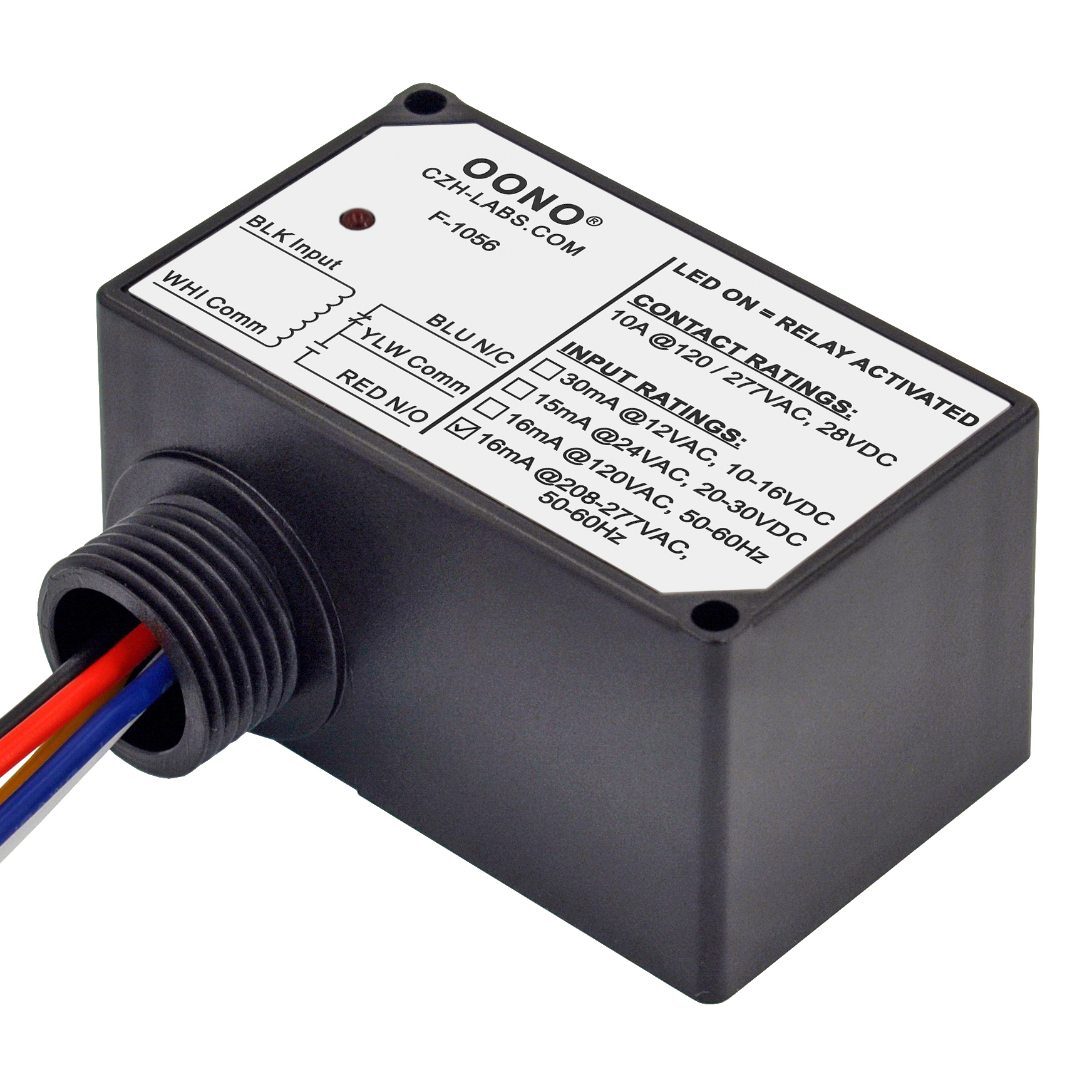

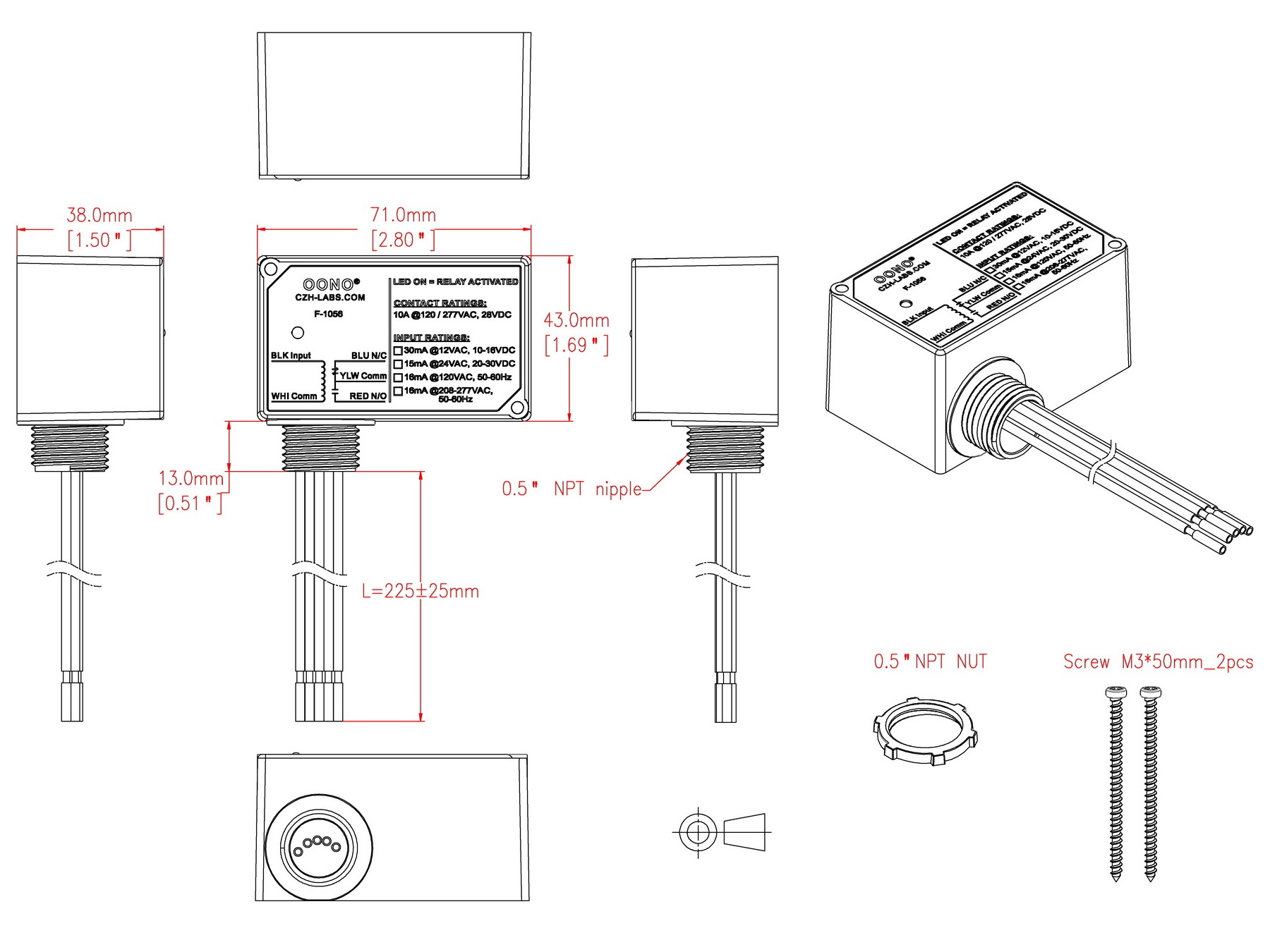

1, Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick.
2, Input control signal voltage AC 208 to 277V, current 16mA.
3, Output switch SPDT (Single Pole Double Throw), maximum voltage AC 277V or DC 28V, maximum current 10 Amp.

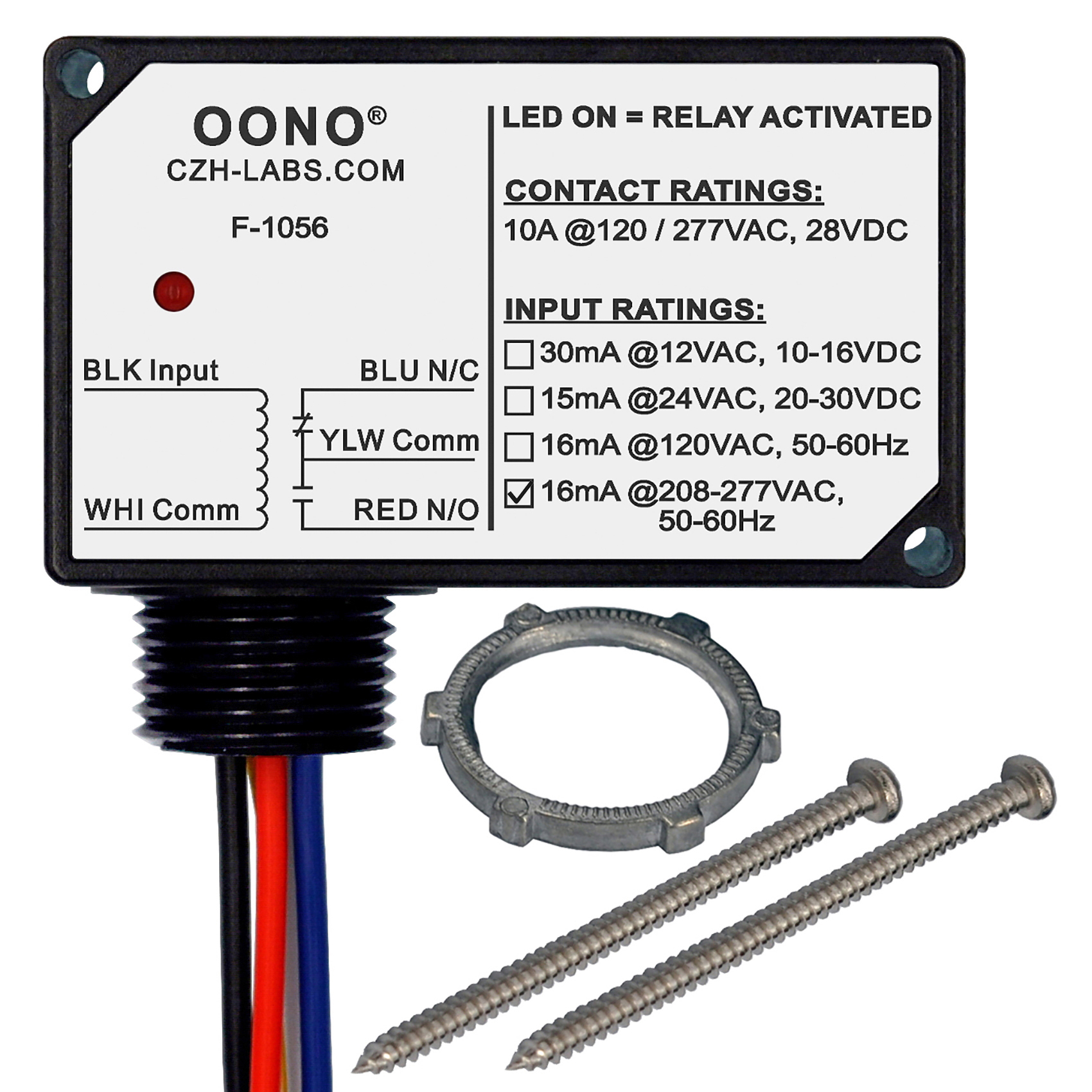

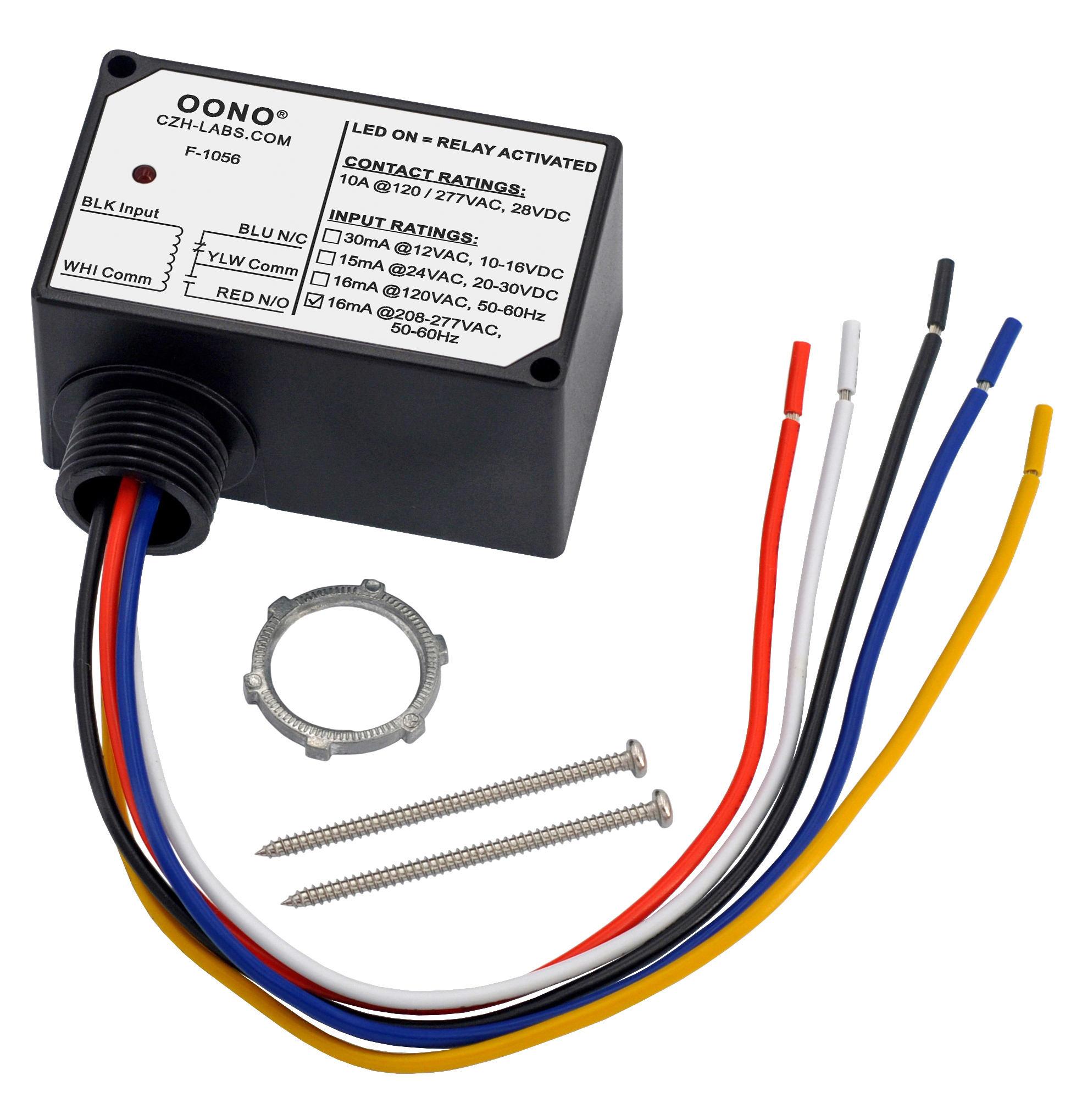

4, Packing list: 1x relay module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screw.

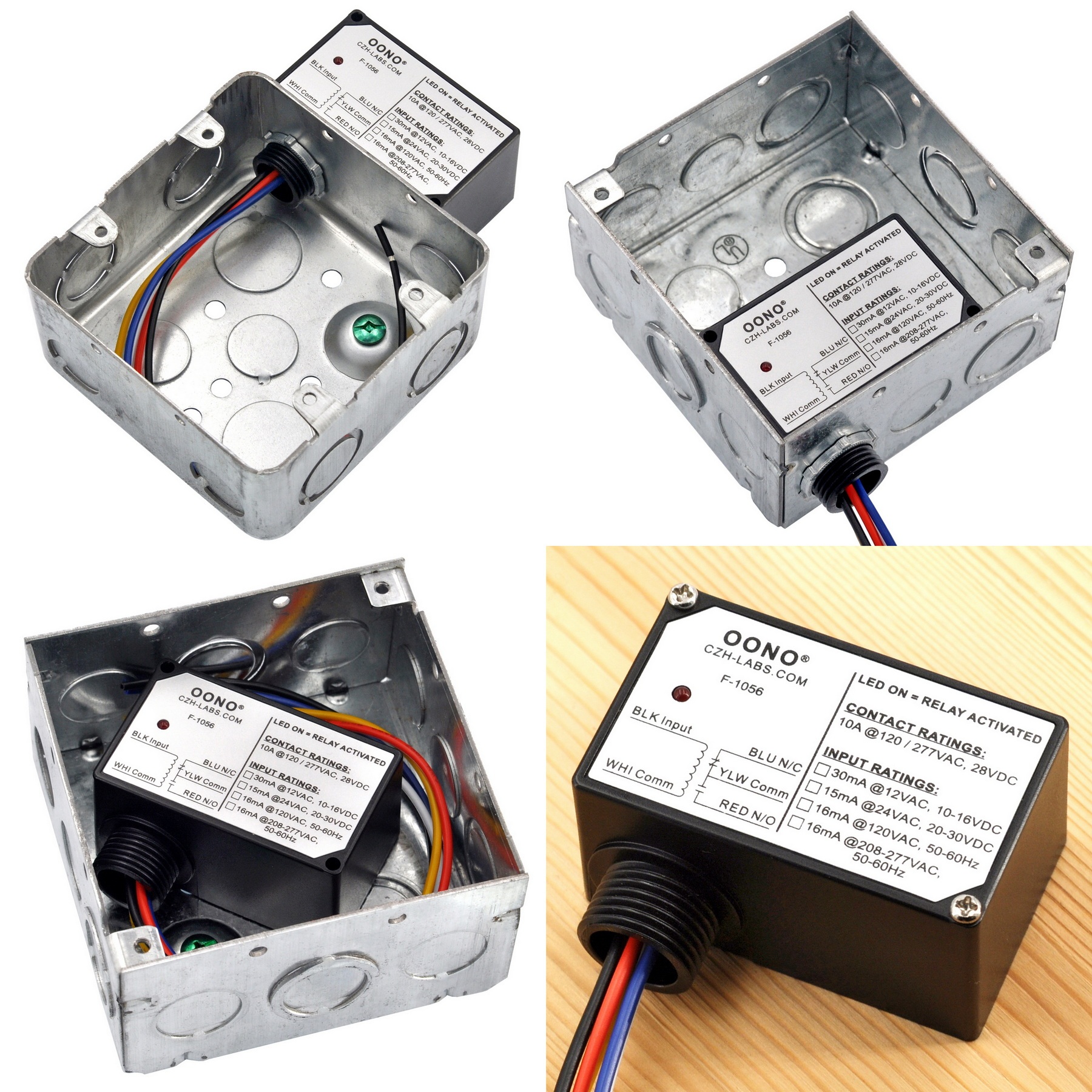

5, This is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1/2” mounting nipple, it can be flexible mounting with your junction box / outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board.
