Home > Relay Module > Building Automation Relay > AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
1/1
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
Share:

AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061

SKU: F-1061/20A120V
$25.00 $25.00
AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $25 = $25
save $0.00
Add to Favorites
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
1/1
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • AC 120V SPST Power Relay Module, 20Amp 250Vac/30Vdc, Plastic Enclosure and Pre-wired, OONO F-1061
  • Description

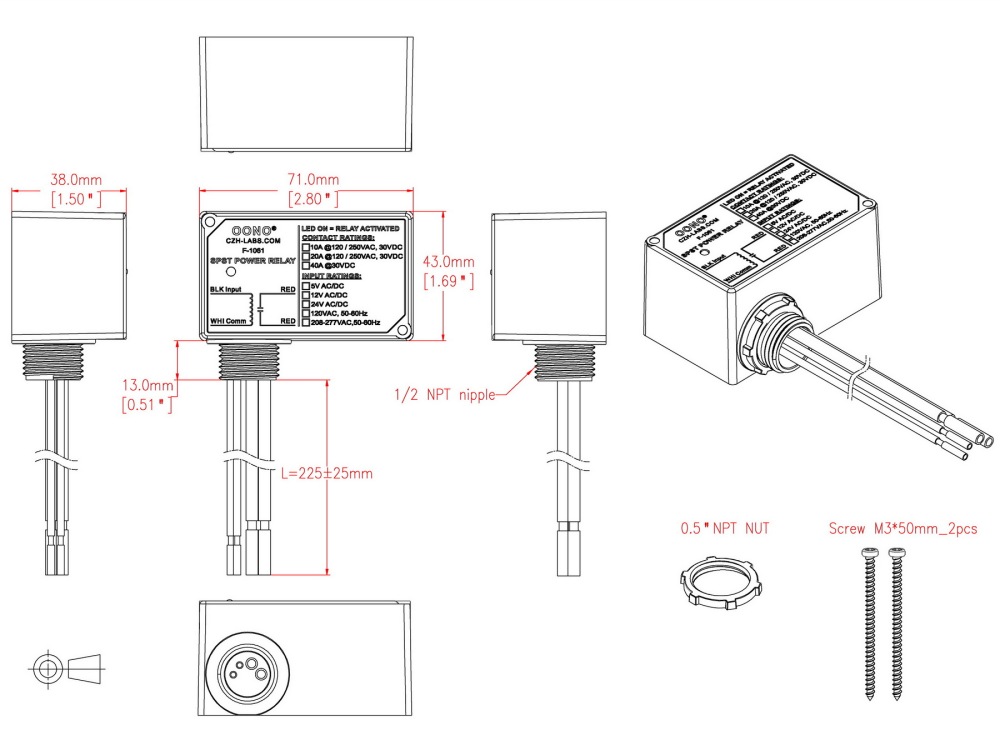

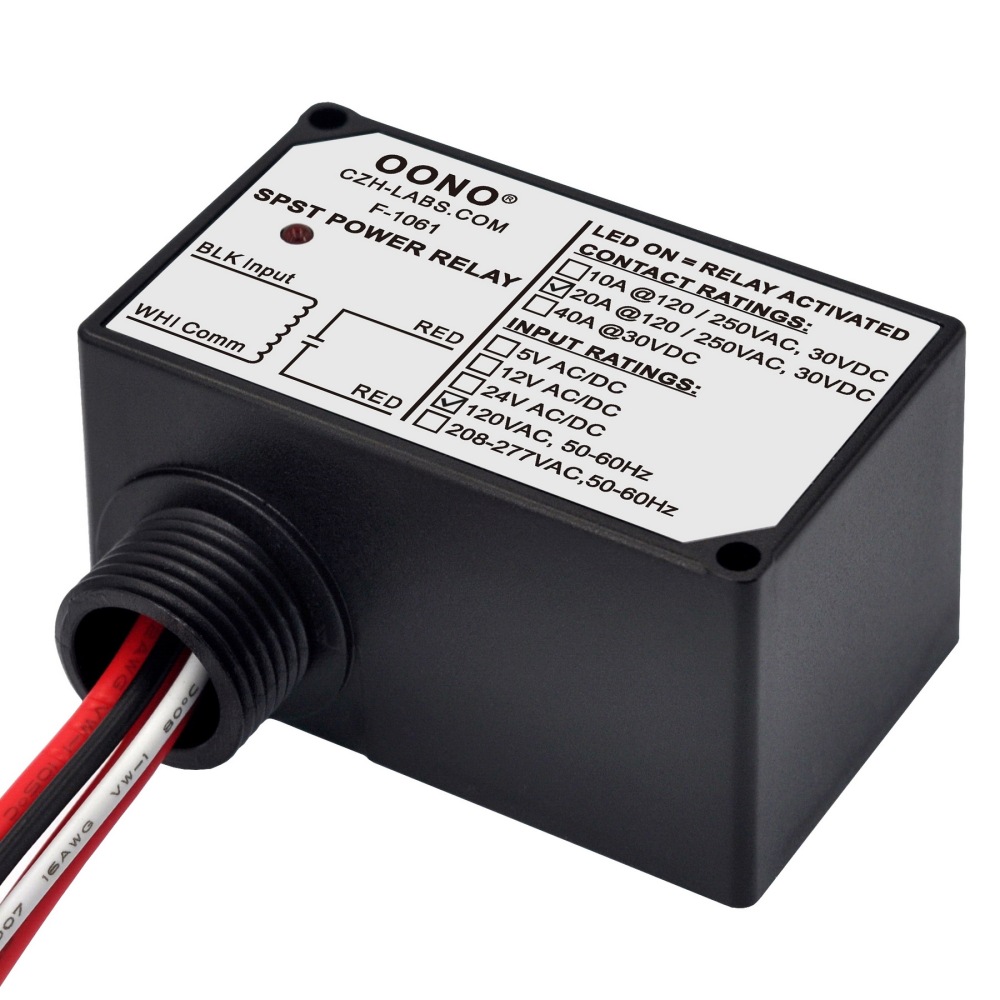

1, Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick.
2, Input control signal voltage AC 120V, current 45mA.
3, Output switch SPST (Single Pole Single Throw), rated current 20A / 250VAC or 20A / 30VDC.

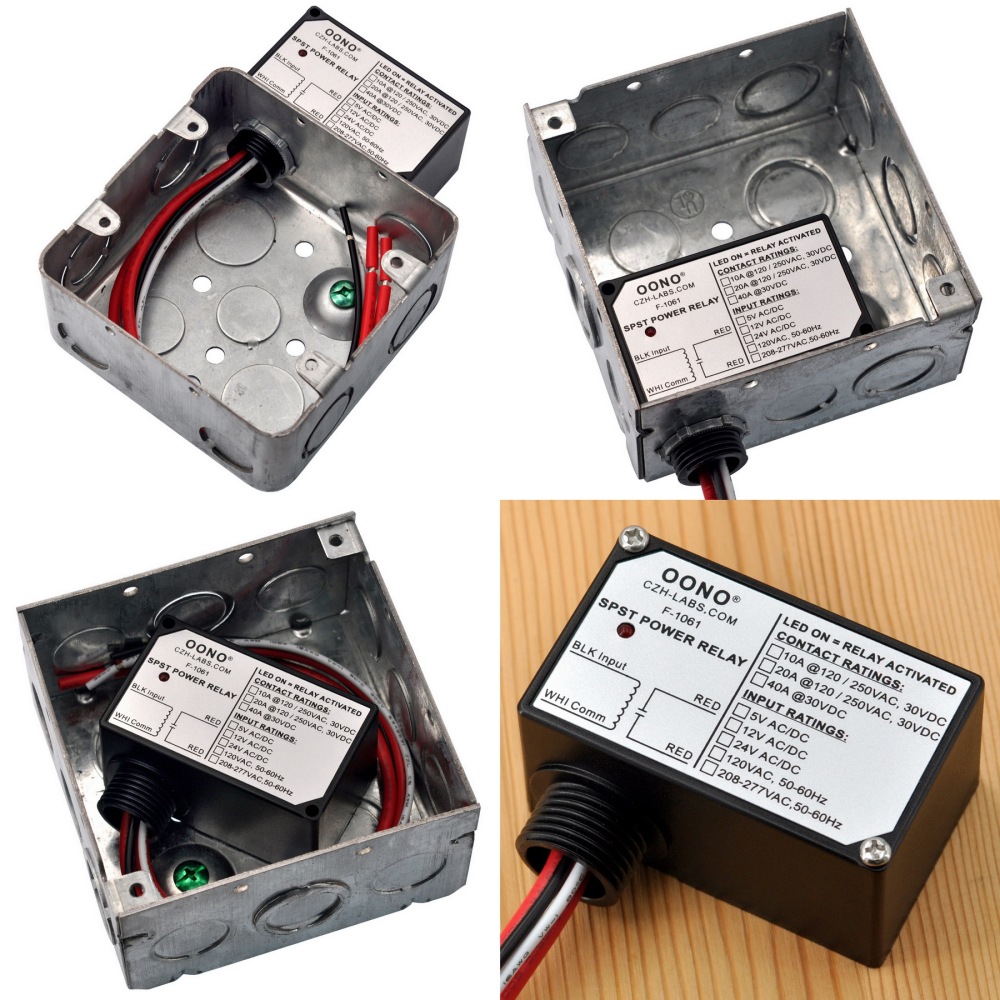

4, This is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1/2” mounting nipple, it can be flexible mounting with your junction box / outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board.

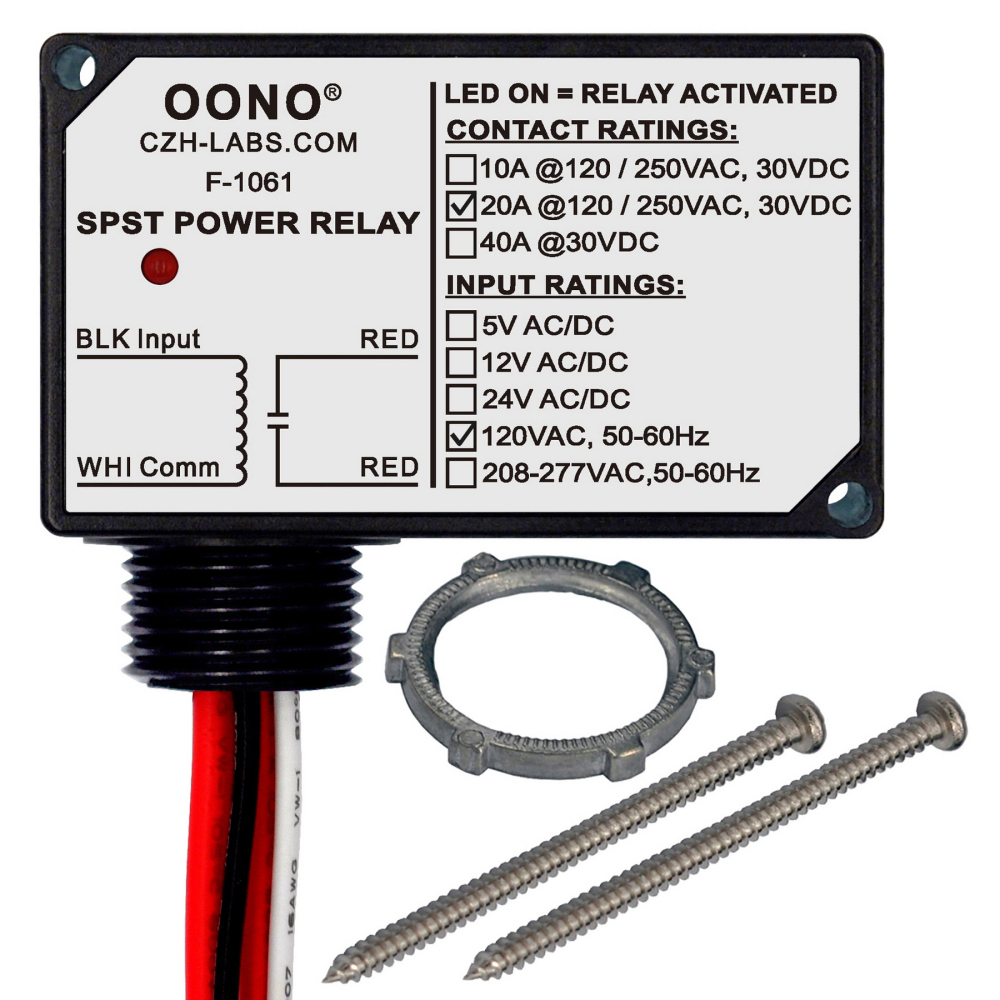

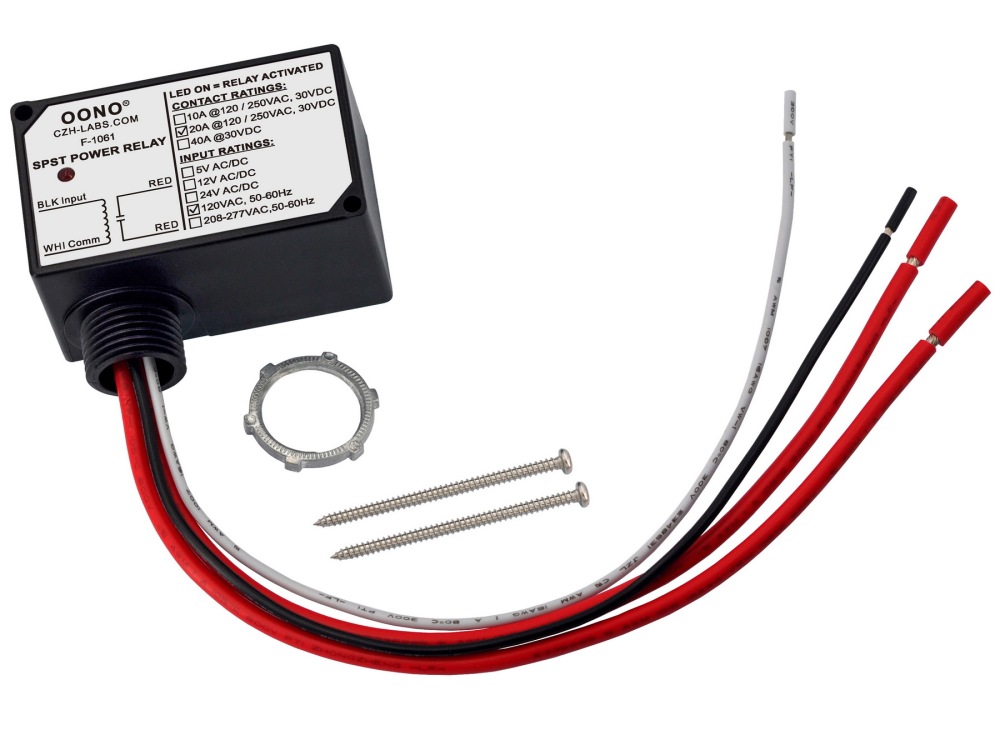

5, Packing list: 1x relay module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screws.
