2x12 Position 40A 250V Screw Terminal Block Distribution Module Board

Name: 2x12 Position 40A 250V Screw Terminal Block Distribution Module Board
Brand: Xiken Tech
SKU: HD036
Price: 17 USD
Availability: InStock

SKU: HD036

$17.00 ~~$17.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

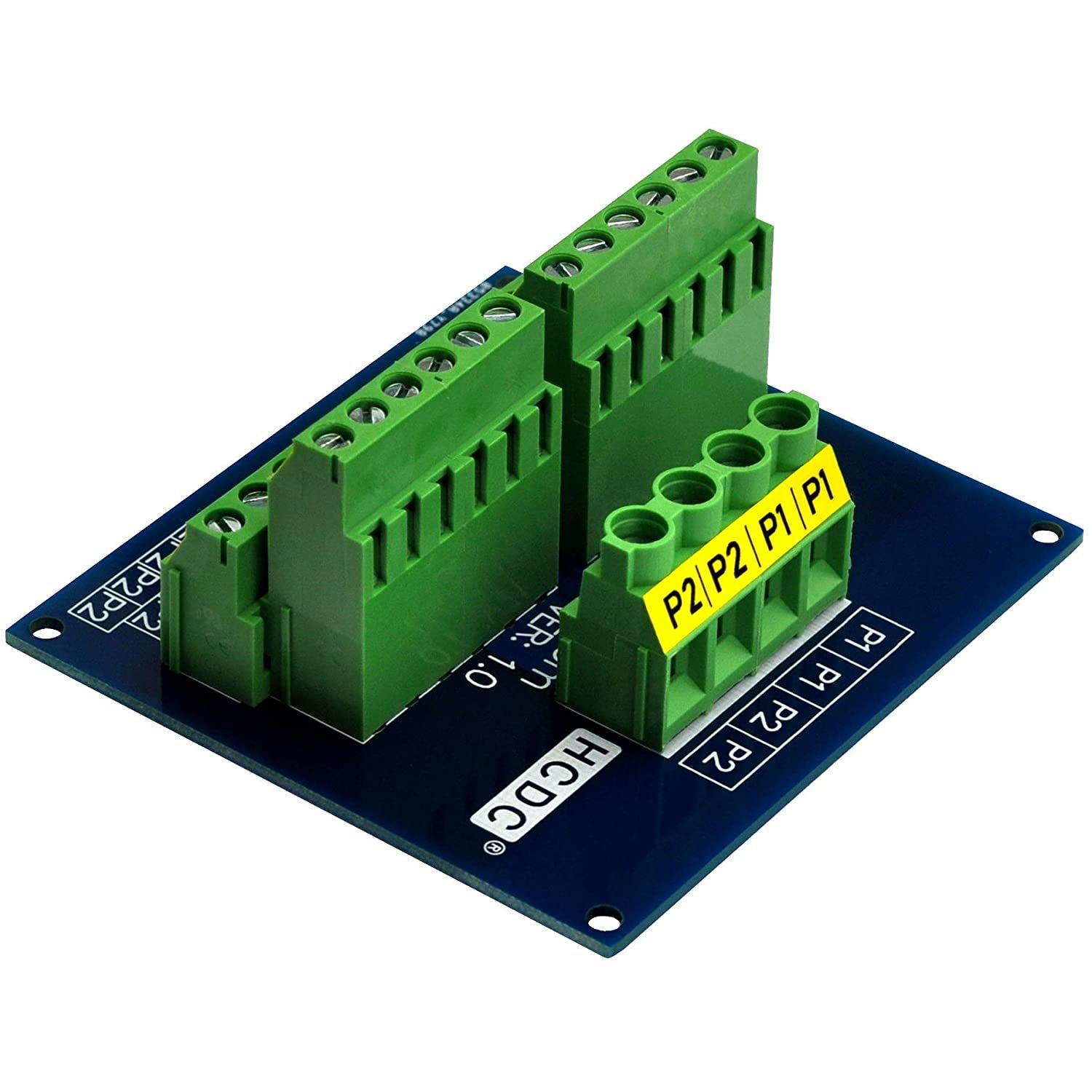

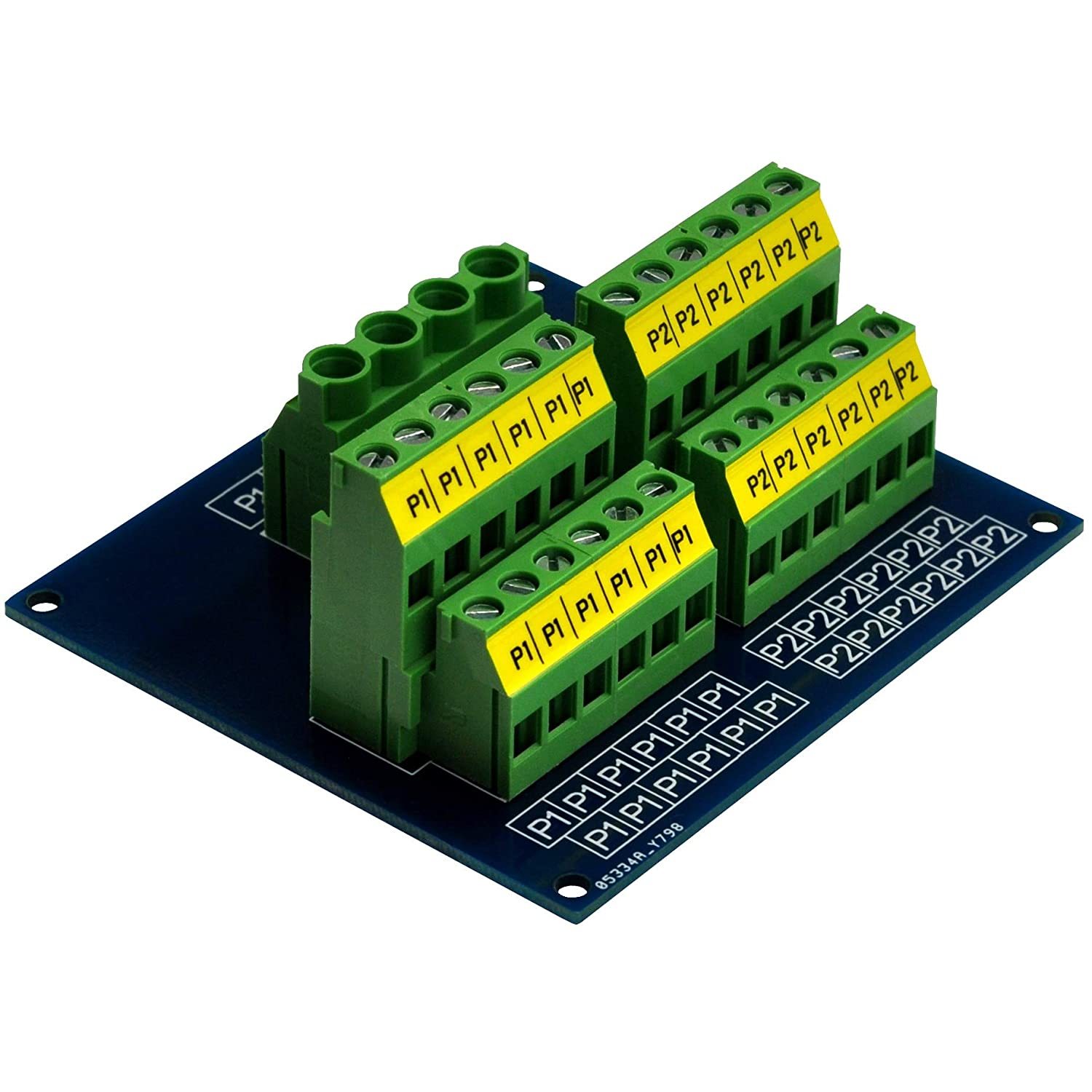

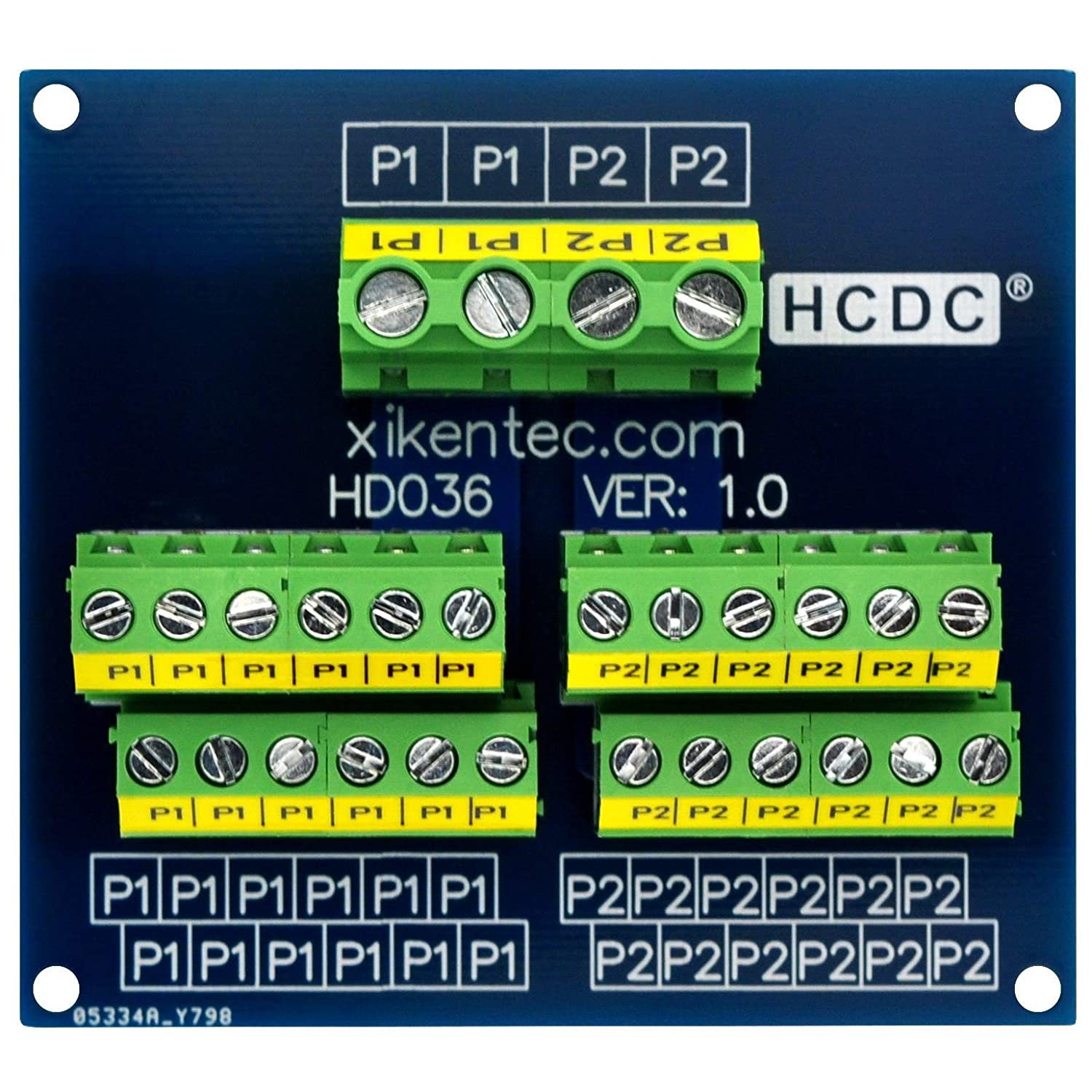

2x12 Position 40A 250V Screw Terminal Block Distribution Module Board.
Voltage - 250Vac/dc, Current Rating - 40A.

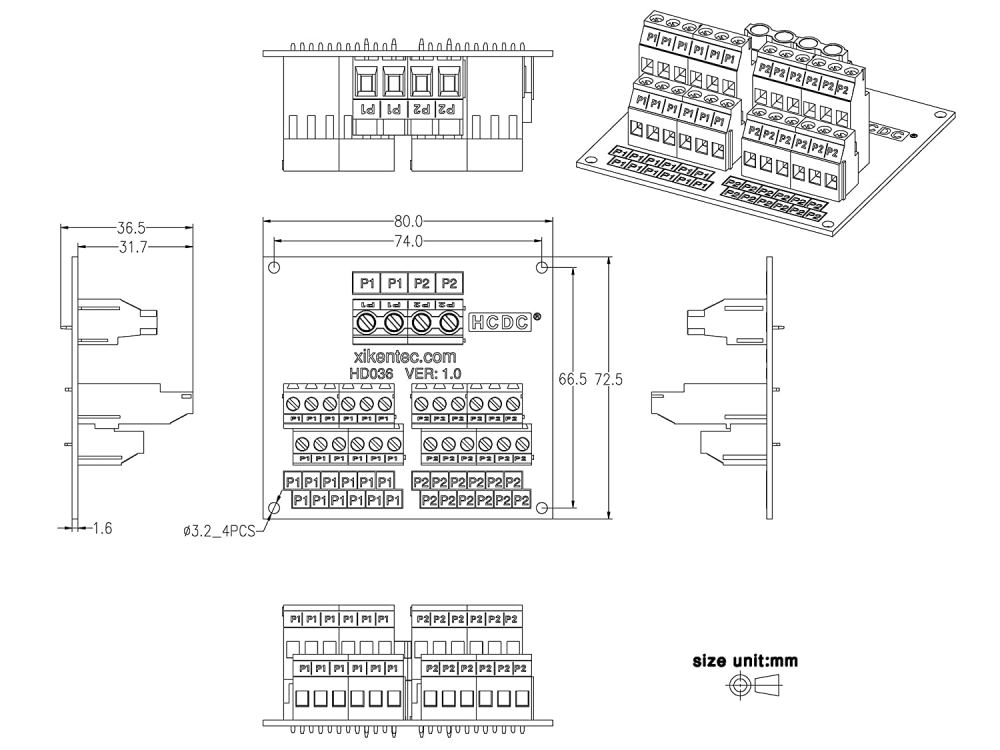

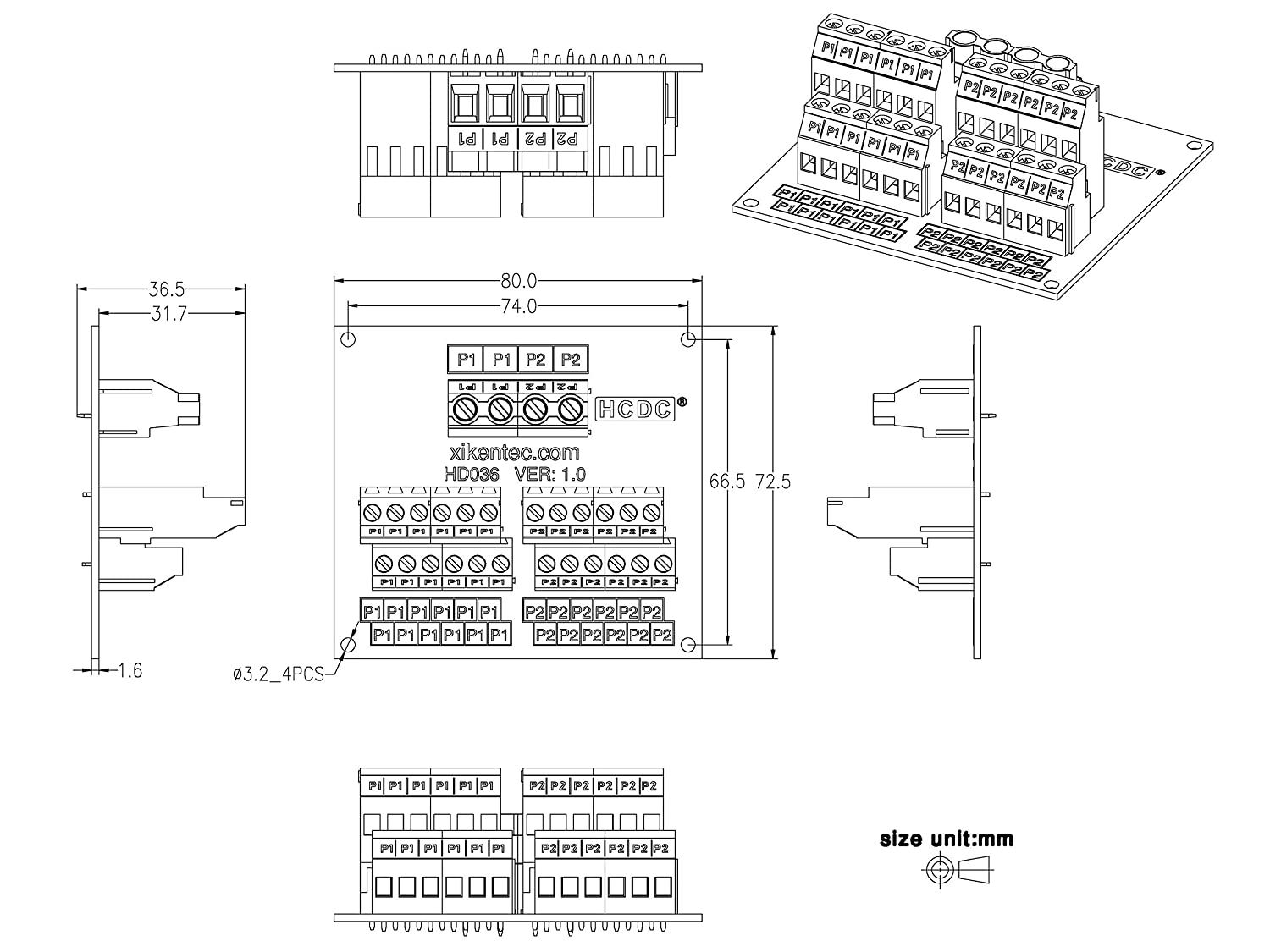

Module Dimensions - 83mm x 87mm x 58mm (W x L x H).
Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Output terminals: pitch - 5.08mm/0.2", current 20A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
FR-4 fiber glass PCB, dual copper layers.
