20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)

SKU: HD028P
$22.99 $22.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $22.99 = $22.99
save $0.00
Add to Favorites
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
1/1
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • 20 Position 30Amp/300V Screw Terminal Block Distribution Module (Screw Mount)
  • Description

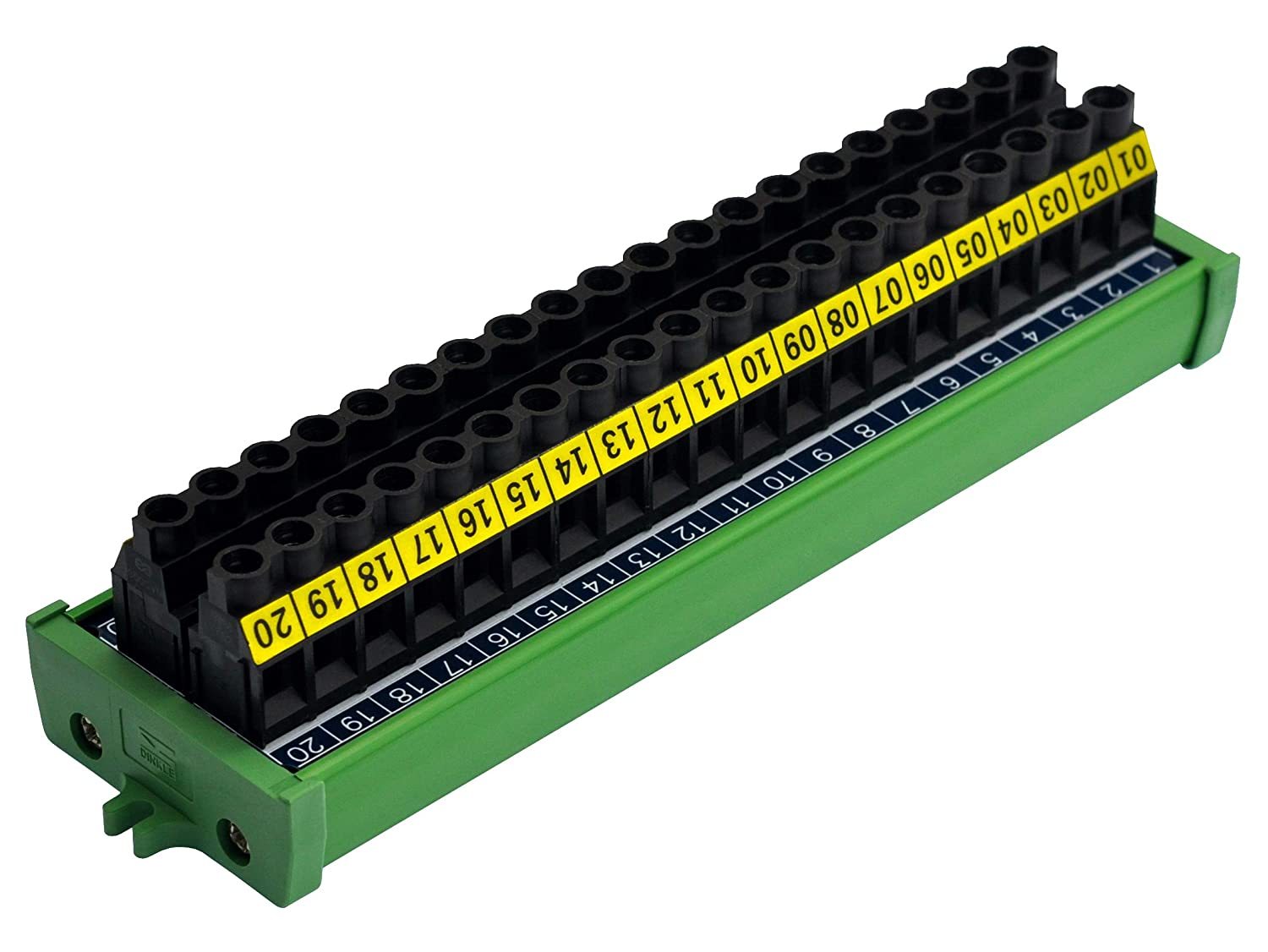

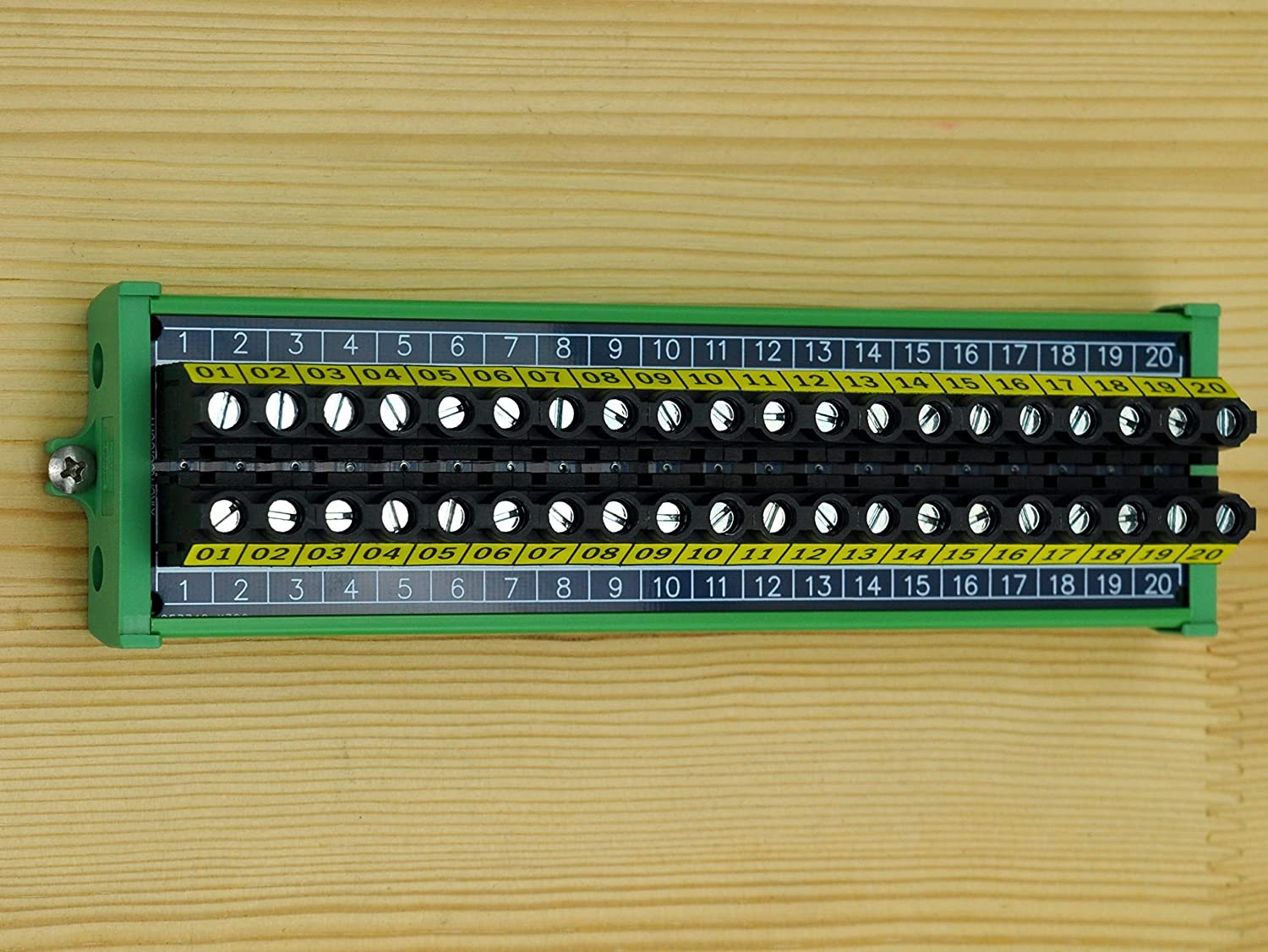

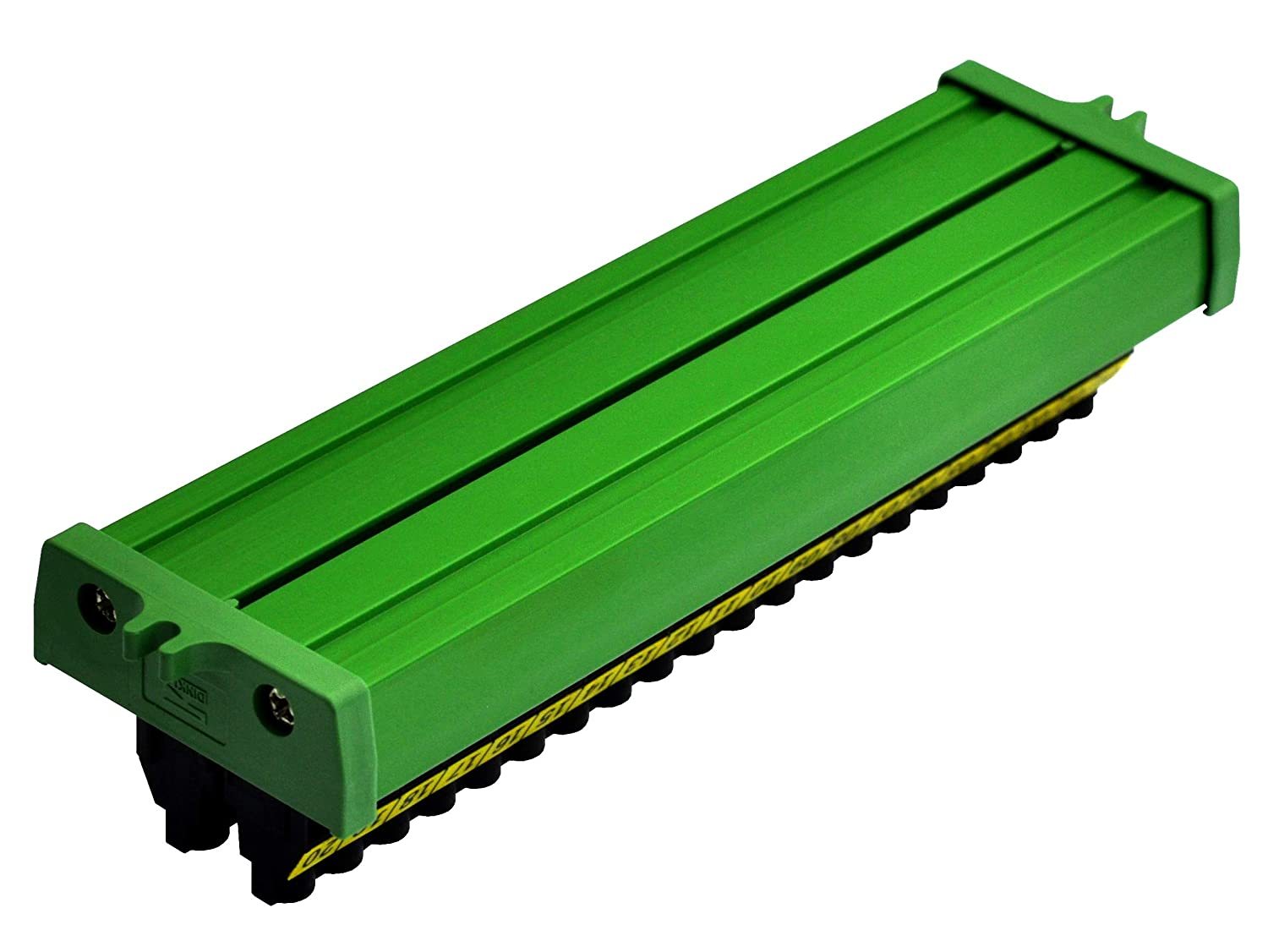

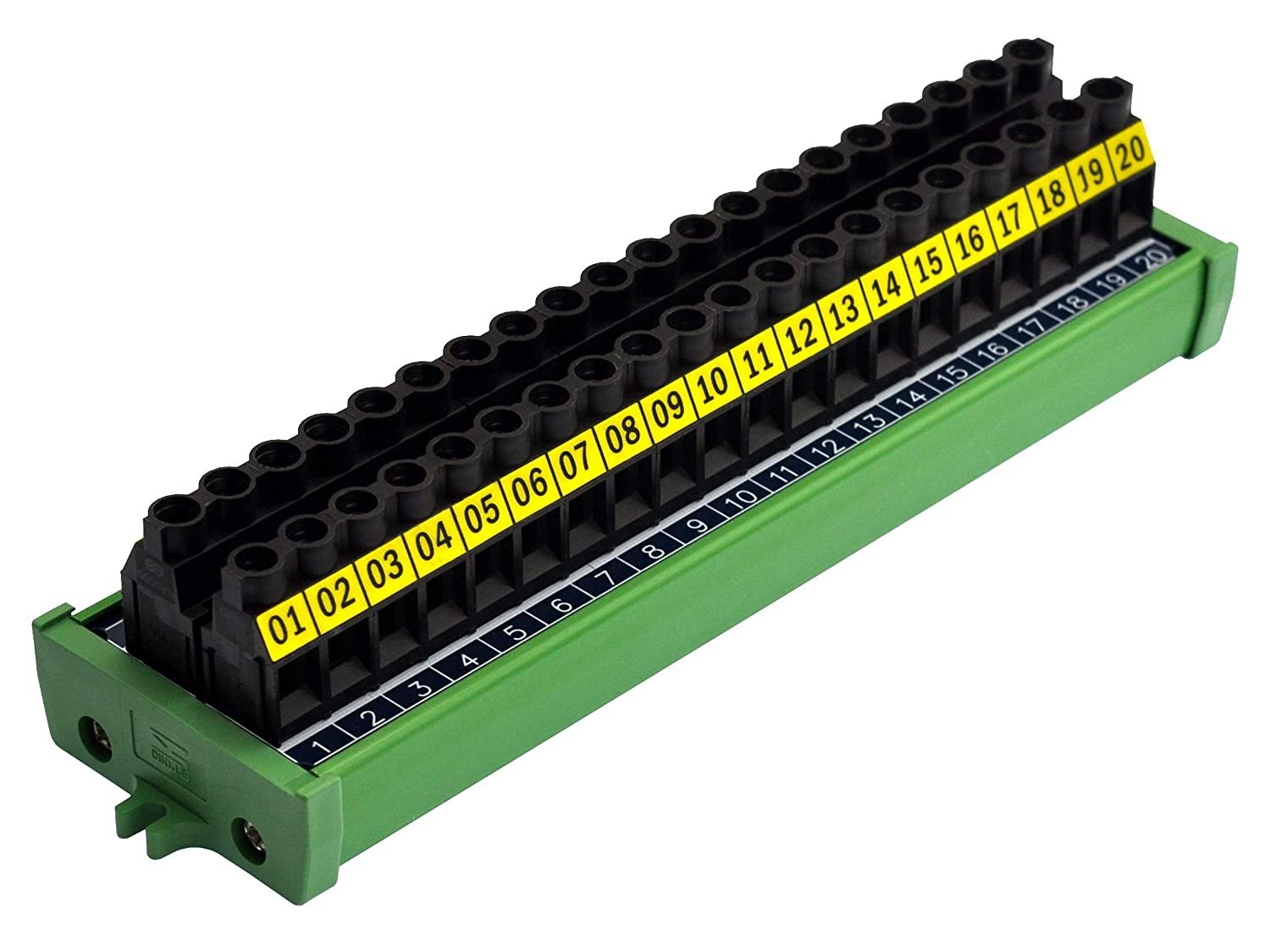

Screw Mount 30A/300V 20 Position Screw Terminal Block Distribution Module.
Terminal Block: Pitch 7.62mm/0.3", Strip length 8mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
Wire range 26AWG ~ 10AWG / 4.0mm square. Rated voltage 300V, rated current 30Amp(per position).

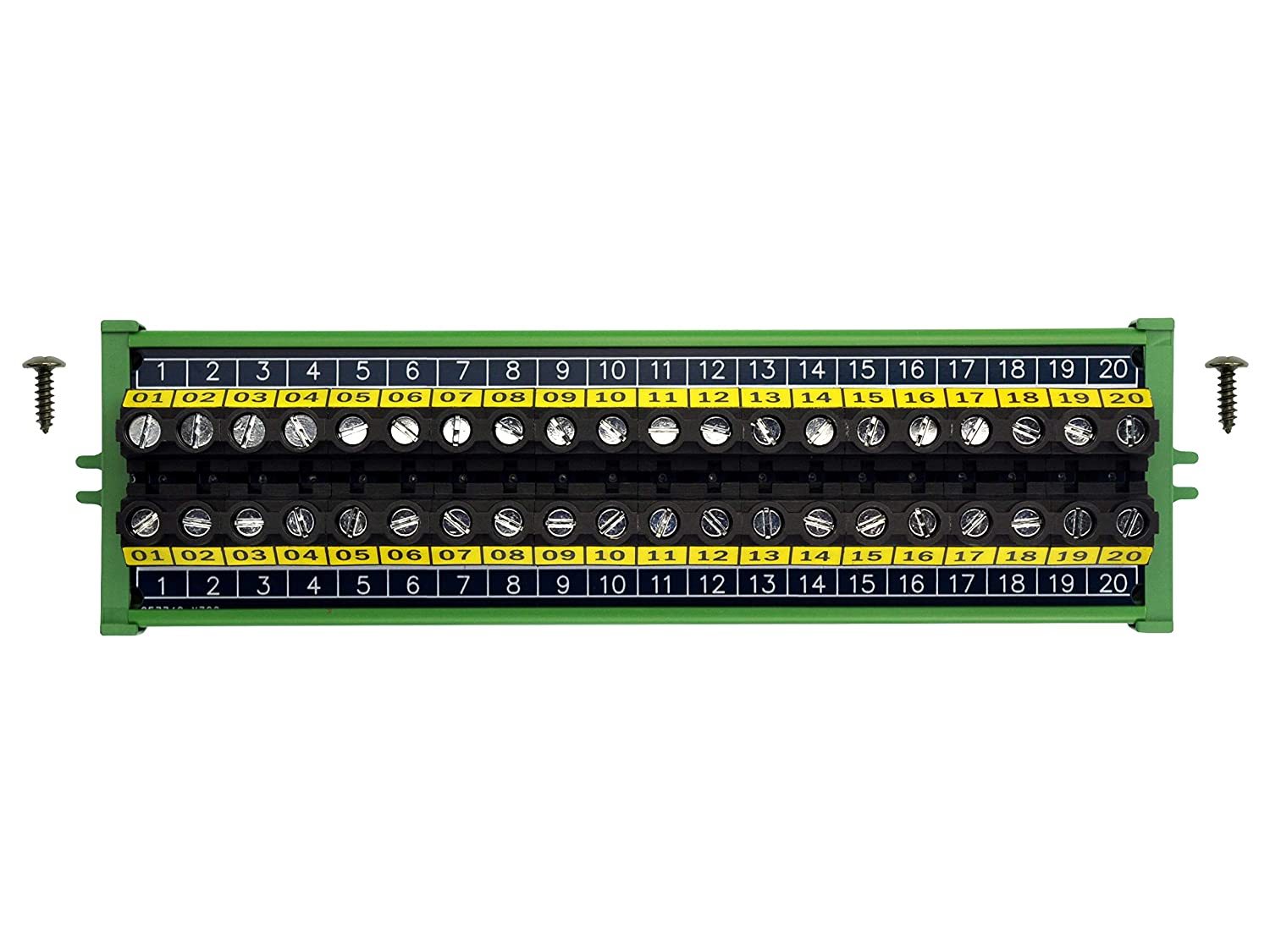

Taiwan High quality fireproof nylon material mount carrier(not China low quality carrier). Also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board.

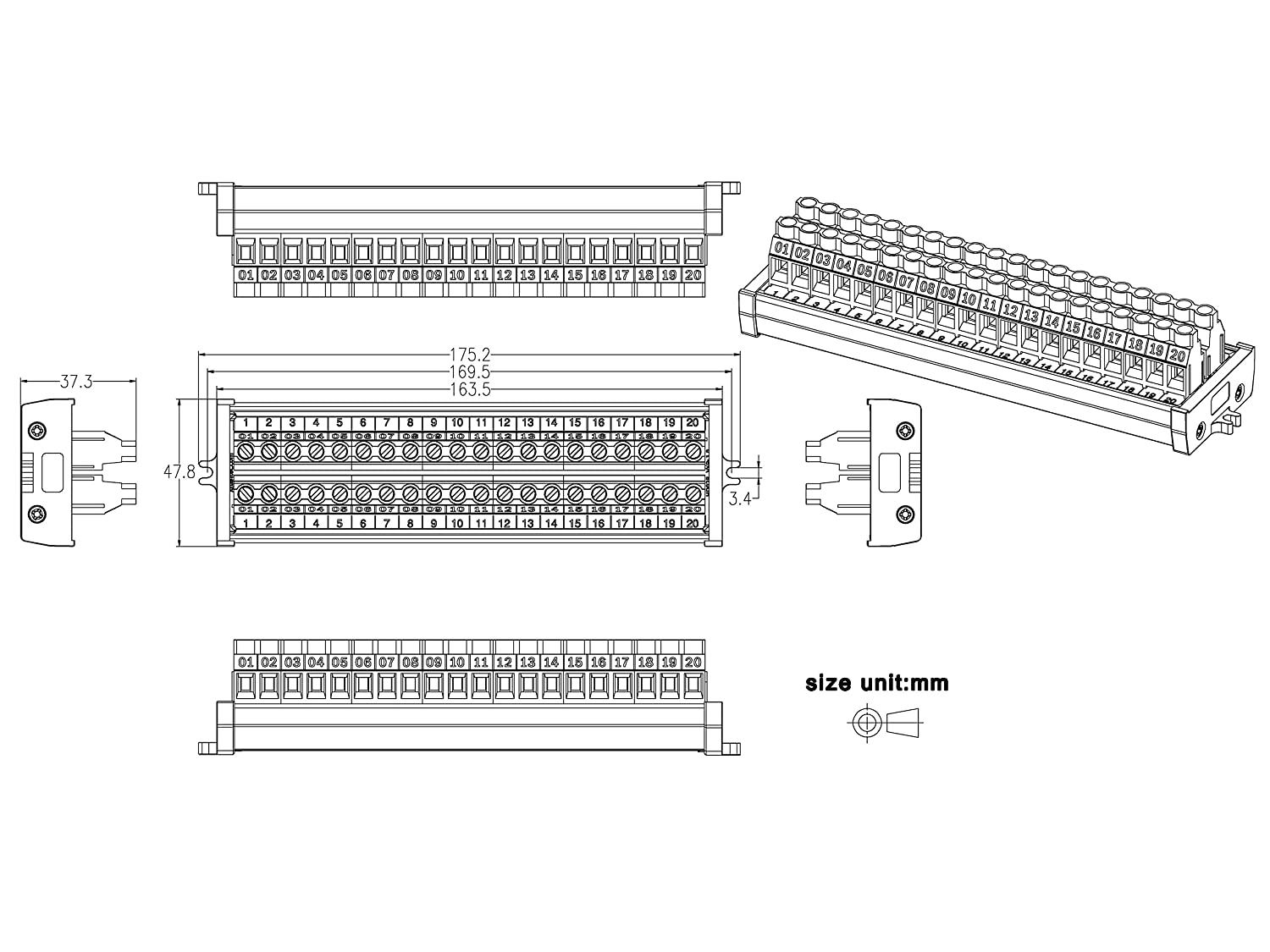

External dimensions: L175mm x W48mm x H37.3mm / 6.89" x 1.89" x 1.47"
