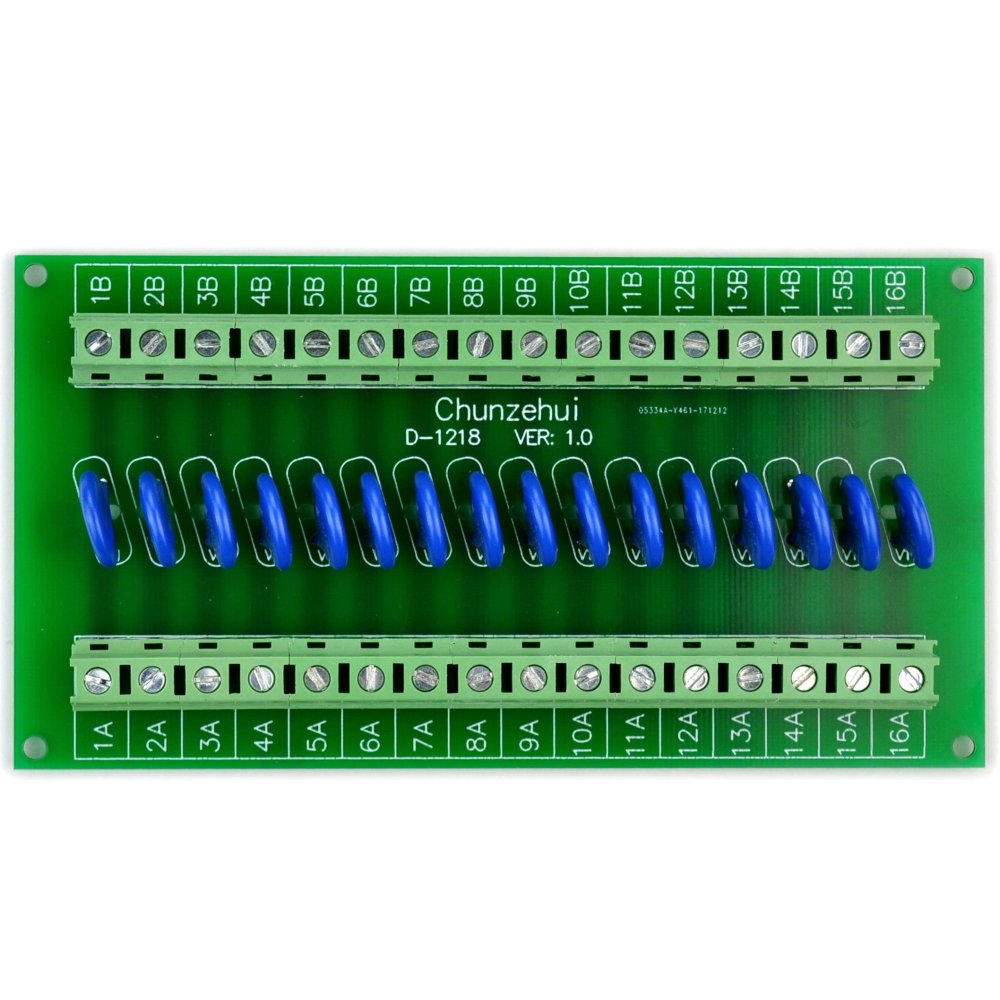

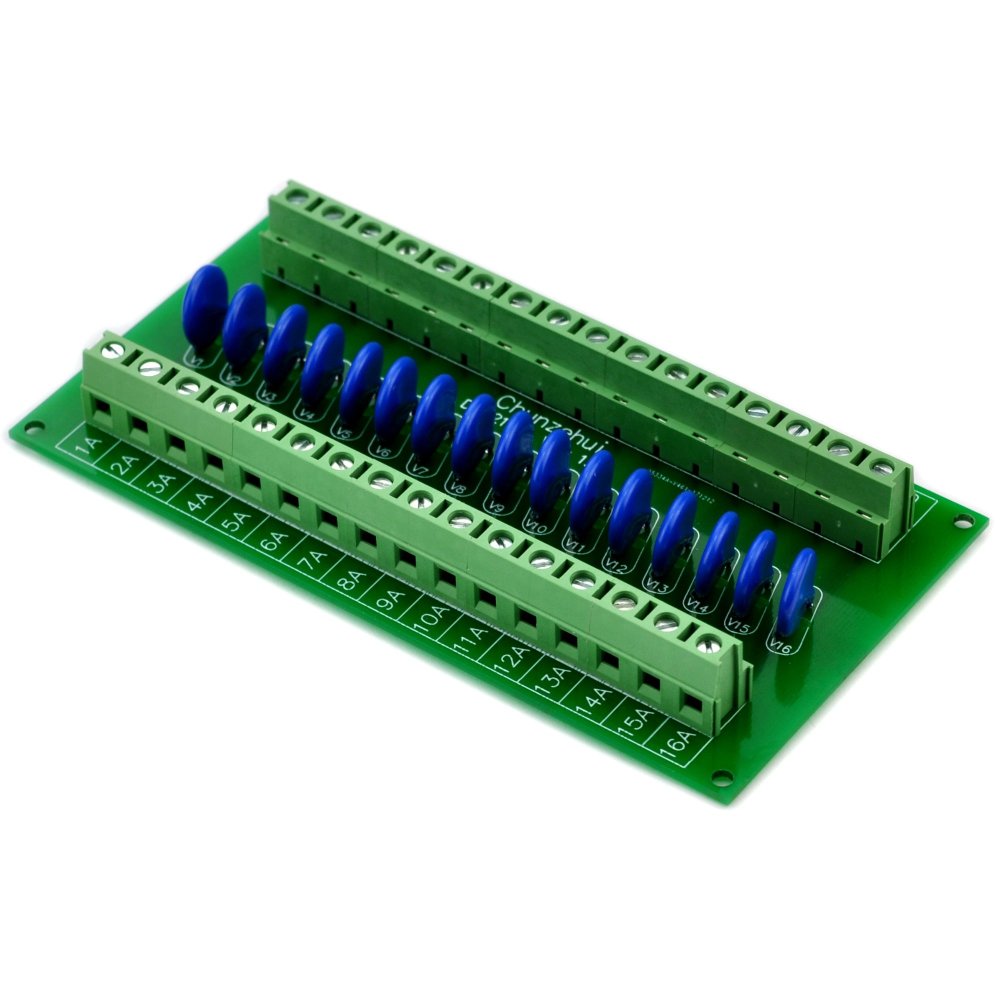

16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.

SKU: D-1218/48V
$24.00 $24.00
16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $24 = $24
save $0.00
Add to Favorites
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
1/1
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • 16 Channels Individual 60V SIOV Metal Oxide Varistor Interface Module, Surge Suppressor Protection SPD Board.
  • Description

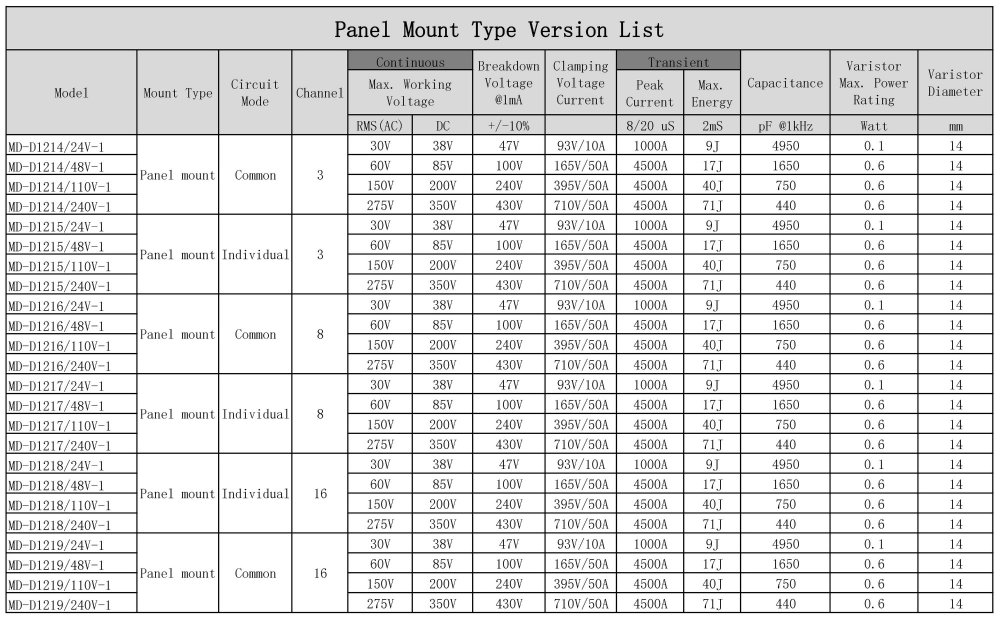

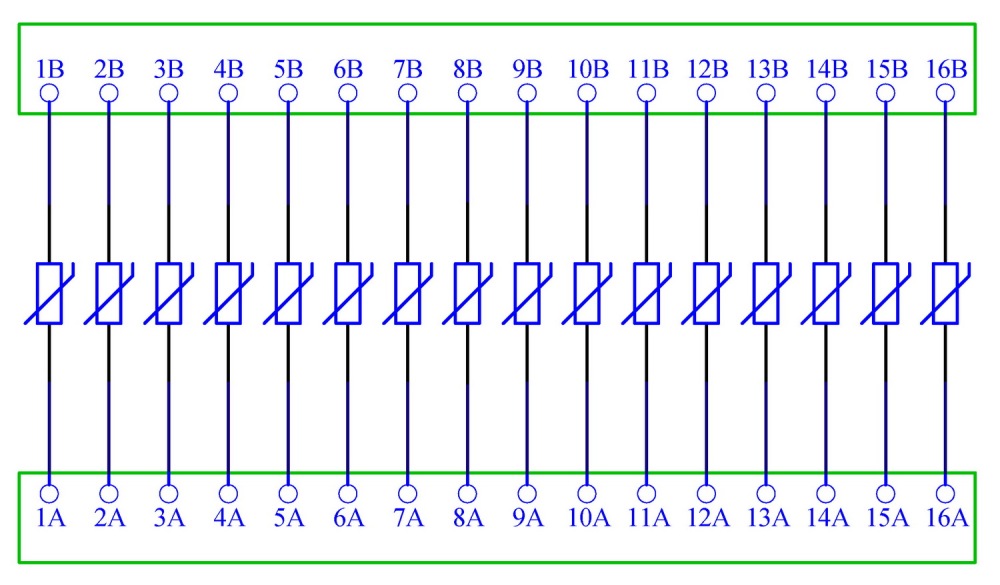

SIOV metal oxide varistor interface module, 16 channels individual connect.
Continuous maximum working voltage: 60VAC(RMS) / 85VDC.
Breakdown voltage(at 1mA): 100V, Clamping voltage: 165V(50A), Transient peak current: 4500A.
Ease of connection with the use of screw connection terminal blocks.
High quality FR-4 fiber glass PCB.

Datasheet:

Download
