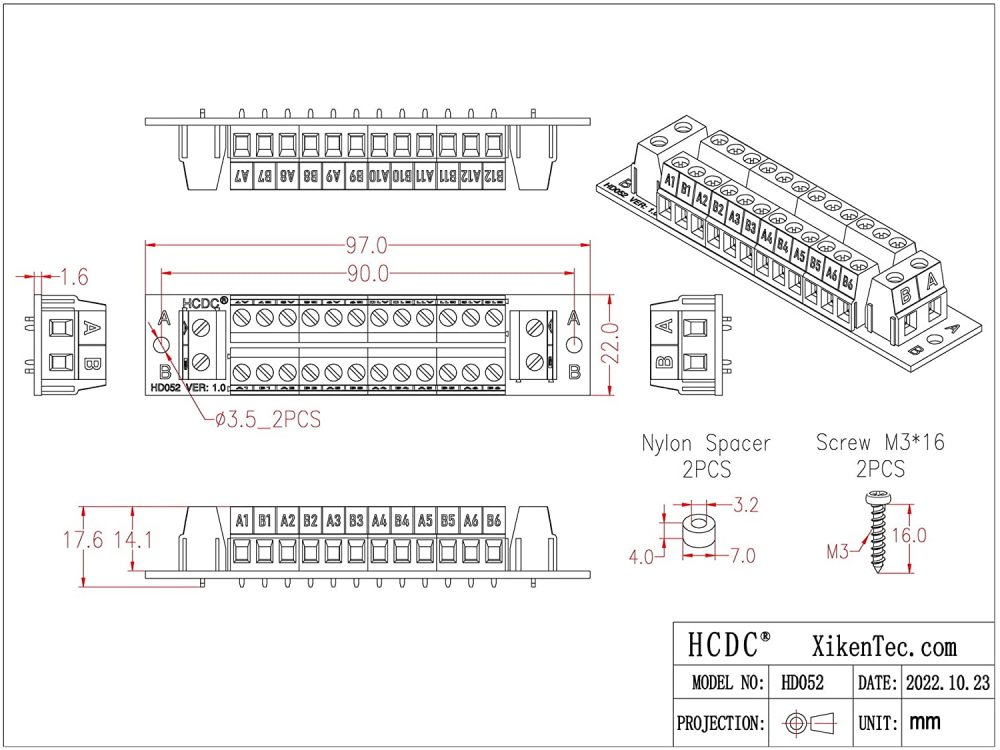

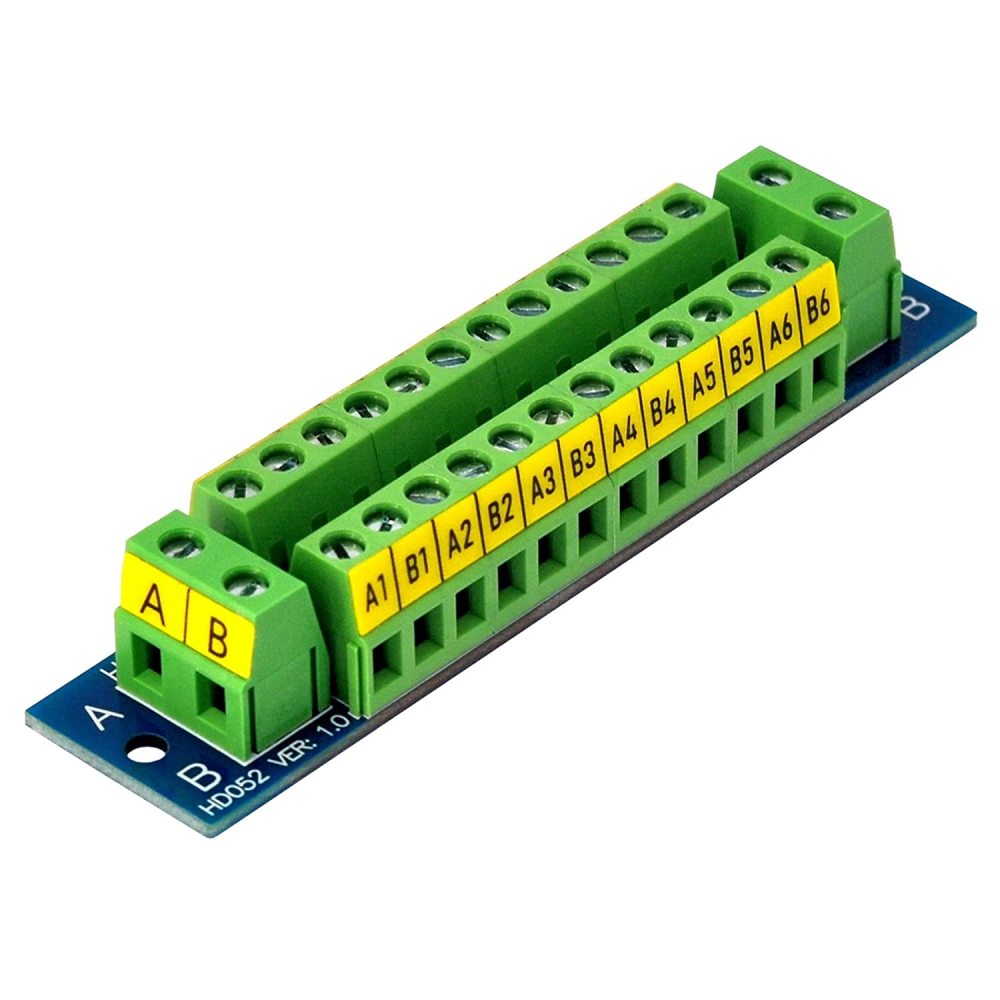

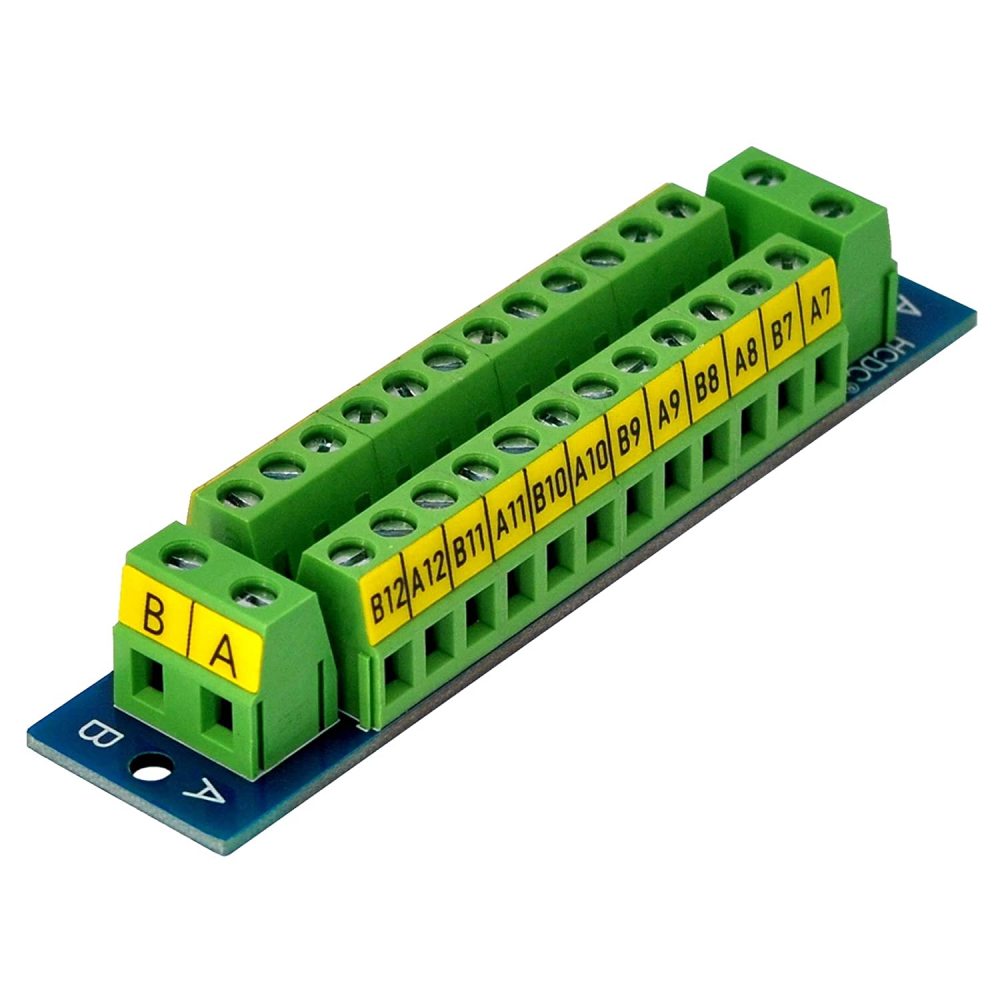

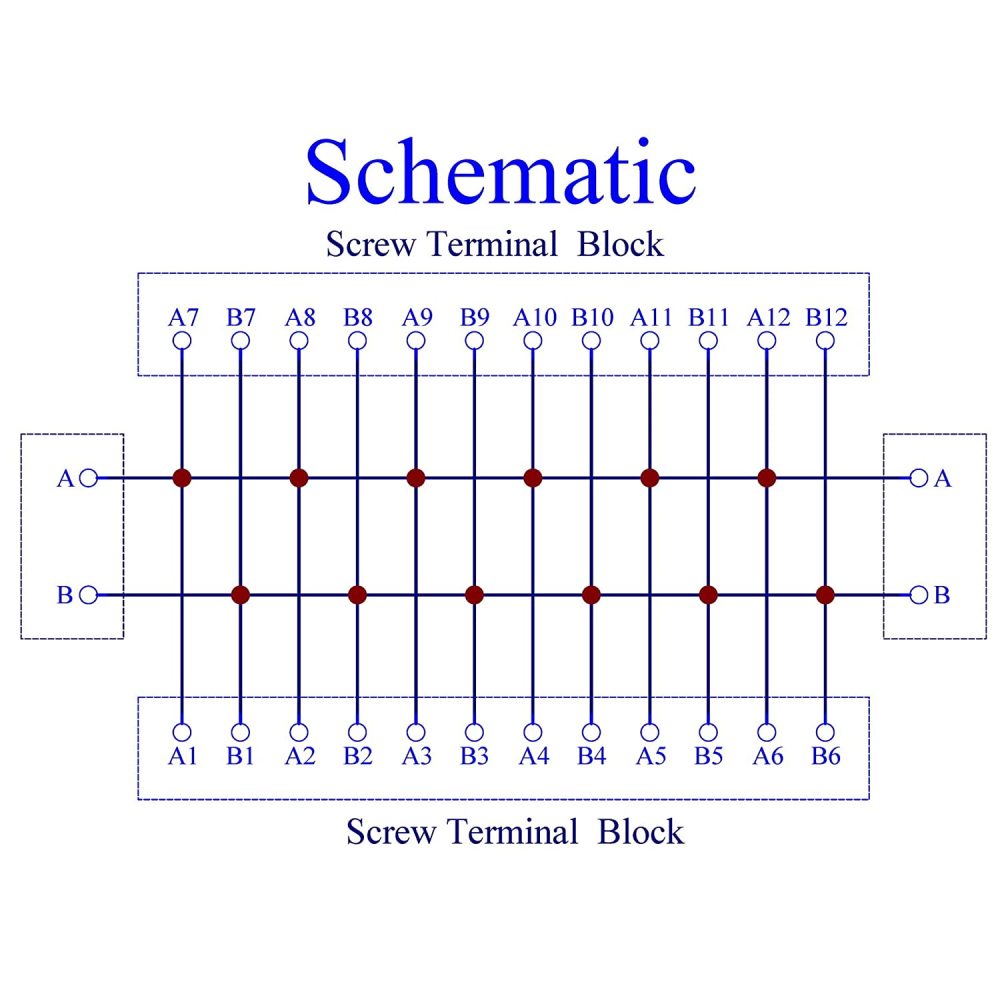

1, 16Amp 48V(max.) 2x12 position screw terminal block distribution module. Support for multiple module extension connections.
2, Rated current 16 Amp(total input or output), Maximum voltage 48V
3, A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
4, A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
5, UL CE CQC certified terminal blocks, UL CE certified FR-4 glass fiber PCB.

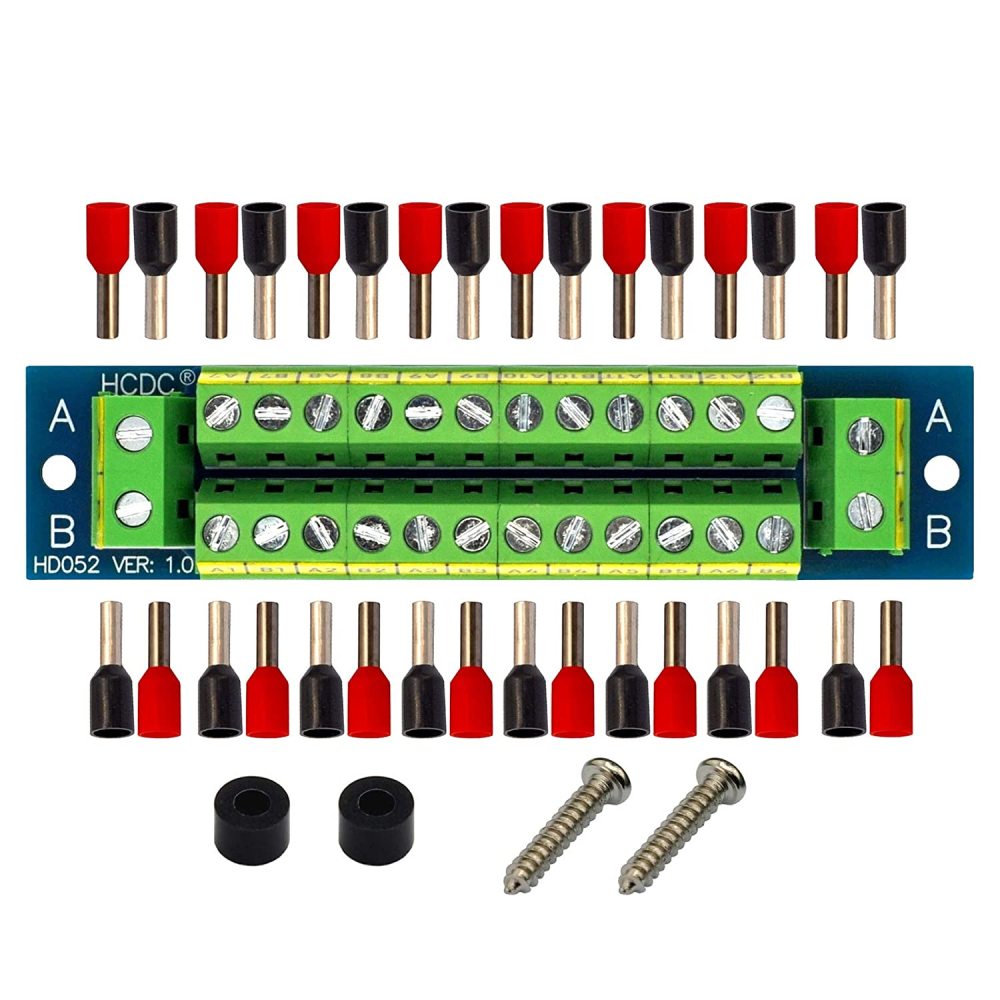

6, Packing list:
1x Terminal block module.
2x Screws.
2x Nylon spacers.
16x Red Nylon-insulated cord end terminal (support wire conductor 2.5 square millimeters max.)
16x Black Nylon-insulated cord end terminal (support wire conductor 2.5 square millimeters max.)
